China LED Flat Panel Light manufacturer

Ceiling Dimmable Led Panel Light 20mm Height 90% Lighting Area For Bedroom

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-EPS-PAL-6W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 100 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 6W Size: 90mm
Dimmable: Yes Install: Surface Mounted
Height: 20mm Lighting Area: 90%
High Light:

dimmable led ceiling panels

,

dimmable led flat panel lighting

Product Description



6w 12w 18w 24w Surface Dimmable LED Panel Light 20mm Height 90% Lighting Area





1. Technical Data Sheet:



Brand Name: Ado
Model Number: AD-EPS-PAL-6W
Power: 6W/12W/18W/24W
Color Temperature: 3000K,4000K,5000K

LED Chip Brand: Osram

LED Type: SMD2835

LED Quantity: 30pcs

LED Lumen: 22-24LM

LED Power: 0.2W

L70 life span: >50000Hrs
Beam Angle: 120 Degree
Dimmable: Customized
UGR: <19
Material: Aluminum+PC





2. Description:



Diammble led panel light is to use a dimmable driver to make led panel light brightness can be adjusted by dimmer. We have 3 different dimmable led panel light. they are triac dimmable led panel light, 0-10V dimmable led panel light, and Dali Dimmable LED Panel Light. Triac is used more popular, because it is compatible for the old dimmer, and don't need to change other connecting wires. 0-10V dimmable solution could control several lamps, and Dali dimmable is more intelligent, can control whole buliding's lamp.





3. Advantages:


1. Slim LED panel light use isolated constant current power supply ,wide input voltage 85-264V/AC,

output voltage :30-40VDC, more safer.
2. There is no mercury & lead, etc. harmful substance which is bad for environment.
3. It is energy saving, environmental protection and high brightness.And it can save 65% electricity compared with traditional grid lamp.
4. It can work instantly without flash,strobe and glare.
5. It won't be obstructed by wireless.
6. It is without infrared, ultraviolet and no heating effect.





4. Specification:


Light Source: LED
Item Type: Slim Surface Mounted LED Panel Lights
Warranty(Years): 2
Input Voltage(V): 85-265Vac
Lamp Power(W): 6
Lamp Luminous Flux(lm): 500
Lamp Luminous Efficiency(lm/w): 83
CRI (Ra>): 80

Size: 90mm
Working Temperature(℃): -20 - 40
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
IP Rating: IP33, IP20
Certification: CE RoHS
Place of Origin: Guangdong, China (Mainland)





5. Other Model Items:



Model Shape Color Size Lumen Chip
AD-EPS-PAL-6W Round W,WW,NW Φ90mm ±540LM SMD2835*30PCS
AD-EPS-PAL-12W W,WW,NW Φ145mm ±1080LM SMD2835*60PCS
AD-EPS-PAL-18W W,WW,NW Φ175mm ±1620LM SMD2835*90PCS
AD-EPS-PAL-24W W,WW,NW Φ225mm ±2160LM SMD2835*120PCS





6. Application:



The Place you need high intensity and save energy, such as hotel, meeting room, factory, office, house, shop mall, school, hospital and library etc, then you can choose our super slim LED panel light.





7. Features:



1. Fast&convenient installation

2. pretty & elegant and never unfading appearance

3. Excellent heat dissipation

4. Low maintenance cost

5. Enviromental Protection

6. Instant start, no flashing



8. Packing:

Packing Size 65*20*34cm
Packing Carton Netural
Inner Box Colorful
Packing Net Weight 14.3kg
Packing Quantity 100pcs
Packing Gross Weight 15.8kg


9. Delivery&Shipping:

1. Delivery time is 3-5days for samples, 7-10days for bulk order
2. Samples can be shipped by DHL/FedEx/UPS/TNT
3. Bulk order can be shipped by Sea



10. Why Choose Ado Lights?



A. Very Favorable and Attractive Price
B. High and Steady Quality
C. 100% New
D. Large Stocks (Stable Supply Ability)
E. All kinds of led slim panel light  for your choice
F. Small Quantity allowed (Trial Order Also Welcomed)
H. Prompt Delivery

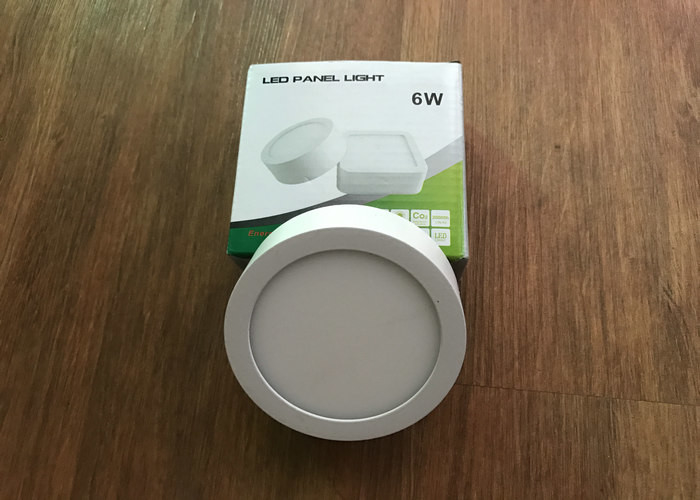

Ceiling Dimmable Led Panel Light 20mm Height 90% Lighting Area For Bedroom 0



Ceiling Dimmable Led Panel Light 20mm Height 90% Lighting Area For Bedroom 1
