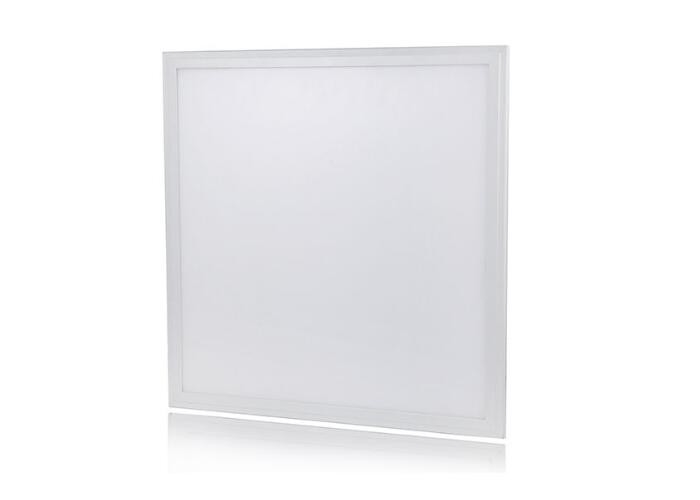

36 Watt Dimmable Led Flat Panel Light 24 Inch Pmma Waterproof Without Flicker

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: CE ROHS TUV UL SAA
Model Number: AD-PAL66-36W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 5 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Type: Dimmable LED Driver: Waterproof
LED Chip: SMD4044 Installation: Suspended Mounted
Certificate: UL/cUL Size: 24 Inch
High Light:

led ceiling panels

,

flat led ceiling light

Product Description


36Watt Flat LED Panel Light 24 Inch PMMA Waterproof No Flicker Dimmable UL/cUL





1. Description:



Ado LED Panel Light is our main products, and it can be classfied with 3 series, one is flat led panel light, second is dimmable led panel light, third is slim led panel light. Flat led panel light size is bigger than other 2 types, they are 300*300mm, 300*600mm, 300*1200mm, 600*600mm, 600*1200mm. These size are mostly for Europe country and China, also have CE RohS and TUV certificates.  And North America size is a little different, they are 303*303mm, 603*603mm, 303*1213mm, 603*1213mm, our North America flat led panel light is UL/cUL approved. Flat led panel light installation can be suspended, recessed and surface mounted. Dimmable is available.





2. 36W led flat panel light technical Data Sheet:



Wattage 36W
Model AD-PAL66-36W
Voltage AC85-265V
Dimension 300*600mm
Luminous Efficiency 100lm/W
CRI ≧80Ra
PF ≥0.9
LED Brand Epistar
LED SMD4014
Driver Isolated IC Constant Current Dimmable
Warranty 3 years
CCT 6000K
IP Ranking IP65
Material Aluminum
LGP PMMA 3mm
Beam Angle 120 degree
Installation Suspended
Dimmable No
Fixture color Sliver
LifeSpan 30,000 hours




3.  Advantages:



1. Adopt external IC constant-current isolation waterproof led driver, long lifetime and high efficiency.

2. Recessed, surface mounted and suspended installation are available.

3. Adopt Epistar SMD4014 LED chips, low light decay, high brightness; Using solid state and free maintenance LED source, fast start and long life span.

4. The radiator use special slim design and process, ensure the best heat sink cooling.

5. Panel light is easy to Installation, high light intensity, beam far distant, uniform light

6. World wide using input voltage AC85-265V,50-60Hz.

7. Green enviromental and energy saving





4. Features:



1. Waterproof IP65 could be used for outdoor lighting

2. Luminous efficiency is up to 100LM/W

3. Color temperature could be 3000K, 4000K, 6000K and RGB.

4. CRI could be 90Ra

5. Color changing could be 3000k to 4000K, and 4000k to 6000K.

6. Dimmable to change from bright to dark

7. 3 years warranty for quality ensurance





5. Other Models:



Model Size Lumen
AD-PAL33-12W 300*300mm*11mm 960LM
AD-PAL33-18W 300*300mm*11mm 1080LM
AD-PAL36-18W 300*600mm*11mm 1080LM
AD-PAL36-24W 300*600mm*11mm 1920LM
AD-PAL66-36W 600*600mm*11mm 3240LM
AD-PAL66-48W 600*600mm*11mm 4320LM
AD-PAL312-48W 300*1200mm*11mm 4320LM




6. Our Services:


1. We supply OEM and ODM service, and only focus on high quality products.

2. 3-5 working days for samples; 15-20 working days for bulk orders normally.

3. High efficiency pre-sale and after-sale team, your complaints will be solved with 24 hours by our professional sales team.

4. Creative and powerful R&D team, new products will be launched every season.

5. Respobsible quality control deparment inspect and test all material and prodcuts before shipping.
