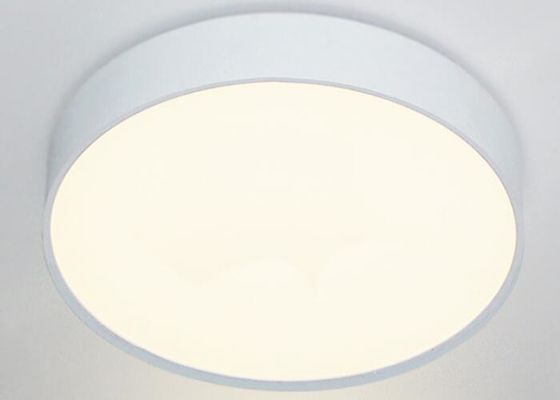

32w Led Surface Mount Light , 4000k 350mm Led Round Flat Panel Light 0.9pfc

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-NMZ-PAL-32W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 32W Diameter: 350MM
Height: 60mm Warranty: 3 Years
CCT: 4000K PFC: 0.9
High Light:

slim led ceiling light

,

ultra slim led panel light

Product Description


32W LED Slim Panel Light Round Surface Mounted 4000K 0.9PFC White 350mm


1. Technical Data:



LED Power 32w Light Source LED EDISON
System Power 36w Driver MEANWELL
CRI 80Ra / 90Ra Voltage 100-200V
CCT 3000K / 4000K / 6500K Luminous 3360LM
Beam Angel 120 Degree Product Size 350*60mm
Life Hours 50000hrs Warranty 2 Year





2. Description:



LED Slim Panel Light can be widely used for many places, such as show rooms, meeting rooms, and office Because it has many great advantages, firstly, they are long life, secondly, can change in various ways, third, strong vibration resistance.



1. LED slim panel light long life
LED theoretical life up to 100,000 hours. If calculated by 8 hours per day, its theoretical life span is more than 27 years. The theoretical life of the CPL lamp cup is even more than 100,000 hours.



2. LED slim panel lights strong vibration resistance
In LED panel lights, the LED light source is a high-rigidity resin luminous body instead of a tungsten glass and is not easily damaged. Therefore, its anti-vibration force is relatively high, and the ambient temperature is highly adaptable.



3. LED slim panel light changes in various ways
LED panel light can adjust the light color according to different needs and environmental changes, not only does not produce radiation and glare, but also can protect vision, light color is more gentle.





3. Specification:



Item Type: Slim LED Panel Lights
LED Light Source: EDISON
Warranty(Years): 3
Input Voltage(V): AC85-265V
Lamp Power(W): 32
Lamp Luminous Flux(lm): 3360
Lamp Luminous Efficiency(lm/w):105
CRI (Ra>): 80
Color Temperature(CCT): 3000 / 4000 / 6500K
Working Temperature(℃): -20 - 40
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
IP Rating: IP20
Certification: CE, RoHS
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM
Product name:
Application: House ,Hotel, shopping mall, and other indoor lighting application
Shape: Round
Color: White / black / gold / silver
LED Power/System Power: 32W / 36W
Type: Neutral light Color Ceiling Panel Lights
Dimension: W350*H60MM
Beam angle: 120°
Driver: Meanwell





4. Features:



1. Modern Design: Clean lighting plain effect, Surface mounted base, seamless stamping steel with black or white coating, High Base with led driver inside
2. Modular design, customer can order lamp base according installation situation

3. Edison Chip: Low decay rate of luminance, CCT: 3000K, 4000K 5000K and 6000K, CRI>80Ra warranty
5. LED Driver: Stable performance, isolated wide voltage IC constant current led driver, 3 years warranty





5. Quality Control:



1. 100% of the lamps will be tested and passed all QC procedures before shipping

2. Defective items will be compensated immediately or in next order.

3. 500 times on and off testing after production finished.

4. Raw material full check before production.

5. 48 hours aging test after good is finnnished





6. Warranty:



We provide 3 years warranty for our surface mounted slim led panel light, if any defective products in warranty period, we will repair or replace for free. If not in warranty period, we will help you find out the defective reasons, if only need to change new parts, we will send you new parts, and you should pay the new parts cost. If it is totally can't use again, we will offer you 10% discount to buy a new product from us.



32w Led Surface Mount Light , 4000k 350mm Led Round Flat Panel Light 0.9pfc 0
