Dimmable DC12V 5W LED Spot Bulbs 3000K SMD3030 50mm 45 Degree 450LM

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-SP05-5W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 100 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Voltage: DC12V Power: 5Watt
Lumen: 450LM Beam Angle: 45 Degree
Color: 3000K Diameter: 50mm
High Light:

energy saving light bulbs

,

spotlight light bulbs

Product Description



Dimmable DC12V LED Spot Bulbs 5W 3000K SMD3030 50mm 45 Degree 450LM





1. 5W LED Spot Bulb Specifcation:



Model number AD-SP05-5W LED Lumen 110LM/W
Power 5W Color temperature(K) 2700K 4000K 6000K
Lumen 450LM CRI(Ra) 80Ra
Input voltage DC12V Shell material Aluminum
Base MR16 Lamp Size(mm) 50*57mm
LED brand Epistar IP rating IP20
LED light source 1W Life span(hour) 30000 hours
LED Quantity 5pcs Warranty 2 years
Beam Angle 45 degree Place of Origin China
LED Type SMD3030 LED Driver IC constant current
Certificate CE RoHS Dimmable Yes





2.  Packing Inforrmation:



We use white box or color box, each lamp is with blister packing, then put into inner box. And 10pcs inner box was packaged by a kraft box. The last, 10pcs kraft box was packaged by a carton box.



Packing Size Quantity
28*28*30cm 100pcs
54*28*39cm 200pcs
54*33*37cm 300pcs





3. Features:



Voltage AC220V, AC110V, AC85-265V, DC12V, AC12V
Power 3W, 4W, 5W, 7W
Color temperature 2700-3000K, 4000-4500K, 6000-6500K
LED Type COB 1W, 3W, 5W and 7W, SMD5050, SMD2835 and SMD3030
CRI 80Ra or 90Ra
Dimmable Dimmable and non dimmable version are optional
Beam Angle 30 degree, 38 degree, 45 degree, 60 degree, 120 degree
Housing color white, black, grey, sliver
Base GU10, MR16, E27, GU5.3
Material Aluminum, Ceramic, PC.
Packing Neutral white box, Neutral color box, Customize box.
Warranty 2 Year warranty and 3 years warranty





4. Description:

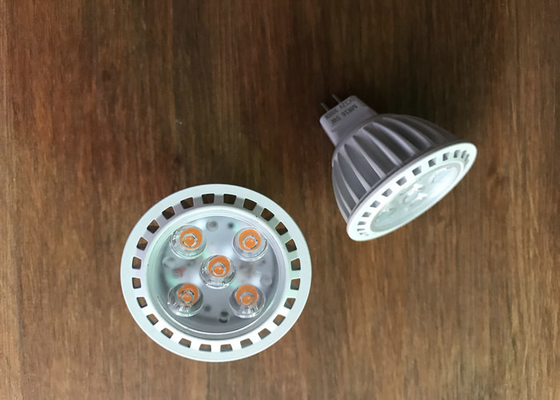

This LED Spot Bulbs are made of led driver, led chip, aluminum housing, base, and optical lens, each part is important, which can consist of a good quality product.



1. This LED Spot bulbs Light housing color is white, material is die-casting material. The housing color also can be black.
2. LED Driver is Isolated IC Constant Current Wide Voltage AC85-285V, which is more safer. prevent from short circuit. It is very intelligent and stable project.
3. LED Chip is from Taiwan Epistar, it is SMD3030, The led light souce lumen is 100LM/W, power is 1W.
high brightness with low decay. It brings high efficiency of our led spot bulbs, up to 5W for 400LM.

4. The aluminum housing bring good heat dissipation, coolling effect is great.

5. The base is MR16, also can make GU10, E27, international base, can replace old lamps.

6. Optical lens make the beam angle is different, can choose from 30 degree, 45 degree, 60 degree,





5.  Advantages:



1. New high efficiency constant current drive for transparent led candle lighting

2. Energy-saving: Saving 80% power than traditional incandescent lamp

3. Easy to installation, shock proof and concussion-proof
4. No danger of broken glass

5. Solid-state, high shock / vibration resistant

6. Environmental-friendly: No UV or IR radiation, low heat radiation, mercury free, no polluting materials in the process of using;

7. Made of super brightness LED from quality Taiwan and USA chips. And special optical design.
8.The best service for transparent led candle lighting .




6. Application:


1. Basic commercial lighting
2. Hotel lighting, shopping lighting

3. Home lighting

4. Holiday decaration lighting

5. Store lighting
