China LED Flat Panel Light manufacturer

4000k Triac Dimmable Led Panel Light Round Ip44 Rank With Sliver Housing

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-ERP-PAL-18W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 18W Voltage: 85- 265V AC
LED Brand: Taiwan Epistar CCT: 4000K
Housing Color: Sliver Housing Material: Alumium
High Light:

dimmable led ceiling panels


dimmable led flat panel

Product Description


Triac Dimmable LED Panel Light round 4000K aluminum sliver housing IP44 80Ra



1. Description:


Dimmable LED Panel Light now is used very widely, and the triac dimmable led panel light is used more common. It is using a dimmable led driver to make the panel light lamp's light brighness can be adjusted by the original dimmer and switch. The led panel light can be brighter or darker by the dimmer. Which is easy to install, no need to change other wires. So the dimmable led driver quality is very important, it is the key point to decide the led panel light's quality and long life. Our Dimmable led panel light is adopting high quality dimmable led driver, which can pass CE, TUV and SAA.



2. Specification:


Model: AD-EPR-PAL-18W

Input Voltage: AC85-265V

Power: 18W

LED Brand: Taiwan Epistar

LED Chip: SMD2835

LED Type: 0.2W

LED Lumen: 24-26LM

LED Quantity:90pcs

CCT: 3000K / 4000K /6000K

Lumen: 1550LM ± 100 LM

Color Rendering Index: 80RA

Material: Aluminum(fixture)+PMMA(LGP)
Beam angle: 120°
IP rank: IP44
Operation temperature: -20℃~+60℃
Lighting Distance: 1-4meters
Mounting height: 2-3meters
Place of Origin: China
Approval mark: CE RoHs


3. Electrical Parameters:


Light guide plate(LGP) brand:Japan Mitsubishi
LGP thinkness: 3mm
LGP technology: Dot Laser
LGP light transmittance: 90%
Lifespan: (LM80) 30000H
Size(mm): φ175*H8mm
Cutout size(mm): φ155mm
Input Voltage: AC85-265V 50/60Hz
Power factor: PF≧0.9
Driver :Smart IC Isolated constant current
Rated lifetime: 50.000 hours
4. Advantages:


A. Long life span

B. Green environment

C. Energy Saving

E. High Brightness

F. Easy Installation

G. Top technology

H. High configuration



5. Packing&Delivery
Packing Size 39*24*38cm
Packing Qty 20pcs
Packing Gross Weight 8.2kg
Shipping method DHL / Fedex / TNT / Air Shipping / Sea Shipping
Shipping time 3-7 days for express/air shipping, one month by sea
Samples Delivery Time 3-5 days
Official Order Delivery Time 16 work days
6. Features:

(1) Ultra slim, good heat, long life, low cost of maintenance

(2) 120 degree full light angle high lumen

(3) Energy-saving and environment-friendly Led Lamp

(4) Intelligent constant current IC driver, stable project, long lifespan ensurance

(5) Slim design, good looking, easy installation

(6) High quality with CE,RoHS / TUV and other certificates.



7. Trade Terms:


1, Payment :L/C, T/T ,western Union, Paypal
2, Sample can be supplied
3, Shipping freight are quoted under your requests
4, Shipping port: Shenzhen, Guangzhou, Zhongshan, Mainland China
5, Discounts are offered based on your quantities



8. FAQ:


Q1: Are you factory?

A1: Yes, welcome to visit our company and factory.


Q2: What is the warranty?

A2: At least 3 years warranty.


Q3: What is the shipping way?

A3: DHL, UPS, TNT, EMS, FedEx. By sea


Q4: What is the payment terms?

A4: T/T, L/C


Q5: Can we design customer packing?

A5: Yes, we can customer’s own packing


Q6: Can we add our logo on super bright led panel light?

A6: Yes, you can add your logo on super bright led panel light.


Q7: Can we customize super bright led panel light?

A7: Yes, OEM&ODM


Q8: How do you ship the product and how long does it take?

A8: DHL/UPS/FEDEX/TNT; 3-5 days, by air flight, 5-7days, by sea, 15-30days

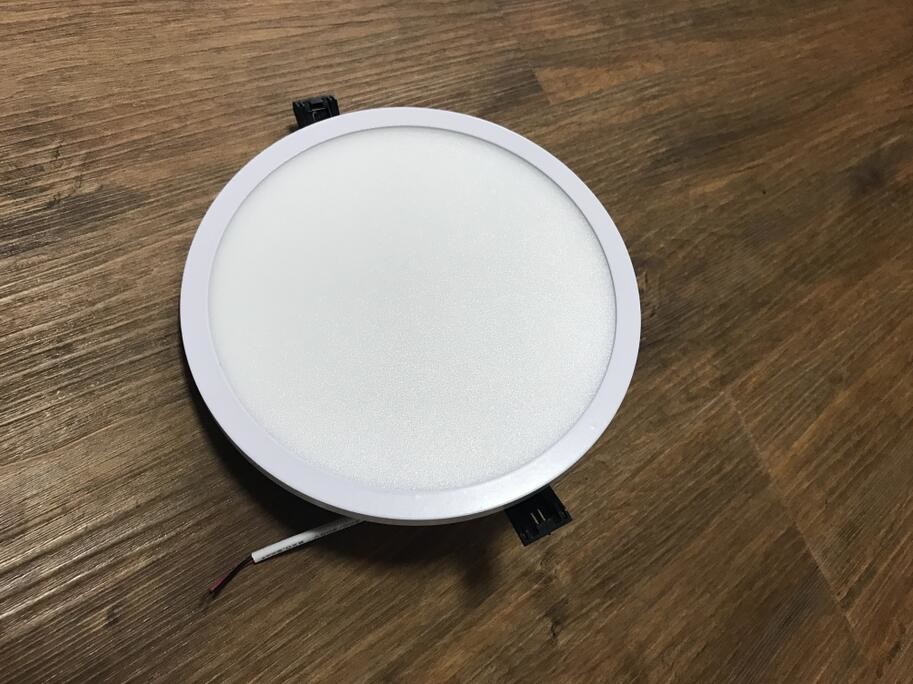

4000k Triac Dimmable Led Panel Light Round Ip44 Rank With Sliver Housing 0

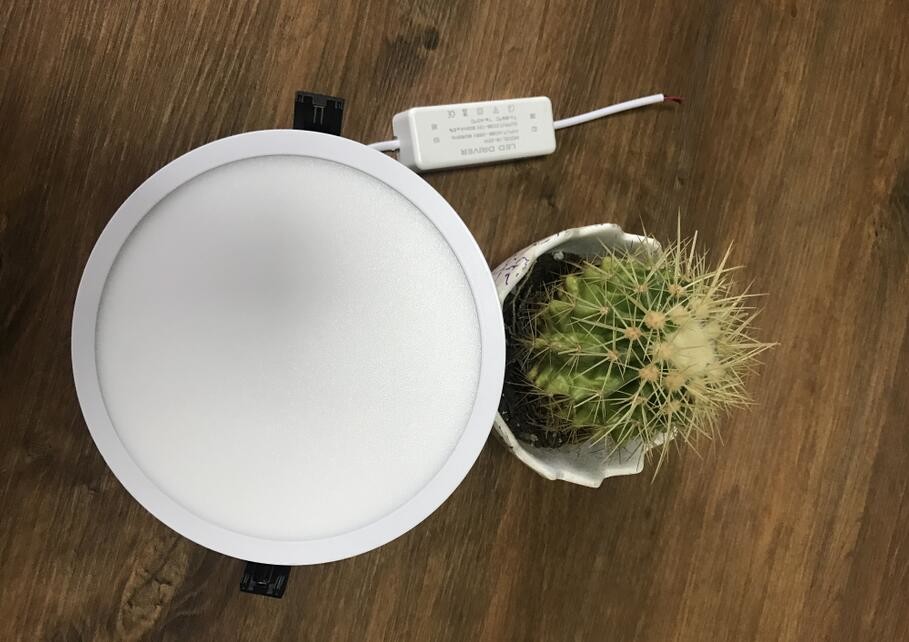

4000k Triac Dimmable Led Panel Light Round Ip44 Rank With Sliver Housing 1
