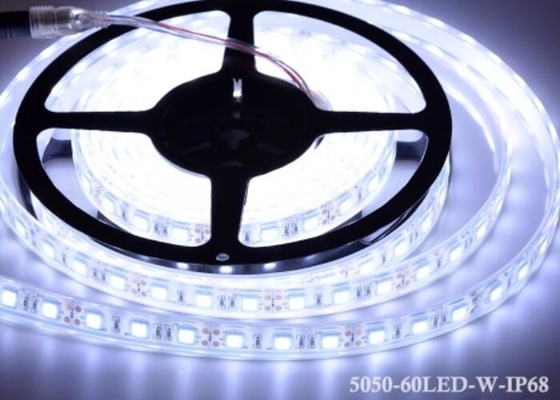

6000k 14.4w Led Flexible Strip Lights Ul Listed With 120 Degree Beam Angle

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS UL
Model Number: A5050-60-V12
Payment & Shipping Terms:
Minimum Order Quantity: One Roll
Price: Negotiation
Packaging Details: 50 Rolls One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 meters per day
Contact Now

Detail Information

LED Chip: SMD5050 LED Brand: Epistar
LED Qty: 60LED CRI: 80Ra
Voltage: DC12V Certiticate: UL Listed
High Light:

led flexible tape light

,

waterproof led light strips

Product Description



DC12V / 24V LED Flexible Strips SMD5050 RGB IP20 14.4W 5 meters One Roll







1. LED Strips Technical Data Sheet:



SMD Type 5630 / 5050 / 4014 / 3528 / 3014 / 2835 / 2216 / 335
Color Options Warm White (2800-3000k),Natural White(4000-4200k),White(6000-6500k), Cold White(10000-12000K), 2000k,RGB, RGBW, RGBWW, Red, Yellow, Blue, Green, Amber, Pink, Violet, Purple
Lumen 7-8lm / led, 11-12lm / led, 22- 26lm / led, 26-28 lm / led
LED Quantity 30,60,72,90,120,144,168,240,300 leds/m
Voltage DC3V, DC3.6V, DC4.5V, DC5V,DC12V, DC24V
Max Power 4.8W / M, 9.6W / M, 12W / M, 14.4W / M, 15W / M, 24W / M
PCB Width 5mm / 6mm / 8mm / 10mm / 12mm / 15mm / 20mm / 58mm
CRI(RA) CRI>80, CRI>90, CRI>95
Waterproof Rate IP20 / IP65 / IP67 / IP68 Optional
Certificate UL, CE, RoHS
Warranty 1 Years / 3 Years /5 Years
Package 5m / roll, 100roll / CTN
Quality Grade PRO / LUX / Budget
Customized Service available





2. Description:



Variables in strip lighting consist of water resistance, color, adhesives, choice of SMD, driving voltage, and whether it is constant current or constant voltage layout.

Uncoated LED tape is not considered to have any resistance to water ingress, but may be rated as IP20 for some physical ingress resistance. Such tapes are generally low voltage and safe for skin to touch but can be shorted by fine metal objects. Water resistant strip lighting is covered in a heat conducting epoxy or silicone to protect the circuitry from direct contact with water, and can be rated IP65, IP67, or with suitable sealed connections IP68. Both coated and uncoated LED tapes have a two sided adhesive backing to stick to walls, desks, doors, etc.





3. Products Specification:


Light Source: LED

Type: Light Strips

LED Light Source: SMD 5050

Type: Flex LED Strips

Input Voltage(V): DC12V/24V

Lamp Power: 14.4W/M

LED Chips Quantity: 60pcs one meter

Lamp Luminous Flux(lm): 20-28LM

CRI (Ra>): 80

Color Temperature(CCT): 2700-7000K / RGB

Working Temperature(℃): -20 - 60

Working Lifetime(Hour): 500000

Lamp Body Material: FPC

Certification: CE, RoHS, UL

Emitting Color: White/Warm White/Natural White/RGB

Place of Origin: Guangdong, China (Mainland)

Brand Name: ADO

Model Number: A-5050RGB-V12

Application: Decorative Lighting

IP Rating: IP20 / IP65 / IP67 / IP68

Beam Angle: 120 Degree

PCB Color: White / Yellow / Black

Warranty: 3-5 years

Width: 5mm 8mm 10mm 13mm 15mm 20mm 58mm





4. Advantages:



1. soft, can curl like a wire.
2. can cut and delay.
3. bulbs and circuits are completely covered in flexible plastic, insulation, waterproof performance, safe use.
4. strong weather resistance.
5. not easy to break, long service life.
6. easy to produce graphics, text and other modeling;





5. Application:



LED Flexible Strips has been widely used in buildings, bridges, roads, gardens, gardens, floors, ceilings, furniture, cars, ponds, underwater, advertising, signboards, signs and other decorative and lighting.





5. LED Strips Production Process:



SMT - Testing - Welding - Aging Test - IP20 - Drop IP65 - Hollow Tube - IP68 - Stick 3M adhesive - Test- Inspection- Package





6. LED Flexible Strip lights with installation notes


LED Strip wiring method: LED Strips with a general voltage of DC 12V, so you need to use the switching power supply, the size of the power supply according to the LED lamp and the connection length to determine. The wiring of the 5050 SMD LED lamp with a single color is to distinguish the positive and negative poles. Generally, we provide a good power plug for welding, directly plug into the power supply of the lamp we provide, and then put all the LED lights with input power. In parallel, unified power supply from the main switching power supply. LED lamp with installation note: Controller connection mode LED Marquee Strip and RGB Symphony Strip need to use the controller to achieve the changing effect when wiring.
