China LED Flat Panel Light manufacturer

2000lm Black Ceiling Track Lights 20w Heat Dissipation For Automobile Display

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-AD-TL-20W-D
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 10 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 1,000 pcs per day
Contact Now

Detail Information

Power: 20W LED Chip: Cree COB
Material: Aluminum Shell Color: Black
Lumen: 2200LM Driver: Dimmable
High Light:

ceiling track lighting


led track spotlights

Product Description

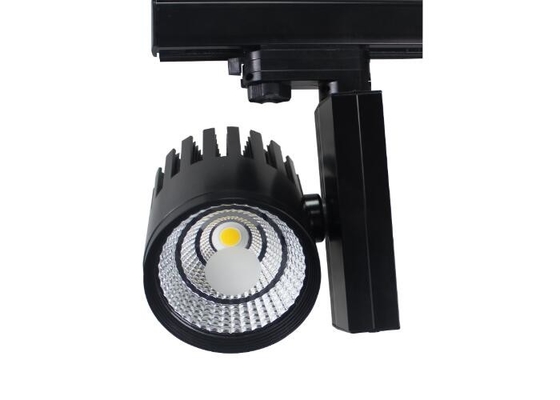

Cree COB 20W LED Ceiling Track Light Dimmable 2000LM Black Aluminum 3 Wires



1. LED Track Light Specification:


Input Voltage: AC85-265V
Input Power: 20W
LED: 1 pcs 20W Cree COB
Luminous Flux: 2000-2200LM
Color Temperature: 2700K-6000K
CRI: 80Ra (90Ra can customize)
Lifetime: 40,000-50,000hours
IP Rating: IP20
PF: 0.95
Housing Color: Black / White / Sliver
Beam angle : 15°, 24°, 38°, 60°



2. LED Track Light Advantages:


1. A unique patented heat sink (temperature below 50 degrees)
2. The light source adopts Edison's super bright LED1W or 3W, brightness of 1W: 110lm/W, lamp bead working current is 350mA

3. Optional lens: 15 / 24 /38 / 60 degree lens optional
4. The main material: high pressure die-cast aluminum, superior heat dissipation, IP65 waterproof
5. Throw distance: 3-4M
6. The built-in switch power supply, wide power input range: 90-250VAC, can also be directly made low voltage 12V, 24V, 36V.
7. Constant current drive, life up to 30000 hours
8. Can do red, green, blue, yellow, white monochrome cast light, colorful cast light, can also be used DMX512 control and automatic color change function.



3. Description:


ADO LED Ceiling Track Light is made of led chips, led drivers, aluminum heat sink, respirator, adaptor and optical lens, each part material is very important, please see the following description for each material:


1. Cree COB Chip, CRI>80Ra or 90Ra, High Bright 100-120LM/W
2. The power supply: Lifud, , Osram, Tridonic led driver avaiable, PF>0.9, we also can make 0-10V or dali dimmable or triac dimmable function for option.
3. Heat Dissipation: Adopt 6063 aluminum material, good cooling effect, housing color also could be white, black and sliver for your option
4. Respirator: 350 degree rotable.
5. Adaptor: 2 wires, 3 aires, and 4 wirees adaptor for your choice.
6. Optical Lens: The beam angle is 15 degree, 24 degree, 38 degree, and 60 degree.

7. Power: 10W, 20W, 30W, 40W, and 50W could be dimmable



4. Applications:


LED Ceiling Track lights are generally used as a specific spotlight. General commercial applications, such as shopping malls (clothing stores, furniture stores and other brand stores), automobile display, jewelry, star hotels, branded apparel, high-end clubs, museums, museums, chain stores, brand offices, professional windows, counters And other key lighting places.



5. LED Track Light Technical Data:


Model AD-TL-20W-D
Normal Voltage AC 85-265V
Power 20W
Dimension(L*D*H) 210*100*123mm
Lumens 2000-2200LM
CRI >90Ra or >80Ra
CCT 2700K-6000K
Finish white and black finish for option
Beam Angle 15 Degree, 38 Degree, 60 Degree
Adaptor 2 wire / Safety 3 wire / Europe Standar 3 phase 4 wires
Housing Aluminum+reflector
Dimmable Yes
Lifespan 30000hours
Certificate CE,ROHS
Warranty 3 years


6. Packaging Details:


10W / 20W / 30W: 10PCS/CTN, Carton:71*30*42CM, N.W:0.85KG, G.W:10.5KG/CTN

40W / 50W: 10PCS/CTN, Carton:71*30*42CM, N.W:1.05KG, G.W:12.5KG/CTN


2000lm Black Ceiling Track Lights 20w Heat Dissipation For Automobile Display 0
