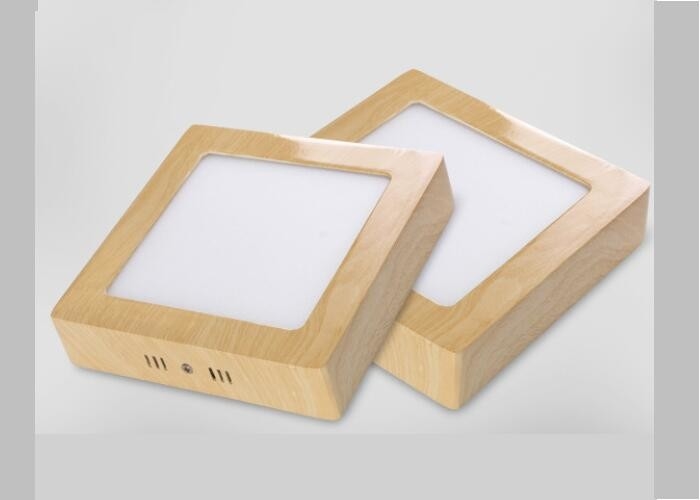

Square Dimmable Led Panel Light 300 x 300 Wood Grain Surface 24w 0.9pfc

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-EPS-PAL-6W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 100 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 24W Driver: Triac Dimmable
Size: 300mm Material: Aluminum
Fixture Color: Wood Grain CRI: 90Ra
PFC: 0.9 Installation: Surface Mounted
High Light:

dimmable led ceiling panels


dimmable led flat panel lighting

Product Description


Triac Dimmable LED Panel Light Wood Grain Surface 24W 300mm 90Ra 0.9PFC



1. Description:


Ado LED Lights main products are led panel light, they are slim led panel light, dimmable led panel light, and flat led panel light. Dimmable led panel light is using a dimmable driver to make the led panel light can be controlled by their previous dimmer, dimmable led driver is to control the lamp brigtness, the lamp light can be warmer and darker. And we have 3 different dimmable led panel light, triac dimmable led panel light, 0-10V dimmable led panel light and Dali dimmable led panel light. This dimmable led panel light fixture color is wood grain, which is customized color, material is also aluminum, and we can customize other fixture color, black and sliver. The 24W size is 300mm, we also have round for this version, other prameter is also very good, led CRI is up to 90RA, and led driver power factor is 0.9. This dimmable led panel light is used for high-level hotel lighting.



2. Features:


1. Long time and durable

2. Energy Saving

3. Smart IC Driver

4. Protect Vision

5. Enviromental Protection



3. Specification:

Light Source: LED
Item Type: Slim Surface Mounted LED Panel Lights
Warranty(Years): 3
Input Voltage(V): 85-265Vac
Lamp Power(W): 24
Lamp Luminous Flux(lm): 2400LM
Lamp Luminous Efficiency(lm/w): 100
CRI (Ra>): 90

Size: 300mm
Color Temperature(CCT): Cool White
Working Temperature(℃): -20 - 40
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
IP Rating: IP44, IP20
Certification: CE RoHS
Place of Origin: Guangdong, China (Mainland)
Brand Name: Ado
Model Number: AD-EPS-SPAL-24W
Power: 6W/12W/18W/24W
Color Temperature: 3000K,4000K,5000K
L70 life span: >50000Hrs
Beam Angle: 120 Degree
Dimmable: Customized
UGR: <19
Material: Aluminum+PC



4. Other Model Items:


Model Shape Color Size Lumen Chip
AD-EPS-PAL-6W Round W,WW,NW Φ90mm ±540LM SMD2835*30PCS
AD-EPS-PAL-12W W,WW,NW Φ145mm ±1080LM SMD2835*60PCS
AD-EPS-PAL-18W W,WW,NW Φ175mm ±1620LM SMD2835*90PCS
AD-EPS-PAL-24W W,WW,NW Φ225mm ±2160LM SMD2835*120PCS



5. Advantages:


A. LED chip: Energy star color option :3000k/4000k/6000k, 90lm/w ,life span>30,000hours CRI>80,
Epistar or Samsung brand chip, SMD led chip ,high lumen&brightness

B. High quality driver: constant current power, wide votage, no stobe, safe islation protection meets the European standard

C. Inside of the lamp: Good quality guide plate

D. Lamp Cover: PMMA materials, good light effects, easily clean

E. Lamp Body and Back: Extra thin aluminum frame, Smooth surface .white color, aluminum frame as heatsink, good Elasticity to install safer saving the space and convenient to install



6. Warranty:

1. All goods will be guaranteed for 2 years after shipment under normal using condition.
2. Improper use (wrong voltage, wrong power supply, wrong dimmer etc) does not within the guarantee.
3. For quality problem, please inform us within three days after receiving the goods, our quality control team members will help to handle it.



7. Shipping&Delivery&Trade Terms:


Sample Shipping DHL Fedex TNT UPS EMS
Bulk order Shipping By Air, By Sea
Sample Delivery time 3 - 7 work days
Bulk order Delivery time 15 - 20 work days
Shipping Port Guangzhou, Shenzhen, Zhongshan
Payment terms 30% advance, 70% before shipping
