Product Details:
|
|
| Place of Origin: | China(mainland) |
|---|---|
| Brand Name: | ADO |
| Certification: | ROHS CE FCC 3C |
| Model Number: | AD-EPS-PAL-24W |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | One Carton |
| Price: | Negotiation |
| Packaging Details: | 20 pieces in one carton |
| Delivery Time: | 5 - 8 work days |
| Payment Terms: | PayPal, Western Union, T/T, L/C |
|
Detail Information |
|||
| Power: | 18W | Chip Type: | SMD2835 |
|---|---|---|---|
| Light Guide Plate: | PMMA 3mm | Dimension: | 225mm |
| Dimmable Type: | 0-10V | Lamp Color: | Dark Wood Grain |
| High Light: | dimmable led ceiling panels,dimmable led flat panel |
||
Product Description

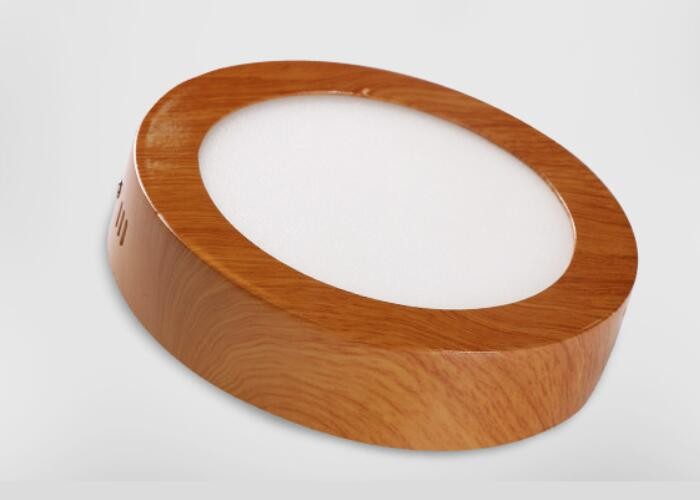

0-10V Dimmable LED Panel Light 18W Wood Grain Color 225mm SMD2835 PMMA 3mm
1. Introduction:
Dimmable led panel light is our hot selling products, it can be Dali dimmable, triac dimmable and 0-10V dimmable. The advantage for 0-10V dimmable is that the dimmer can control other lamps which is also 0-10V dimmable lamps at the same time in one room.
And this led panel light is not only dimmable, also the housing color is very special, it is dark wood grain, very unique design, the shape can be round and squre, it has 4 size with 4 powers, 6W, 12W, 18W and 24W. Luminous efficiency is 100LM/W. High brightness with low decay, The installation is surface mounted, 24w size is 225mm, the light guide plate is PMMA material with 3m thickness, which bring more lighting transmittance, make the light more soft and uniform. it is a good choise for commercial lighting and office lighting with longlife span.
2. Specification:
LED Light Source: SMD2835
Warranty(Years): 3
Input Voltage(V): AC85-265V
Lamp Power(W): 18
Lamp Luminous Flux(lm): 1600
Lamp Luminous Efficiency(lm/w): 90
CRI (Ra>): 80
Color Temperature(CCT): OEM
Working Temperature(℃): -20 - 45
Working Lifetime(Hour): 30000
Lamp Body Material: Dark wood grain led light
IP Rating: IP20
Certification: CE
Place of Origin: Guangdong, China (Mainland)
Brand Name: Ado
Shape: Round Shape
Power: 18W
Material: Aluminum
Color: 3000K 4000K 6000K
Installation: Surface-Mounted
Application: Meeting Room / House /etc
3. Parameter:
| Model | AD-EPS-PAL-18W |
| Input Voltage | AC85-265V |
| LED Brand | Taiwan Epistar |
| Lumen | 1550LM ± 100 LM |
| Color Rendering Index | 80RA |
| P rank | IP20 |
| Shipping method | DHL / Fedex / TNT / Air Shipping / Sea Shipping |
| Shipping time | 3-7 days for express/air shipping, one month by sea |
| Samples Delivery Time | 3-5 days |
| Official Order Delivery Time | 16 work days |
LED panel lights are commonly used for many places, they are:
1. School, laboratory, library, museum, living rooms, hospital
2. Office, meeting or conference room
3. All commercial premises and residential
4. Supermarket, retail outlet, corridors
5. Entertainment venue
6. Features:
1. Many different color housing, white / black / sliver/ golden/ wood
2. Many shapes: Round / Square
3. Different types: Recessed / Surface Mounted
4. Many Sizes: 90mm / 145mm / 175mm / 225mm
5. Different Power: 6W / 12W / 18W / 22W
6. CCT: 3000K warm white, 4000K neutral white, 6000K cool white
7. Driver: dimmable and non-dimmable are optional
7. Quality Control:
We have a strict quality control system from raw material to finished products.Each step must pass strict inspection, strive to produce superior products:
1.Ensure the input quality to achieve the correction and efficiency;
2.Strict management of static to ensure the each steps carries out smoothly and under control;
3.Inspect the product to determine whether the process is stable, the product meets the specified requirements
4.The ability of self-improvement, rapid alarm feedback mechanism, rapid alarm and feedback when exceptions occur.
