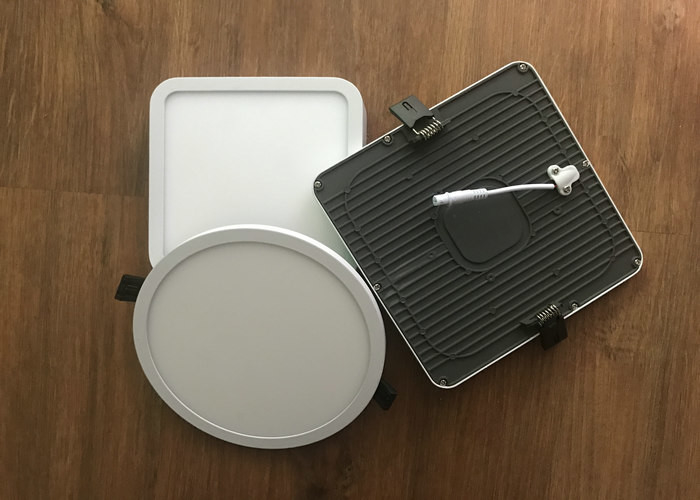

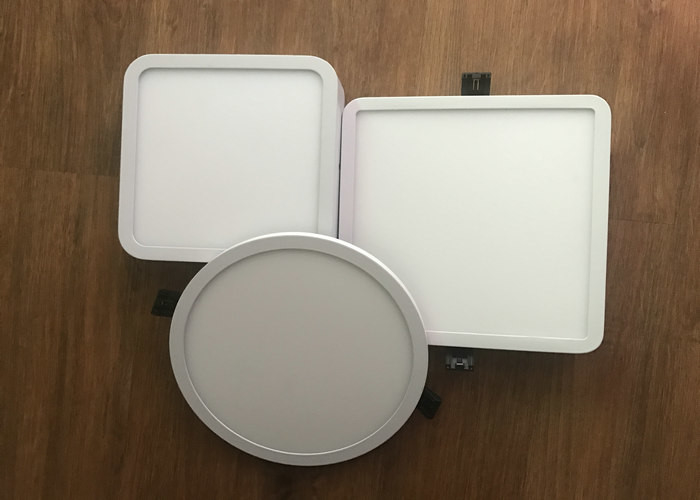

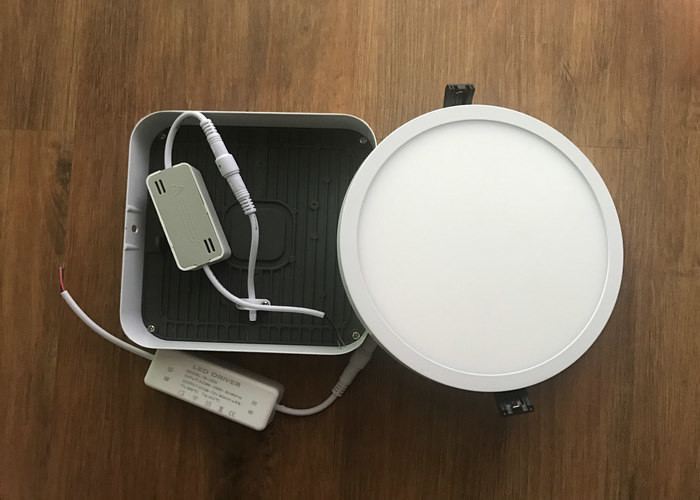

Embedded Mounted Led Slim Panel Light 24w Wood White With Narrow Edge 8mm

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-ERP-PAL-24W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 24W LGP: PMMA
Installation: Embedded Mounted Fixture Color: Wood White
Edge: Narrow Edge 8mm CRI: 80RA
High Light:

thin led light panel


ultra slim led panel light

Product Description


24W LED Slim Panel Light Embedded Wood Aluminum PMMA Narrow Edge 80Ra




1. Description:


a. Surface Treatment: Die casting aluminum with anti-fading satis powder coating
b. Heat Sink: Die-casting aluminum body with strip pattern provide better effect for heat trasmitting
c. Ultra Bright Chips: High lumen SMD2835 output up to 26LM/pcs SMD chip, high CRI, low decay
d. Light Guide Plate: Japan Mitsubishi 3mm LGP with 92% light transmittance, good light distribution
e. Smart IC Driver: Intelligent constant current IC driver, stable project, long lifespan ensurance

f. Slim design, good looking, easy installation



2. Specification:


Model: AD-EPR-PAL-18W

Input Voltage: AC85-265V

Power: 18W

LED Brand: Taiwan Epistar

LED Chip: SMD2835

LED Type: 0.2W

LED Lumen: 24-26LM

LED Quantity:90pcs

CCT: 3000K / 4000K /6000K

Lumen: 1550LM ± 100 LM

Color Rendering Index: 80RA



3. Electrical Parameters:


Size(mm): φ175*H8mm
Cutout size(mm): φ155mm
Input Voltage: AC85-265V 50/60Hz
Power factor: PF≧0.9
Driver :Smart IC Isolated constant current
Rated lifetime: 50.000 hours
4. Technical Data Sheet:
Light guide plate(LGP) brand Japan Mitsubishi
LGP thinkness 3mm
LGP technology Dot Laser
LGP light transmittance 90%
Lifespan (LM80) 30000H
Material Aluminum(fixture)+PMMA(LGP)
Fixture Color Powder painted white color
Shape Round
Beam angle 120°
IP rank IP44
Insulation grade II
Energy-saving level A PLUS
Operation temperature -20℃~+60℃
Lighting Distance 1-4meters
Mounting height 2-3meters
Place of Origin China
Approval mark CE RoHs
Warranty 2 years
5. Advantages:
1. Energy: the brightness of the panel light than the equivalent of about 60% reduction in power consumption, power consumption than equivalent incandescent brightness decrease of about 80%, power conversion efficiency ≥ 88%, consistent with energy efficiency standards.
2. Environmental protection: infrared and ultraviolet spectrum free, free of harmful substances mercury content, meet RoHs requirements, LED light source is typically green.
3. Life: LED life of up to 50,000 hours, or point that is light, there is no delay time, switching frequency does not affect the light source life.
4. Security: not easily damaged, green. Recyclable waste, no pollution; unlike fluorescent lamps contain mercury components panel, soft light, through the CE certification.
5. Wide scope of application: start at low temperature, normal and use. Common fluorescent panel lamp difficult to start at low temperatures, due to unique design, LED panel lights (special materials: aluminum shell + LGP + spread sheet), light emitted by the surface uniform light, look no glare, greatly reducing human eye injury, relieving eye fatigue, especially for hospitals.

6. Warranty:


We provide 3 years warranty for our surface mounted slim led panel light, if any defective products in warranty period, we will repair or replace for free. If not in warranty period, we will help you find out the defective reasons, if only need to change new parts, we will send you new parts, and you should pay the new parts cost. If it is totally can't use again, we will offer you 10% discount to buy a new product from us.



7. Application:


1. Office Lighting, Retail & Grocery Stores, Showrooms, Airports

2. Commercial Lighting, Restaurants & Hotels, Shopping malls
3. Institution buildings, Super market Lighting
4. Hospitals, Warehouses, Warehouse Lighting, Galleries



8. Trade Term:


MOQ 100pcs
Price EXW factory
Payment method Paypal/TT/Western Union
Payment term 30% deposit after order confirmation, 70% before shipment
Delivery time 3 days for samples, 7-15days for bulk order
Shipment sample by DHL(3-4days), bulk order by sea(about 30days)
Valid date 30 days
