90lm / W Office Led Panel Light , Ic Isolated Led Flat Panel Ceiling Lights

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-ERP-PAL-18W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 18W Fixture Color: White Black
LED Driver: IC Isolated LED Chip: SMD2835
Luminous Efficiency: 90LM/W Installation: Isolated
High Light:

thin led light panel


slim led ceiling light

Product Description


LED Slim Panel Light 18w Surface Mounted Black IC Isolated SMD2835 90LM/W



1. Description:


Surface Mounted LED Slim Panel Light have round and square shape, power is 6w, 12w, 18w and 24w.

The led driver is an important part for our slim led panel light. It is isolated, so it is safety. And IC constant current smart project, stable and long life. Defective rate is very very low. The led chip is SMD2835 with 0.2w, 24w light luminous efficiency is 90LM/W, total lumen is about 2160LM. And CRI is 80Ra to show object's real color. The fixture color is white, can make electroplating color, such as sliver, black, gold, wood and bronze. This led slim panel light life span is 30000 hours, it is very energy saving.



2.  Detailed Specification:


Size(D*H): 175*8mm
Cutout size: 155mm

Color Rendering Index: 80RA

Material: Aluminum(fixture)+PMMA(LGP)
Beam angle: 120°
IP rank: IP20
Operation temperature: -20℃~+60℃
Lighting Distance: 1-4meters
Mounting height: 2-3meters
Place of Origin: China
Input Voltage: AC85-265V
Model: AD-EPR-PAL-18W
Lumen: 1550LM ± 100 LM
Warranty: 2 years

Approval mark: CE RoHs



3. Electrical Parameters:


Power factor: PF≧0.9
Driver :Smart IC Isolated constant current
Rated lifetime: 50.000 hours
Light guide plate(LGP) brand:Japan Mitsubishi
LGP thinkness: 3mm
LGP technology: Dot Laser
LGP light transmittance: 90%
Lifespan: (LM80) 30000H



4. LED Chip Information:


LED Chip SMD2835
LED Type 0.2W
LED Lumen 24-26LM
LED Quantity 90pcs
Power 18W
LED Brand Taiwan Epistar
CCT 3000K / 4000K / 6000K



5. Installation:


1. This products can be only used in indoor.

2. Cutout of the ceiling should be the same as the lamp.

3. Connect the DC connectors with the lamp and the driver.

4. Insert the pinch to the ceiling, make sure it is fastened.



6. Features:

(1) Ultra thin, good heat, long life, low cost of maintenance

(2) 120 degree full light angle high lumen

(3) Energy-saving and environment-friendly Led Lamp

(4) Designed according to traditional Edison lamps plus led lights.

(5) High luminous flux can reach up to100lm/W.

(6) Wattge type: 6W / 12W / 18W / 24W

(7) Dimmable type:dimmable/non-dimmable.

(8) High quality with CE,RoHS / TUV and other certificates.

(9) Long life time 30, 000 hours



7. Shipping:


Samples shipping method DHL Fedex UPS TNT EMS
Bulk order shipping method By sea
Samples shipping time 3-7 days
Bulk order shiping time 30 days



8. Why Choose ADO LED Slim Panel Light?

1. CE, RoHS, certified LED lights manufacturer
2. Large stock of led chips, led driver and LGP material
3. Short production lead time, fast delivery, discounted DHL/UPS freight
4. Favorable price as PO qty increase
5. Excellent sales team providing on-time service
6. Strong R&D team with strength to develop new products every month

7. 6 years LED Lighting experience

8. 3 Year Quality Warranty with good after-sales services

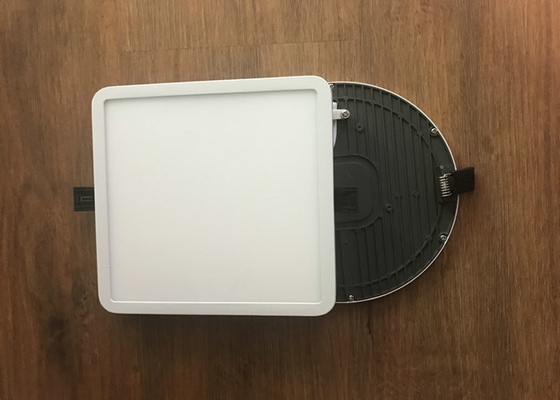

90lm / W Office Led Panel Light ,  Ic Isolated Led Flat Panel Ceiling Lights 0
