Home ProductsG4 LED Lights5W 6W COB R7S LED Light IP20 AC220V 500LM 78MM 118MM 360 Degree
5W 6W COB R7S LED Light IP20 AC220V 500LM 78MM 118MM 360 Degree supplier
5W 6W COB R7S LED Light IP20 AC220V 500LM 78MM 118MM 360 Degree supplier 5W 6W COB R7S LED Light IP20 AC220V 500LM 78MM 118MM 360 Degree supplier 5W 6W COB R7S LED Light IP20 AC220V 500LM 78MM 118MM 360 Degree supplier 5W 6W COB R7S LED Light IP20 AC220V 500LM 78MM 118MM 360 Degree supplier

5W 6W COB R7S LED Light IP20 AC220V 500LM 78MM 118MM 360 Degree

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-R7S-COB-5W
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: 100pcs
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 50,000 pcs per day
Contact Now

Detail Information
Power: 5W Voltage: AC220V-AC240V
LED Type: COB 5W Dimmable: No
Material: Glass Base: R7S
Highlight:

g4 dimmable bulbs

,

g4 base led bulb

Product Description



5W 6W COB R7S LED Light New Type Glass IP20 AC220V 5W 500LM 78MM 118MM 360 Degree


1. 5W 6W COB R7S LED Bulb Data Sheet:



Model AD-R7S-5W-COB AD-R7S-6W-COB
Power 5W 6W
Base R7S
Voltage AC220-240V
LED Chip COB 5W COB 6W
LED Quantity 1pcs 1pcs
CCT

WW: 2700-3000K

NW: 4000-4500K

CW: 6000-6500K
LED Power 5W 6W
Lumen 500LM 600LM
Size Φ48*78mm Φ48*118mm
Beam Angle 360 degree
Warranty 2 years
Certificate CE RoHS





2. Description:

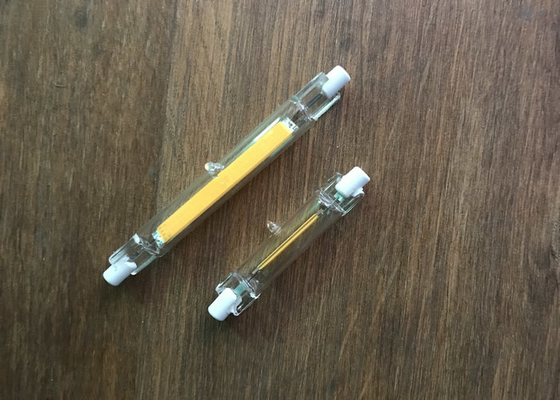

1. Clear COB 360 degree R7S led linear bulb light 78mm 118mm
2. Replaced halogen R7S bulb 48W, Glass material, 360 degree beam angle.
3. Linear IC driver,100% light immediately, lower heat. longer lifetime
4.Various sizes and watts,Dimmable and non-dimmable are available
5. No UV&IR, no radiation, environment friendly, safe for human





3. Specification:



Light Source: LED

Item Type: Bulb Lights

LED Light Source: COB

Type: R7S

Input Voltage(V): AC220-240V

Lamp Luminous Flux(lm): 500LM

Lamp Luminous Efficiency(lm/w):100LM/W

CRI (Ra>): 80Ra

Color Temperature(CCT): Warm/Pure/ Cool White

Working Temperature(℃): -5 - 40

Working Lifetime(Hour): 25000

Lamp Body Material: Glass

Certification: CE, RoHS

Base Type: R7S

Place of Origin: Guangdong, China (Mainland)

Brand Name: ADO

Product Name: R7S LED COB Bulb

Keyword: LED R7S

Beam angle: 360degree

Warranty: 3 Years

Base:R7S

SIZE: D48MM*H78MM

IP Level: IP20

OEM ODM Service: YES

Certificate: CE RoHS

Application: Indoor Light





4. Packaging & Delivery:



(1) Selling Units: Single item

(2) Single package size:  79X36X36 cm

(3) Single gross weight: 30.0 kg

(4) Package Type: 1pc put in one white box, 100pcs white box put in a middle box, 100pcs middle box in a carton box

(5) Lead Time:



Quantity(Piece) 1 - 100 101 - 1000 1001 - 5000 >5000
Est. Time(day) 7 9 15 To be negotiated





5. Detailed Technical Data:


Model number AD-R7S-COB-5W Power 5W
Input voltage AC220-240V LED Brand San'An
LED Type COB 5W Total Lumen 500LM
Chip Quantity 1pcs Color temperature(K) 2800-6500K
Base R7S Material Glass
Size 48*78mm IP Rating IP20
LED Driver IC constant current Life span 30000 hours
Certificate CE RoHS EMC Warranty 2 years
Luminous efficiency 100-110LM/W CRI(Ra) 80




6. Advantages:

1. Super long life: 30000 hours is a dozen times the life of ordinary lamps, every day according to 6 hours of light, R7S LED lamp can be used more than 10 years, a lot of halogen beads, free from the constant change of the beads of the worries.

2. High efficiency and energy saving: the equivalent watt number patch LED is 90% power supply than the traditional incandescent lamp Festival, and is 60% light source than the halogen Festival.

3. Low heat: the surface temperature of the patch LED lamp is about 60 degrees, and the ordinary lamp has a high fever compared with the traditional halogen lamp. The patch LED lamp has a better heat dissipation.


7. Features:

1. Super brightness,low decay
2. No flicker, No mercury, Eco-friendly.
3. Certificate Of ISO9001, CE, RoHS, EMC.
4. Long lifespan 30.000 hours (Average) with 2 years warranty
5. Low power consumption


8.  Quality Control:

1. Our professional, experienced engineers from Taiwan and skilled, hard-working workers ensure the quality of our products.
2. Systematic working rules guarantee our efficiency and the goods can be delivered to our clients on time.
3. We have satisfactory after-sale services available when you need.
4. Our strict quality control promises the stability and high quality of our products.


9. Application:

SOLAR POWER SYSTEMS , WIND TURBINE GENERATOR , HYDRO POWER GENERATOR
USE AT HOME WITH PROPER VOLTAGE DC
SMALL HOME PROJECTS .
SCIENCE PROJECTS . ELECTRONIC APPLICATIONS .
RV , Yachts , Boats , Ships , Automobiles , Carts

5W 6W COB R7S LED Light IP20 AC220V 500LM 78MM 118MM 360 Degree 0
