China LED Flat Panel Light manufacturer

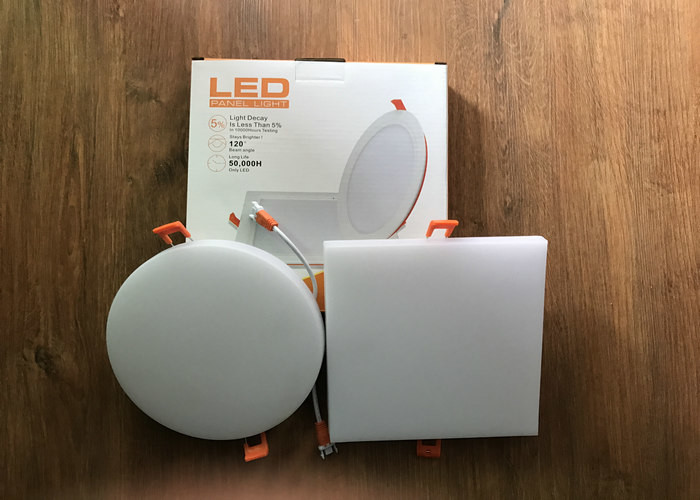

Slim IP20 24W 30W LED Panel Light Rimless White 50000hours Long Lifespan

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-ARL-PAL-18W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 40 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Shape: Round Square Power: 12w 18w 24w 30w
LED Driver: Isolated IC Constant Current Installation: Recessed
Lighting: Back Lighting Warranty: 2 Years
High Light:

thin led light panel


ultra slim led panel light

Product Description


New Model LED Slim Panel Light Rimless Big Lighting Area IP20 CE 12w 18w 24w 30w​



1. RimLess 18w Round and Square LED Slim Panel Light Technical Data:


Input Voltage AC85-265V
Power 18W
Dimension(L*D*H) 120mm*120mm*H20mm D120mm*H20mm
Lumens 1980LM
LED chip SMD2835*162pcs
CRI 80Ra
Finish White
Beam Angle 180 degree
LED Brand Epistar
LED Driver Isolated IC driver
IP Grade IP20
Material Aluminum+PC
Shape Round Square
Lifespan 50000hours
Certificate CE RoHS
Warranty 2 Years



2. Description:


Our this new rimless led panel light is advanced version, there is no aluminum outer ring around the front side. It is complete PC cover, which bring good light transmittance. The panel light back side is aluminum material as radiator, better heat dissipation. The emitting is back lighting, not side lighting. This new version luminous efficiency is very high, it is up to 100LM/W. Power is 12w, 18w, 24w and 30w. Shape is round and square. The installation is recessed mounted.



3. Packaging information:



2.Gross weight: 12KGS

3.Size of carton: 65*28*20cm


2 Gross weight: 9KGS

.Size of carton: 38*33*32cm


2. Gross weight:11KGS

3.Size of carton: 58*44*23cm



2. Gross weight: 13KGS

3. Size of carton: 54*38*28.5cm



4. ADO LED Panel Light Advantages:


1. Led panel light is with high efficiency, maximum uniformity by Mitsubishi light guide plate.

2. Different sizes of led panel light for your options. Diversity in shape (round, square, rectangle).

3. Isolated IC Constant current driver with a power factor more than 0.95;

4. Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.

5. LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.

6. The beam angle of led panel light is 180°.

7. Easy to install. Ideal to be built into system ceilings, offices, and can be used as a suspended light fixture.

8. Innovated structure heating design.

9. Lock cable DC plug for led panel light.

10. Reflective area is larger with frameless design

11. LED panel light direct replace T8 and T5 fixtures.



5. Features:


1. High heat conduction lamp body, fast heat dissipation, Enhance the heat to make LED longer, Luminous more stable, Greatly reduce the speed of light decay

2. Oil proof, dust proof,Anti-fog, Transmissivity up to 99%, Luminous more uniform, no glare, not dazzling, Appearance of the atmosphere fashion

3. Smart IC, isolation protection,short circuit protection and over-load protection, provide a stable, safe and reliable product performance. Safe isolation protection meets the European standard.

4. The lighting has uniform panel glows by high luminousness reflector. Bright light is completely flat output.
The luminous angle is wider.



6. Application:


Slim Led Panel light is widely used for Hotel, restaurant, office , all of Indoor Public Places;Commercial lighting and Industrial lighting; Cabinet, show care , and small areas,especially for Commercial and Office indoor lighting.



7. F.A.Q:


1. Which brand led chip do you use?

We use Taiwan Epistar LED Chip SMD2835, one chip is 24-26LM, power is 0.2W, high brightness with low decay and lifespan is more than 50000 hours.


2. What kind of led driver do you use?

We use Isolated IC constant current led driver, and it is wide voltage AC85-265V, stable quality.


3. Can you make customized products?
Yes, most of our products can be made to fit your individual application. OEM and ODM are accepted.


4.  Do you have dimmable led panel lights?
A: Yes,we have several types of dimmable LED panel lights, triac dimmable, 0-10v dimmable, 24VDC & CCT& RGB dimmable LED panel light with remote controller or DMX.


Slim IP20 24W 30W LED Panel Light Rimless White 50000hours Long Lifespan 0Slim IP20 24W 30W LED Panel Light Rimless White 50000hours Long Lifespan 1
