China LED Flat Panel Light manufacturer

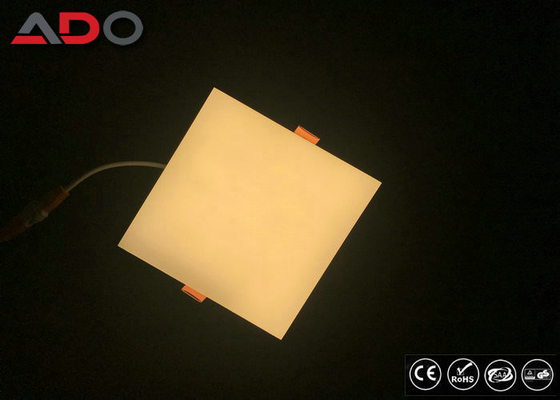

12W 18W 24W LED Slim Panel Light Aluminum IP20 Embedded 3000K CE ROHS

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-ARL-PAL-12W/18W.24W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 40 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Name: New Design Led Panel Light Color Temperature: 3000K 4000K 6000K
Power: 12w 18w 24w 30w Material: Aluminum+PC
Installation: Embedded IP Level: IP20
Life Span: 50000 Hours LED Chip: Epistar
High Light:

thin led light panel


ultra slim led panel light

Product Description


New Design 12w 18w 24w LED Slim Panel Light CE Aluminum IP20 Embedded 3000K



1. Frame-less LED Panel Light Description:

ADO New product frame-less led panel light is our factory own module. It is different from old led panel light. The difference are:

(1) The front housing is PC material with 88% lighting transmittance, bring soft light.

(2) The emitting lighting is backlit, a round alumium PCB with leds.

(3) Luminous efficiency is up to 110LM/W, 12w lumen is 1320LM, 18w lumen is 1980LM.

(4) Back side housing is aluminum, good heat dissipation.

(5) It is with out Light Guide Plate(LGP), save material cost, makes products more competitive.



2. Framless led panel light Option:


1. Voltage: AC220V, AC110V, AC85-265V

2. Power: 12w, 18w, 24w, 30w

3. Shape: Round, Square

4. Color temperature: 3000K, 4000K, 6000K

5. Dimmable: Yes or No

6. Size: 90mm, 120mm, 170mm, 225mm

7. Packaging: Color box, white box, customized box

8. Warranty: 2 years, 3 years

9. LED Driver: Isolated, non-isolated, CE driver, TUV driver, SAA driver

10. LED Chip: Epistar, San'an



3. 12w 18w 24w LED Slim Panel Light Specification:


Model AD-ARL-PAL-12w AD-ARL-PAL-18w AD-ARL-PAL-24w
Power 12W 18W 24W
Size D90*H20mm D120*H20mm D170*H20mm
Lumen 1320LM 1980LM 2640LM
Cutout 70mm 105mm 155mm
LED Chip 90LED*SMD2835 168LED*SMD2835 216LED*SMD2835
Feature 1. Isolated wide voltage Driver
2.CRI: ≥80
3.Light Efficary: ≥110LM/W
4.warranty: 2 years
5.Ordinary color packaging
6.Voltage: AC85-265V
7. LED Brand: Epistar
8. Installation: Recessed Mounted
9. Shape: Round Square


4. Frameless led panel light features:


1. High quality driver: constant current power, wide votage, no stobe, safe islation protection meets the European standard

2. ED chip: Energy star color option :3000k/4000k/6000k, 90lm/w ,life span>30,000hours CRI>80,
Epistar or Samsung brand chip, SMD led chip ,high lumen&brightness

3. Lifetime more than 50000hrs, providing 3 years warranty.

4. Easy to install, can replace the same ceiling or grille light hanging on the wall, or hanging on the roof through the chain

5. Conforms to CE certificate and safety standard.

6. Less than 0.05% defective rate in last 3 years.



5. Packaging:

Power Quantity Carton Size G.W
12W 50PCS/CTN 65*28*20cm 12KG/CTN
18W 40PCS/CTN 38*33*32cm 9KG/CTN
24W 30PCS/CTN 58*44*23cm 11KG/CTN
30W 20PCS/CTN 54*38*28.5cm 13KG/CTN



6. Warranty:

1. All goods will be guaranteed for 2 years after shipment under normal using condition.
2. Improper use (wrong voltage, wrong power supply, wrong dimmer etc) does not within the guarantee.
3. For quality problem, please inform us within three days after receiving the goods, our quality control team members will help to handle it.



7. Shipping&Delivery&Trade Terms:


Sample Shipping DHL Fedex TNT UPS EMS
Bulk order Shipping By Air, By Sea
Sample Delivery time 3 - 7 work days
Bulk order Delivery time 15 - 20 work days
Shipping Port Guangzhou, Shenzhen, Zhongshan
Payment terms 30% advance, 70% before shipping
