Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ADO |
| Certification: | CE ROHS |
| Model Number: | AD-DL-40W-NR |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | One Carton |
| Price: | Negotiation |
| Packaging Details: | 12 Pieces One Carton |
| Delivery Time: | 3-7 work days |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 10,000 pcs per day |
|
Detail Information |
|||
| LED Chip: | Cree COB 40W | Power: | 40W |
|---|---|---|---|
| CRI: | 90Ra | LED Driver: | CE Driver |
| PFC: | 0.95 | Beam Angle: | 24 Degree |
| High Light: | led down lamp,cob led down light |
||
Product Description

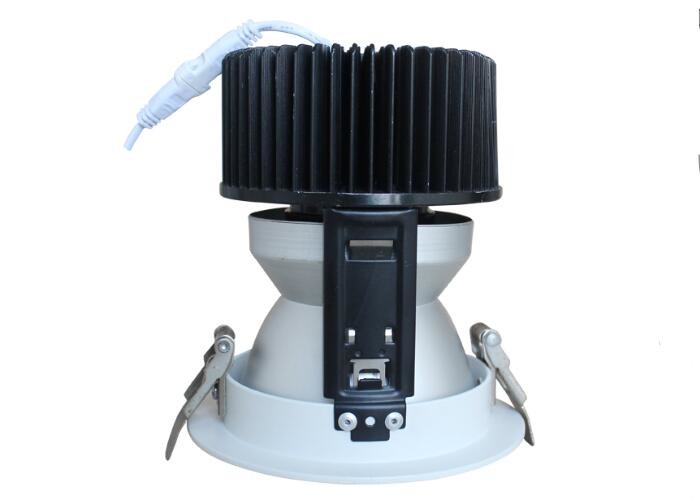

40W LED Down Light Cree COB CE Driver 0.95PFC 24 degree IP20 90Ra
1. LED Down Light Specification:
| CREE COB LED Downlight Specifications | |||
| Model | AD-DL-7W-NR | AD-DL-10W-NR | AD-DL-15W-NR |
| Normal Voltage | AC 220-240V | ||
| Power | 7W | 10W | 15W |
| Cut Hole (mm) | 78 | 78 | 92 |
| Diameterφ(mm) | 90 | 90 | 109 |
| Lumens | 560-630lm | 800-900lm | 1200-1350lm |
| LED chip | CREE COB | ||
| CRI | >90Ra or >80Ra | ||
| CCT | 2700K-5000K | ||
| Beam Angle | 24° | ||
| Housing Color | Milky white | ||
| Housing | Dia-cast Aluminum | ||
| LED Driver | High PFC0.95 LED constant current driver | ||
| IP Level | IP20 | ||
| Lifespan | 50000hours | ||
| Certificate | CE,ROHS | ||
| Warranty | 3 years | ||
2. LED Down Light Features:
1. 10W-50W for option. 3 years warranty
2. COB LED chip. CRI: 80Ra. Can reach up to 90LM/W
3. Use external isolate constant current power driver, PF>0.95, IP65 CE driver
4. Elegant design, white fixture, aluminum material, good heat dissapation
3. 10W 15W 20W SMD LED Down Light Parameter:
| Model | AD-DL-20W-NR | AD-DL-30W-NR | AD-DL-40W-NR | AD-DL-50W-NR |
| Power | 20W | 30W | 40W | 50W |
| Cut Hole (mm) | 92 | 130 | 210 | 210 |
| Diameterφ(mm) | 109 | 135 | 230 | 230 |
| Lumens | 1600-1800lm | 2400-2700lm | 3200-3600lm | 4000-4500lm |
4. Packaging Information:
7W led down light: 20pcs/ctn Carton: 70*22 *26 cm G.W: 6.5 kg/ctn
10W led down light: 20pcs/ctn Carton: 70*22 *26 cm G.W: 6.5 kg/ctn
15W led down light: 20pcs/ctn Carton: 65 *27 *31 cm G.W: 11 kg/ctn
20W led down light: 20pcs/ctn Carton:75 *32 * 38 cm G.W:17kg/ctn
30W led down light: 20pcs/ctn Carton: 84*35 * 37 cm G.W: 19 kg/ctn
40W led down light: 12pcs/ctn Carton:75.5*50*48 cm G.W: 19.5 kg/ctn
50W led down light: 12pcs/ctn Carton:75.5*50*48 cm G.W: 19.5 kg/ctn
5. Advantages:
1. Low heat,high brightness,and works well under harsh conditions.
2. No UV light to avoid insects around.
3. Easy installation, maintenance free.
4. Anti-shock, anti-moisture.
5. Energy saving and gree environmental
6. widely used for many indoor places
6. Applications:
LED down light is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
7. Assurance:
1. 100% product quality protection
2. 100% on-time shipment protection
3. 100% payment protection for your covered amount
8. Shipping method:
1. By Express: DHL, TNT,UPS, Fedex,EMS,a fast and safe way for shipping, normally 3-5 working days for delivery
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder, collect goods from our factory
