China LED Flat Panel Light manufacturer

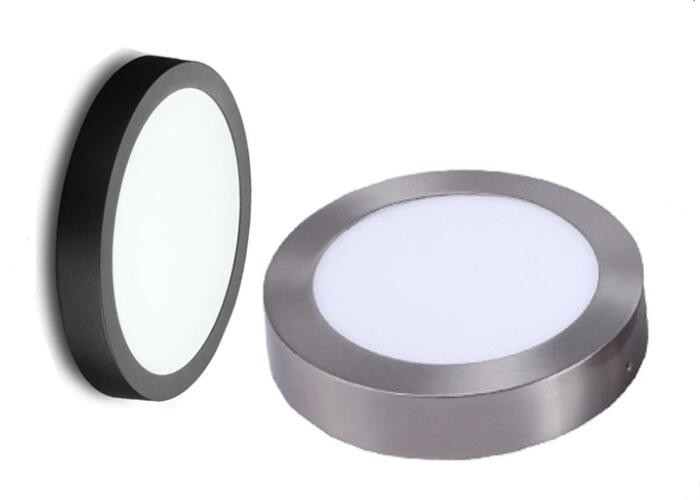

12 W Surface Mounted LED Panel Light Black / Sliver / Gold Wood Aluminum Housing

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-EPS-PAL-12W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 100 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 24W Driver: Triac Dimmable
Size: 300mm Material: Aluminum
Fixture Color: Wood Grain CRI: 90Ra
PFC: 0.9 Installation: Surface Mounted
High Light:

dimmable led ceiling panels


dimmable led flat panel lighting

Product Description


Triac Dimmable LED Panel Light Wood Grain Surface 24W 300mm 90Ra 0.9PFC



1. Specification:


Model Shape Color Size Lumen Chip
AD-EPS-PAL-6W Round W,WW,NW Φ90mm ±540LM SMD2835*30PCS
AD-EPS-PAL-12W W,WW,NW Φ145mm ±1080LM SMD2835*60PCS
AD-EPS-PAL-18W W,WW,NW Φ175mm ±1620LM SMD2835*90PCS
AD-EPS-PAL-24W W,WW,NW Φ225mm ±2160LM SMD2835*120PCS



2. Description:


1. Ado LED Lights main products are led panel light, they are slim led panel light, dimmable led panel light, and flat led panel light.


2. Dimmable led panel light is using a dimmable driver to make the led panel light can be controlled by their previous dimmer, dimmable led driver is to control the lamp brigtness, the lamp light can be warmer and darker.


3. And we have 3 different dimmable led panel light, triac dimmable led panel light, 0-10V dimmable led panel light and Dali dimmable led panel light.


4. This dimmable led panel light fixture color is wood grain, which is customized color, material is also aluminum, and


5. We can customize other fixture color, black and sliver.


6. The 24W size is 300mm, we also have round for this version, other prameter is also very good, led CRI is up to 90RA, and led driver power factor is 0.9.


7. This dimmable led panel light is used for high-level hotel lighting.



3. Features:


1. Long time and durable

2. Energy Saving

3. Smart IC Driver

4. Protect Vision

5. Enviromental Protection




4. Advantages:

A. LED chip: Energy star color option :3000k/4000k/6000k, 90lm/w ,life span>30,000hours CRI>80

Epistar or Samsung brand chip, SMD led chip ,high lumen&brightness


B. High quality driver: constant current power, wide votage, no stobe, safe islation protection meets the European standard


C. Inside of the lamp: Good quality guide plate


D. Lamp Cover: PMMA materials, good light effects, easily clean


E. Lamp Body and Back: Extra thin aluminum frame, Smooth surface .white color, aluminum frame as heatsink, good Elasticity to install safer saving the space and convenient to install
