Product Details:
|
|
| Place of Origin: | China(mainland) |
|---|---|
| Brand Name: | ADO |
| Certification: | ROHS CE FCC 3C |
| Model Number: | AD-MP-01-24W |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | One Carton |
| Price: | Negotiation |
| Packaging Details: | 20 pieces in one carton |
| Delivery Time: | 5 - 8 work days |
| Payment Terms: | PayPal, Western Union, T/T, L/C |
|
Detail Information |
|||

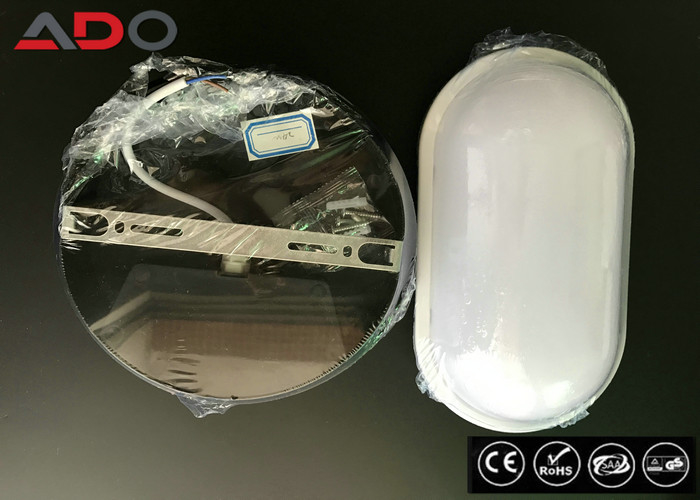

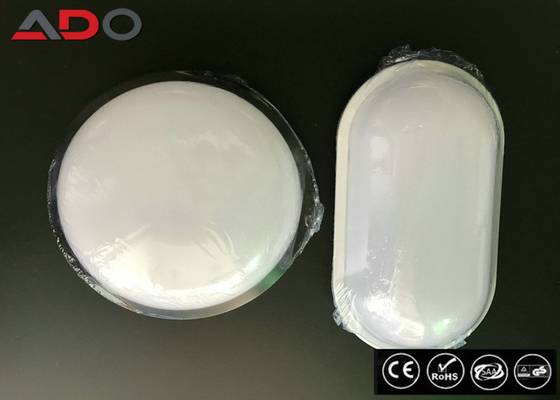

| Item: | Outdoor LED Bulkhead Lamp | Voltage: | 85- 265V AC |
|---|---|---|---|
| IP Level: | IP65 | Housing Color: | White Black |
| IK Level: | IK09 | Usage: | Bathroom Garden |
| Color: | 3000K 4000K 6000K | CRI: | 80Ra |
| High Light: | wall mounted bulkhead light,led bulkhead light |
||
Product Description
1. Emergency Device (3hrs)
2. Opal Diffuser
3. Wide Beam Angle - 120º
4. Up To 30,000 Hours Life Expectancy
5. IP65 Rated
6. Energy Saving
| Model | AD-MP-01-24w | AD-MP-01-15w |
| Lamp body color | Black/White | Black/White |
| Main material | Plastic + aluminum substrate | |
| Wattage | 24W (MAX) | 15W (MAX) |
| Input Voltage | AC85-265V | AC85-265V |
| CRI | >70 | >70 |
| Lamp Luminous Efficiency(lm/w) | 110LM/W | 110LM/W |
| Lamp Luminous Flux(lm) | 2600 | 1650 |
| Color Temperature(CCT) | 2700~6500k | 2700~6500k |
| LED Chip | Epistar | Epistar |
| Emergency Function | Optional | Optional |
| LED Type | SMD2835 | SMD2835 |
| Working Temperature(℃) | -15~45℃ | -15~45℃ |
| Ingress Protection | IP65 | IP65 |
| Size | Diameter:270mm | Diameter:210mm |
| Thickness:78 mm | Thickness:65 mm | |
| Mechanical Protection | IK09 | IK09 |
| Warranty(Years) | 3 years | 3 years |
A. Waterproof and moistureproof
B. Anti-exidation
C. Safe and durable
E. Healthy eye protection
F. Easy Installation
G. Intelligent power saving
H. High configuration
1. High Quality Material: Using high quality materials, durable, safe and reliable
2. High brightness lamp led chips with constant current led driver
3. High lumen SMD2835 led chips with 0.2W, 24-26LM/SMD, low decay, high CRI
4. Isolated IC constand current led driver, stable quality, intelligent driver project, long life
5. Exquisite appearance meet the beauty standard, nice design, can apply many places.
6. IP65 waterpfoof, can be used for outdoor lighting, and moisture proof.
7. Material: PBT, excellent insulation performance, good heat aging resistance
6. FREE 2 Year Warranty:
On selected Ado led bulkhead lamp products, we offer an automatic 2 year warranty. This entitles you to unlimited replacements from the original purchase throughout the warranty period. If your original purchase is no longer available, a new replacement with the latest equivalent model will be offered.
