China LED Flat Panel Light manufacturer

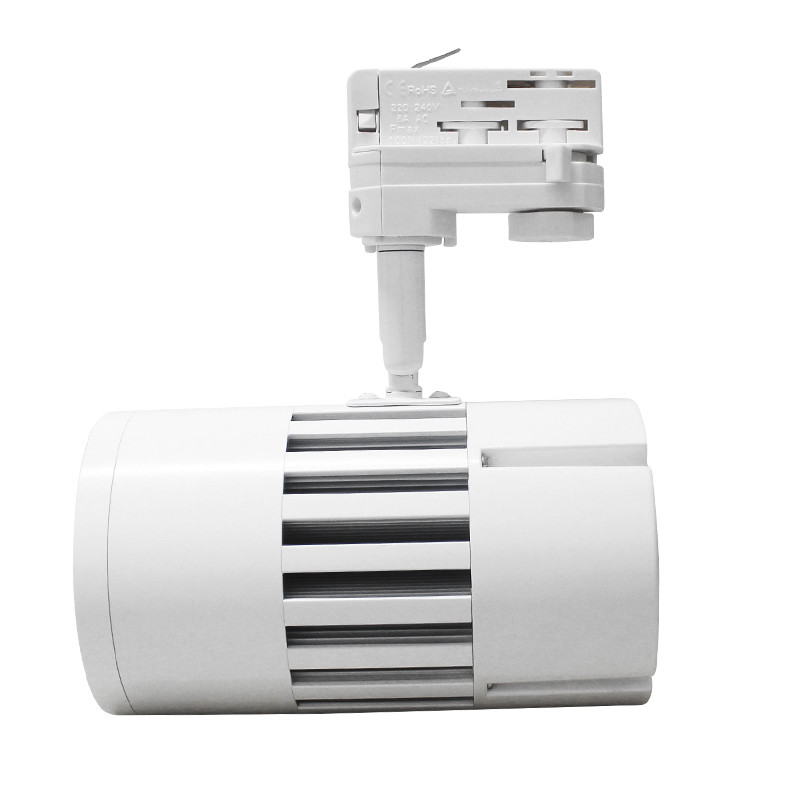

30w Led Ceiling Track Lights 3 Wires 85 - 265v Ac With Cree Cob Led Chip

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-AD-TL-30W-B
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 10 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 1,000 pcs per day
Contact Now

Detail Information

Power: 30W Voltage: 85-265V AC
LED Chip: COB 30W LED Brand: CREE
Material: Aluminum CRI: 80RA / 90Ra
Lumen: 110LM / W Driver PF: 0.95
High Light:

track lighting led


led track spotlights

Product Description


30W LED Track Light 3 Wires Cree COB LED Chip 90Ra 3 Years Warranty



1. LED Track Light Specification:


Input Voltage: AC85-265V
Input Power: 30W
LED: 1 pcs 30W Cree COB
Luminous Flux: 3000-3100LM
Color Temperature: 2700K-5000K
CRI: 80Ra (90Ra can customize)
Lifetime: 40,000-50,000hours
IP Rating: IP20
PF: 0.95
Housing Color: Black / White / Sliver
Beam angle : 15°, 24°, 38°, 60°



2. LED Track Light Advantages:

1. Use CREE COB or LUMINUS COB LED Chip,CRI>80Ra or 90Ra,light efficiency can reach up to 110lm/W.
2. Adopt isolated constant current driver with power factor above 0.95,85~265V wide working voltage.
3. 6063 Aluminum housing for heat dissipation,excellent thermal conductivity,This will gurantee the working be steady-going,longer lifespan,40000-50000hours.
4. Use 6063 aluminum housing.The working temperature is under 50 degree.
5. 360 Degree horizontal rotation and 360 degree vertical aiming
6. CE and ROHS certification.

7. Power: 10W, 20W, 30W, 40W, and 50W



3. 20W & 30W LED Track Light Technical Data:


Model AD-TL-20W-B AD-TL-30W-B
Normal Voltage AC 85-265V
Power 20W 30W
Dimension(L*D*H) 179*100*210 179*100*210
Lumens 1700-1800lm 2550-2700lm
CRI >90Ra or >80Ra
CCT 2700K-5000K
Finish white and black finish for option
Beam Angle 15°,24°,38°,60°
Adaptor 2 wire / Safty 3 wire / Europe Standar 3 phase 4 wires
Housing Aluminum+reflector
Lifespan 50000hours
Certificate CE,ROHS
Warranty 3 years



4. Features:


1, Top grade appearance
2, high power chip,quality light CRI>80Ra,90lm/w, protecty rate
4, Aluminum as heatsink material,excellent heat dissipation perfromance with bring the light real long life
5, 85-265V,suitable for weidely country
6, Protable contace,save 70% installation time costs
7, Stable running externet driver
8, It can be adjustable up and down



5. Applications:


1. Replacement for conventional fluouescent down light
2. Conference/meeting rooms
3. Factories and offices
4. Commerical complexes
5. Residential/institution buildings


6. Packaging Details:

10-30W Carton size: 64*24*36CM 12KG/CTN
40-50W Carton size: 67*27*36CM 13KG/CTN



7. Trade Terms:

1, Payment :L/C, T/T ,western Union, Paypal
2, Sample can be supplied
3, Shipping freight are quoted under your requests
4, Shipping port: Shenzhen, Guangzhou, Zhongshan, Mainland China
5, Discounts are offered based on your quantities


8. Delivery Time:

Samples: 3-5 days. Mass qty: 15-20 days


30w Led Ceiling Track Lights 3 Wires 85 - 265v Ac With Cree Cob Led Chip 0
