12w No Flicker Surface Mount Led Light Panels 1200lm Excellent Heat Dissipation

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-EPS-PAL-12W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Material: Aluminum Power: 12W
Installation: Surface Mounted CCT: Warm White / Neutral White / Cool White
Driver: 0-10V Dimmable Lumen: 1200LM
High Light:

dimmable led ceiling panels


dimmable led flat panel

Product Description


0-10V Dimmable LED Panel Light Surface Mounted 12W 1200LM TUV No Flicker



1. Description:


a. Surface Treatment: Die casting aluminum with anti-fading satis powder coating
b. Heat Sink: Die-casting aluminum body with strip pattern provide better effect for heat transmitting
c. Ultra Bright Chips: High lumen SMD2835 output up to 26LM/pcs SMD chip, high CRI, low decay
d. Light Guide Plate: Japan Mitsubishi 3mm LGP with 92% light transmittance, good light distribution
e. Smart IC Driver: Intelligent constant current IC driver, stable project, long lifespan assurance

f. Slim design, good looking, easy installation



2. 12W 0-10V Dimmable LED Driver Technical Data:


Input Voltage: 220-240VAC
Output Current: 200/250/300/350mA*1Ch
Output Voltage: 9-40/9-40/9-40/9-34VDC
Output Power:8/10/12/11.9W
Dimmable: 0-10V dimmable
Gross weight(g):125g



3. Specification:


Power  6W 12W 18W 24W
Size 90mm 145mm 175mm 225mm
Luminous 450LM 990lmm 1450lm 1900lm
Inut voltage AC85-265V AC85-265V AC85-265V AC85-265V
Warranty 3 year 3 year 3 year 3 year
LED Chip SMD2835 SMD2835 SMD2835 SMD2835
CRI 80 RA 80 RA 80 RA 80 RA



4. Techncical Data:


Name: Surface Mounted Slim LED Panel Light

Model: AD-EPS-PAL-12W

Input Voltage: AC85-265V

Power: 12W

Power factor: PF≧0.9
Driver :Smart IC Isolated constant current
Size(mm): φ145*H18mm
Rated lifetime: 50.000 hours

LED Brand: Taiwan Epistar SMD2835

LED Type: 0.2W  24-26LM

LED Quantity:60pcs

CCT: 3000K / 4000K /6000K

Lumen: 1000LM ± 100 LM

Color Rendering Index: 80RA

IP Grade: IP20
Operation temperature: -20℃~+60℃



5. LGP Parameters:


Light guide plate (LGP)brand Japan Mitsubishi
LGP thinkness:  3mm
LGP technology:  Dot Laser
LGP light transmittance:  90%
Insulation grade:  II
Energy-saving level:  A PLUS
Place of Origin:  China
Approval mark:  CE RoHs



6. Features:

1. Soft light with no dark spot

2. Low power consumption

3. 90% Lighting Area

4. High Luminous efficiency
5. No RF Interference
6. No flash, strobe and glare
7. Excellent heat dissipation
8. Easy installation



7. Application:


AShowroom / Meeting rooms

B. Factories & Offices

C. Living Room & Dining Room

D. Supermarket & Hotel

E. Hospital & museum

F. Shop & Library



8. Our Services:


1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information



9. FAQ:


Q1: What is the warranty for our lamps?
A1: For the lamps,we have 3 years warranty.

Q2: How do you ensure the quality
A2: We get three QC processes:1.For raw materials;2.During the half of production; 3.Final QC test one by one after aging 12 hours.

Q3: How to do if any quality problems on our side in the warranty time?
A3: First, take pictures or videos as proof and send to us.We will replace new ones for free.

Q4: OEM OR ODM accepted?
A4: Yes,we can do OEM & ODM,logo on the light or package both are available.

Q5: Can we get support if we have our own market position?
A5:Please inform us your detailed market demand, we will discuss and propose helpful suggestion for you,

to find the best solution for you.

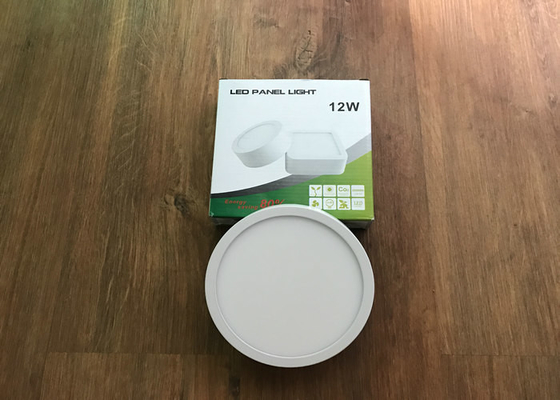

12w No Flicker Surface Mount Led Light Panels 1200lm Excellent Heat Dissipation 012w No Flicker Surface Mount Led Light Panels 1200lm Excellent Heat Dissipation 1
