China LED Flat Panel Light manufacturer

Uniform Lighting Led Flood Lamps Outdoor , Commercial Led Flood Light 20 Watt

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: TUV CB CE FCC SAA RoHS
Model Number: AD-XTGD-020A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: 60*33.5*21.5 cm 20 pcs
Delivery Time: 3-5 days for samples, 7-15 days for mass order
Payment Terms: L/C, TT, Western Union, MoneyGram, Paypal
Supply Ability: 10000 pcs / day
Contact Now

Detail Information

Model: AD-XTGD-020A Power: 20w
Voltage: AC85-277V 50 / 60Hz CCT: 2700K - 6500K
LED Brand: Osram LED Chip: SMD3030
High Light:

commercial led flood lights


outdoor led flood lights

Product Description

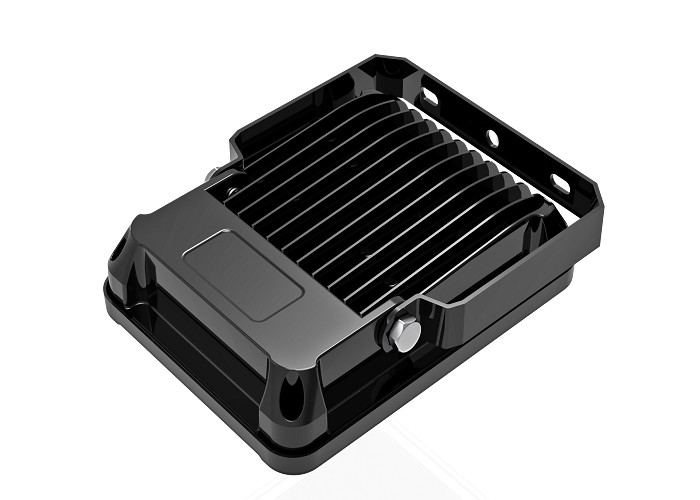

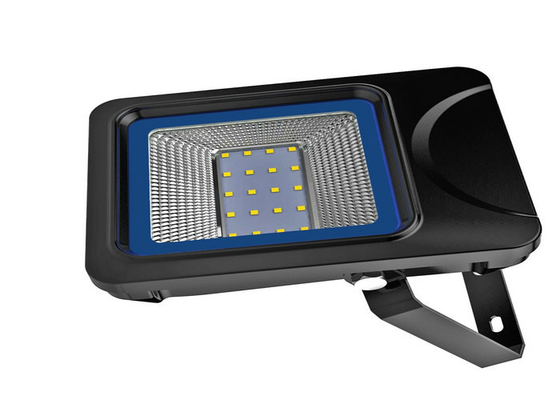

Waterproof LED Flood Light 20W IP66 TUV Osram LED SMD3030 Aluminum Black Fixture



1. Specification:


Input voltage: AC85-265V
Model: AD-AD-XTGD-020A
Power: 20W

Power factor: ≥55%
Shell material: aluminum + tempered glass
LED Driver: CE/TUV/SAA driver
Shell color: black
IP rating: IP66
Size: 175*135*44mm
Working temperature: -20℃--60℃
Life span(hour): 30000
Warranty: 3 years
Place of Origin: China
Certificate: CE RoHs



2. LED Chips Technical Data:


LED Brand: Osram

LED Chip: SMD3030

LED Power: 1W

LED Lumen: 110-130LM/W

LED Current: 300mA

LED Voltage: 18V

LED CCT: 3000K 4000K 6500K

LED Quantity: 20pcs

Beam Angle: 120°

Working Temperature: -40℃~+80℃



3. Description:


1. Housing:Aluminum heavy housing, thick radiator,good heat dissipation
2. Material: Aluminum-tempered glass
3. Refletor: FishScale reflector can be anti-glare.
4. Stainless steel screws, attached clip for better waterproof.
5. LED driver: Isolated constant LED Driver,our driver passed the TUV certificate.Taiwan CapXon & China stocked company Aishi capacitance;On-bright IC;satble solution&good quality.



4. Features:


-- High efficiency LED constant current driver.
-- Uniform lighting.

-- Quick start.
-- No stroboscopic effect, no glare.
-- High heat-sink efficiency: scientific design to help heat sink.
-- No mercury or lead; environmental protection.--Save 60% energy than traditional light.
-- BV,CE,LVD,VDE,EMC and RoHS certified.



5. Packing:


Product Size 175*135*44mm
Product Weight 0.9kg
Packing Size 60*33.5*21.5cm
Packing Quantity 20pcs
Packing Weight 19kg



6. Other Items:


Model Item Power Lumen
AD-AD-XTGD-010A 10W 10000LM 129*99*44mm
AD-AD-XTGD-020A 20W 20000LM 175*135*44mm
AD-AD-XTGD-030A 30W 30000LM 215*175*47mm
AD-AD-XTGD-050A 50W 50000LM 275*225*48mm



7. Application:


A. Highway

B. Courtyard

C. Football Field

D. Factory



8. Maintenance Instructions:


1. Please make sure that the power has been cut off before maintenance.

2. Regularly clean the glass of the lamps to keep the light transmittance of the led flood light.

3. The dust of the shell and the heat sink of the lamps need to be cleaned regularly to keep good heat


4. Do not use water or strong corrosive solution for cleaning, preferably with a dry cloth



9. Shipping&Delivery:


Shipping Time: Samples 5-7 days by DHL / Fedex, bulk order 30 days by sea.

Delivery Time: samples 3-5 days, bulk order 20 days.



10. Why Choose Us:


1.Advanced machinery, well trained workers.
2.More than 20 years experience in lighting&switch industry
3.Unique designed, good quality, competitive price.
4.Full range of indoor and outdoor LED lighting solution
5.Zero improper after-service if any quality issue happened



Uniform Lighting Led Flood Lamps Outdoor , Commercial Led Flood Light 20 Watt 0

Uniform Lighting Led Flood Lamps Outdoor , Commercial Led Flood Light 20 Watt 1

Uniform Lighting Led Flood Lamps Outdoor , Commercial Led Flood Light 20 Watt 2
