China LED Flat Panel Light manufacturer

Super Bright Stadium Waterproof LED Flood Lights 30 W 6500K 0.9PFC

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: TUV CB CE FCC SAA RoHS
Model Number: AD-FLC-PIR-30W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20pcs
Delivery Time: 3-5 days for samples, 7-15 days for mass order
Payment Terms: L/C, TT, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs / day
Contact Now

Detail Information

Function: PIR Sensor IP Rating: IP66
Application: Outdoor Lighting Power: 30W
PFC: 0.9 CCT: 6500K
High Light:

outdoor led flood lights


led flood lamps

Product Description

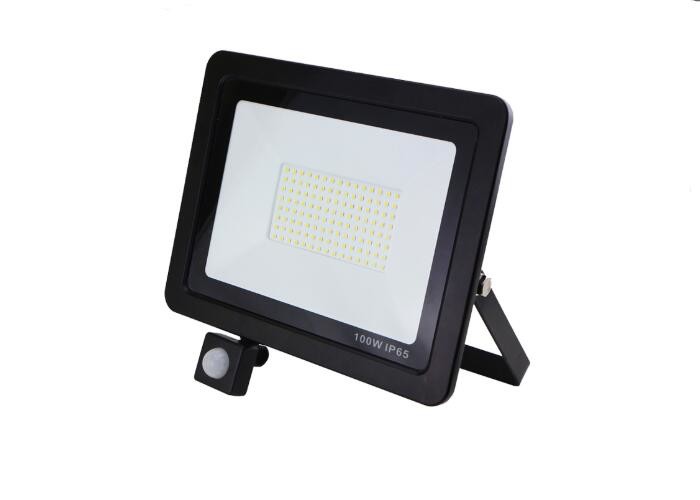

PIR Sensor Waterproof LED Flood Lights 30W Stadium Portable 6500K 0.9PFC



1. PIR Sensor Waterproof LED Flood Light Specification:


Watt(W) 10W 20W 30W
Lamp Luminour Efficiency 15 24 36
Lamp Lumen 1000LM 2000LM 3000LM
Size(cm) 9x7.1X2.2 16.9x12.9x2.8 20X15.5X2.6
Input Voltage(V) AC100-140V/AC180-265V
CCT 2700-6500K
Beam Angle(°) 120°
Work Temerature(°) -20~50 degree
Working Lifetime(H) 50000Hours
Lamp Body Material Aluminium Die-casting
IP Rating IP66
Driver Brand Driverless
LED Chip Chinese Sanan 2835mil
CRI(Ra>) 70
Certification TUV GS CB CE ROHS SAA
Original Ningbo,China
Warranty(Years) 3Years
PF(>) 0.9
Body Color Black,White,Grey
Delivery Time 5-7Days for samples, 20-30days for batch goods.
Payment Term T/T , L/C , Western Union , Payal
Packaging Standard carton Package or according to you request .
Shipping Port Guangzhou,China
Samples Deivery FEDEX/DHL/UPS/TNT for samples,Door-to-Door
Batch Goods By Air or by Sea for batch goods , for FCL ,Airport receiving
MOQ 500pcs


2. Features:


1. Using ADC12# pure aluminum material, percison casting, pure and high density, excellent heat dissipation.
2. Integrated cooling design, effectively solve the heat problem, ensure the light's source life.
3. Super bright SMD patch lamp board with high lumen chip, the double gold wire design increased current makes luminous brightness, long life and stability.
4. Professional tempered glass, explosion-proof, high transmittance, reach 95%
5. Waterproof wide voltage led driver, stable quality, long life.

6. The flood light is with the connector which is sealed with the cover, once the user takes off the cover and plug-in the PIR, it becomes a flood light with PIR function.



3. About Sensor Usage:

1) LUX: Set up the working time of sensor
A: When swithc to sun, the sensors work throughout the day;
B: When switch to moon, sensor work at night only and automatically
2) TIME set up the delay time of the sensor (± 2sec-4 ± 1min),
3) SENS Adjusting the sensitivity of the sensor. Generally dont need adjust
4) Detecting Distance:4-12m



4. Installation Type:


A. Wall installed

B. Ceiling installed

C. Floor installed



5. Advantages:


1. Patend New waterproof led flood light

2. Fish-Scale type reflector

3. Fin heat dissipation design

4. Ultra thin intergrated housing

5. Double waterproof IP66

6. Rust-Proof, sunken screw hole

7. Strengthened curved holder



6. Application:


PIR Sensor Waterproof LED Flood Light could be used for outdoor lighting, it is used very widely, football field, large-area work sites and mines, building outlines, stadiums, overpasses, monuments, parks, and flower beds.



7. FAQ:


Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 1000pcs.


Q3. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
