China LED Flat Panel Light manufacturer

Side Lighting Led Round Ceiling Light , 18w 3000k Dimmable Led Light Panel

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-ERP-PAL-18W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 18W Voltage: 85- 265V AC
LGP: PMMA Material: Aluminum
LED Chip: Epistar LED Driver: IC Wide Voltage
Highlight:

dimmable led ceiling panels

,

dimmable led flat panel

Product Description



Dimmable LED Silim Panel Light 18W 3000K 1600LM 80Ra Side Lighting Aluminum 120°





1. Description:



Dimmable LED panel light is a kind of modern and decorative lighting, which is ideal for Hotel, Shop, Meeting Room, School, Hospital and Residential Facilities. The shape is round and square, and material is aluminum, power is 6W, 12W, 18W and 24W. Dimmable LED panel light has main advantages of low-carbon energy, adapting to global energy conservation, low-carbon lifestyle trends. The life span for dimmable LED panel light is 50000 hours, equivalent to 50 times of incandescent lamp. Dimmable led panel light is using a dimmable led driver to realize the function of dimmbale.





2. Triac Dimmable led driver advantages:



Dimmable LED Panel Light the most important part is the triac dimmable led driver. Our Triac dimmable led driver have many advanyages, they are:



1. small size, compact design

2. Over temperature protection

3. Anti-lightning strike

4. Cooling by free air circuit protection

5. Output short circuit protection

6. Meet RoHS requirements

7. Isolation Circuits design

8. Output open circuit protection





3. Technical data sheet:



Model AD-EPR-PAL-18W
Input Voltage AC85-265V
LED Chip SMD2835
LED Type 0.2W
LED Lumen 24-26LM
LED Quantity 90pcs
Power 18W

LED Brand

Taiwan Epistar
CCT 3000K / 4000K /6000K
Lumen 1550LM ± 100 LM





4. Specification:



Size(D*H): 175*8mm
Cutout size: 155mm

Color Rendering Index: 80RA

Material: Aluminum(fixture)+PMMA(LGP)
Beam angle: 120°
IP rank: IP20
Operation temperature: -20℃~+60℃
Lighting Distance: 1-4meters
Mounting height: 2-3meters
Place of Origin: China
Approval mark: CE RoHs
Warranty: 2 years




5. Electrical Parameters:



Light guide plate(LGP) brand:Japan Mitsubishi
LGP thinkness: 3mm
LGP technology: Dot Laser
LGP light transmittance: 90%
Lifespan: (LM80) 30000H
Size(mm): φ175*H8mm
Cutout size(mm): φ155mm
Input Voltage: AC85-265V 50/60Hz
Power factor: PF≧0.9
Driver: Dimmable Smart IC Isolated constant current
Rated lifetime: 50.000 hours


6. Advantages:



1. Color housing is different, white, black, golden, nickel, chrome, bronze

1. SMD2835 LED is more bright and longer lifespan.
2. High luminous efficiency and save more than 90% energy than incandescent lamp.
3. No UV, IR or mercury is with environment friendly benefit.
4. Ultra-thin design, simple and fashionable appearance.

5. CRI is up to 80Ra, better lighting performance.





7. Packing:



Packing Size: 39*24*38cm
Packing Qty: 20pcs
Packing Gross Weight: 8.2kg



8. Shipping&Delivery:


Shipping method DHL / Fedex / TNT / Air Shipping / Sea Shipping
Shipping time 3-7 days for express/air shipping, one month by sea
Samples Delivery Time 3-5 days
Official Order Delivery Time 16 work days


9. Features:


(1)  Low cost of maintenance

(2)  2 years warranty service

(3)  CE RoHS CB 3C

(4)  Long lifespan ensurance

(5)  No UV, IR or mercury

(6)  Perfect heat dissipation




10. Our Services:



A. Pre-sale Service:
1. Your inquiry for our products will be replied in 24 hours
2. Customized desgin is available, OEM and ODM are welcomed
3. Make the products as your requirement
4. Protection of your sales area, ideas of design and all your private information

B. After-sale Service:
1. 24 hours around the clock & 2 years warranty
2. Life-long maintenance service for the product
3. For problematic items, We are ready to exchange them or replace them with an equivalent upon our receipt of previous.
4. For all your inquiries, please contact us immediately, We will reply you as soon as possible.

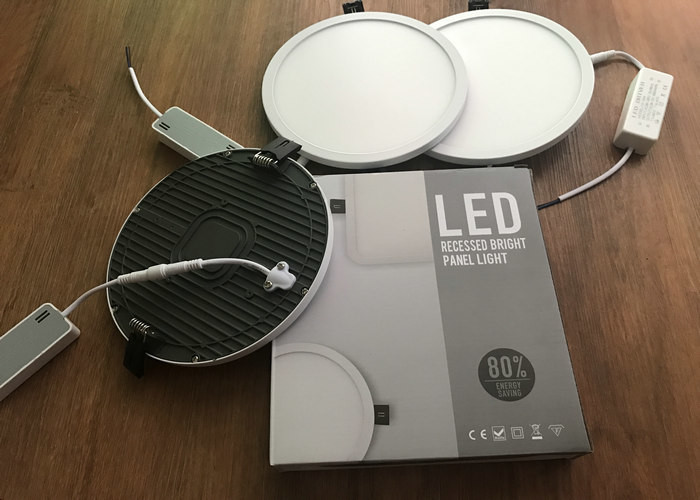

Side Lighting Led Round Ceiling Light , 18w 3000k Dimmable Led Light Panel 0

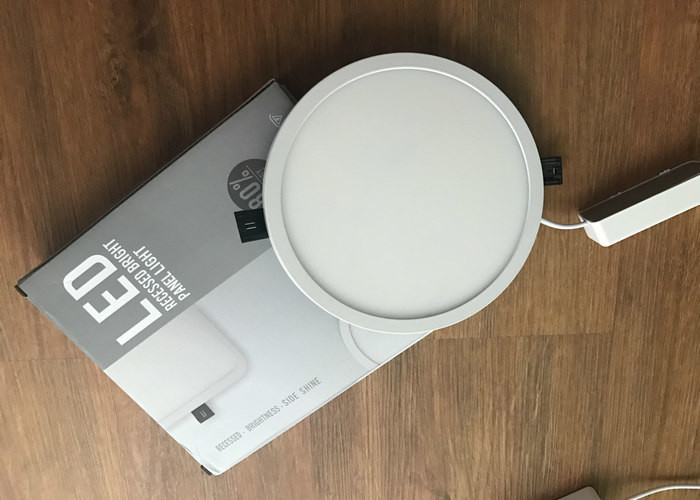

Side Lighting Led Round Ceiling Light , 18w 3000k Dimmable Led Light Panel 1
