12 Watt Led Slim Panel Light Aluminum White Housing Ce 960lm For Supermarket

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-SPAL-12W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Model: AD-SPAL-12W Power: 12W
Lumen: 960LM Warranty: 3 Years
Material: Aluminum CCT: 2700-6500k
High Light:

thin led light panel


slim led ceiling light

Product Description


12w LED Slim Panel Light Square Aluminum White Housing CE 960LM 3 Years Warranty



1. Installation Instruction:


Installation Instruction 01:
1.1: Turn off the power
1.2: Open a hole according the size of lamp on the ceiling
1.3: Unpack the led slim panel light and install the lamp holder like below.
1.4: Connect the wire of the lamp with the ceiling power wire.
1.5: Put the spring holder straight and fix the lamp into the hole.
1.6: Fix the lamp
1.7: Turn on the Power to light up the lamp.


Installation Instruction 02:
2.1: Open hole in the ceiling
2.2: Connect the wire to LED Driver
2.3: Put the spring holder sraight hole on the ceiling
2.4: Finished Installation


Please see the following pictures to help you understand the instruction steps, thank you.



2. Specification:


Power Voltage Height Diameter Hole size LED Quantity Material CRI Lumen
3W AC85-265V 12mm 85mm 70mm 15pcs SMD2835 Aluminum 80 240LM
6W 120mm 105mm 30pcs SMD2835 480LM
9W 146mm 135mm 45pcs SMD2835 720LM
12W 170mm 155mm 60pcs SMD2835 960LM
15W 200mm 180mm 75pcs SMD2835 1200LM
18W 225mm 205mm 90pcs SMD2835 1440LM



3. Technical Data:


Brand: Ado
Product Name: 12W square led slim panel light
Power Consumption: 12w
Input Voltage: AC85-265V
Product Size: 170*12mm (Hole Size is 155mm)
Light Efficacy: 80 lm/W
Light Source: Epistar SMD2835 0.2W/PCS
Driver: high quality isolated driver
Luminous Flux: 960LM
Beam Angle: 120 Degree
Housing materials: Aluminum
Main Material: Aluminum+PMMA
Light Color: Warm white / Nature White / Cool White
Color Temperature: 2700-6000K
CRI: Ra≥85
Lifespan: 50.000H



4. Description:


LED panel light is a high-grade indoor lighting fixture. Its outer frame is made of anodized aluminum alloy. The light source is LED. The whole lamp design is beautiful and simple, and the atmosphere is luxurious. It not only has good lighting effect, but also can bring people The feeling of the United States.


LED panel light is unique in design. Light passes through the light guide plate with high light transmittance to form a uniform planar light-emitting effect. The illumination uniformity is good, the light is soft, comfortable and bright, and it can effectively alleviate eye fatigue. LED panel lights also protect against radiation and do not stimulate the skin of pregnant women, the elderly, or children.



5. Features:


A. LED panel light design flexibility
LED is a kind of spot light, the designer can design various light sources with different shapes and different particles according to customer's requirements through flexible combination of points, lines and surfaces. Its design is very flexible.

B. LED panel light illumination is high
The LED panel light adopts a uniform light-reflecting panel and a sealed design, which is matched with an efficient light guide plate and an aluminum alloy material. Uniform luminous effect, higher illumination.

C. LED panel light less heat
The LED panel light is light and thin, with complete heat dissipation function, low power, and low heat generation.



6. Application:


LED Slim panel lights are suitable for indoor lighting in hotels, bars, western restaurants, cafes, home interiors, etc. They can directly replace the original ordinary fluorescent lamps and have higher brightness.



7. About Customized Services:


1. Square slim led panel light  back side could be labeled with your logo / brand and company information, this is for free. Also we could laser print your customized information, this need to be paid based on your order quantity. Please inform us when you place order.


2. The inner box could be customized with your box design, white box or colorbox is available. If order quantity is more than 5000pcs, your box design customized service is free, no extra charges. If you don't want box design, we could put label with your logo on the box.


3. The outer carton also could be customized with your logo, or only put label on it.

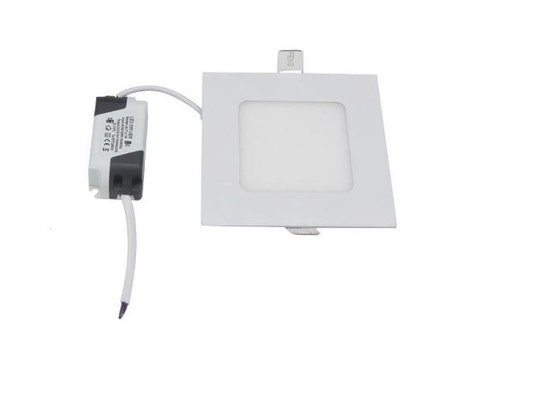

12 Watt Led Slim Panel Light Aluminum White Housing Ce 960lm For Supermarket 0

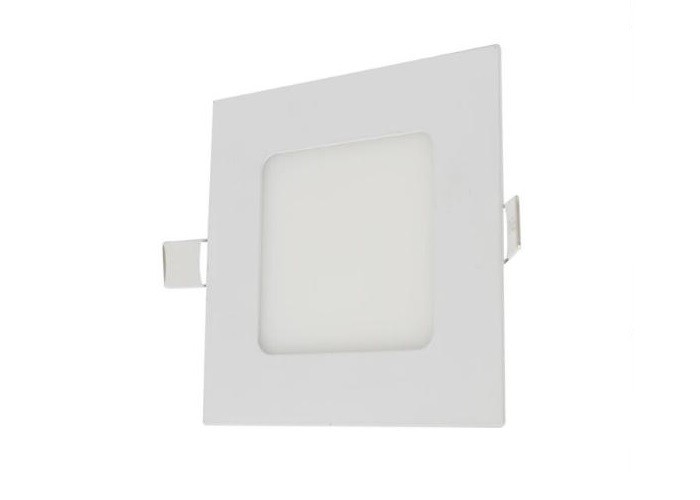

12 Watt Led Slim Panel Light Aluminum White Housing Ce 960lm For Supermarket 1

12 Watt Led Slim Panel Light Aluminum White Housing Ce 960lm For Supermarket 2
