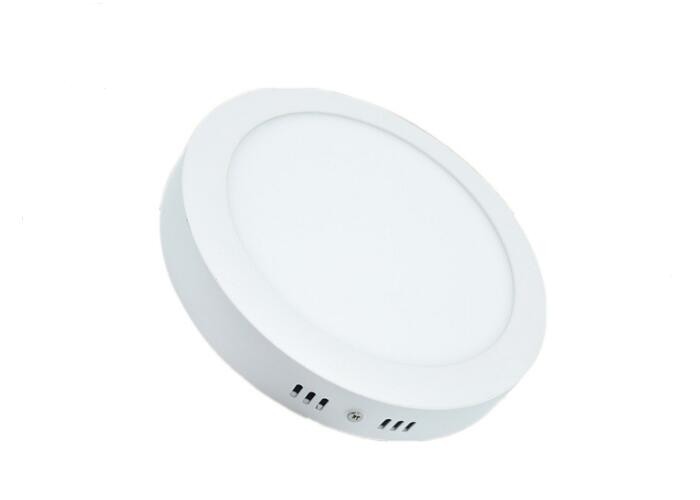

80ra Office Led Slim Panel Light 18w 4000k 225mm With Good Color Rendering

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-SPAL-24W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Model: AD-MZ-PAL-18W Voltage: AC85-265V
Lumen: 1920LM Size: 225mm
Material: Aluminum Warranty: 3 Years
CCT: 4000K Certificate: CE
High Light:

thin led light panel


ultra slim led panel light

Product Description


18w LED Slim Panel Light Round Surface Mounted 4000K 225mm CE Aluminum 80RA



1. Advantages:


A. LED slim panel light long life
LED theoretical life up to 100,000 hours. If calculated by 8 hours per day, its theoretical life span is more than 27 years. The theoretical life of the CPL lamp cup is even more than 100,000 hours.

B. LED slim panel light changes in various ways
LED panel light can adjust the light color according to different needs and environmental changes, not only does not produce radiation and glare, but also can protect vision, light color is more gentle.

C.  LED slim panel lights strong vibration resistance
In LED panel lights, the LED light source is a high-rigidity resin luminous body instead of a tungsten glass and is not easily damaged. Therefore, its anti-vibration force is relatively high, and the ambient temperature is highly adaptable.



2. Specification:


Watt: 18w
Type: Surface Mounted
Lumen: 85-88 Lm/w
Voltage: AC85-265v
Material: Aluminum
CRI >80
Certificates: CE, EMC, LVD, ROHS
Warranty 2 Years
Chip: SMD 2835
LED Brand: Epistar
LED Driver: Isolated IC constant current wide voltage
IP Rating: IP44
Size: 225*40mm
Color temperature: White, Warm white, Natural white (2800-7000K)



3. Features:


1. High-quality aluminum shell, better heat dissipation, less light decay, longer life.

2. Good color rendering, soft light, uniform light spot, pure light color

3. Scientifically-designed heat dissipater with much better cooling effect;

4. Approval with CE, RoHS certificate and ISO 9001 quality system standards.

5. Shockproof, Solid-State, High Shock / Vibration Resistant

6. Energy saving and green environmental

7. High-Luminous efficiency, 80-90Lumens/W



4. Quality Control:

1. 100% of the lamps will be tested and passed all QC procedures before shipping
2. Defective items will be compensated immediately or in next order.


5. Other model specification:


Power Height Diameter Lumen
6W 40mm 130mm 400LM
12W 170mm 960LM
18W 225mm 1440LM
24W 300mm 1920LM



6. Precautions:

The power must be turned off during installation. Do not install it with electricity.

The product must be connected to a matching constant current drive power source before it can be used normally. If the driver is DC24V, please notice that the DC24V input of the constant current drive power source must be connected with a power adapter and cannot be directly connected to the mains. If the driver is AC85-265V, then can be directly connected to the mains.

When selecting the power adapter, the power adapter power should have a certain margin. The total power of the fixture divided by 0.8 is the output power of the power adapter to ensure the long-term stability and life of the power adapter.
