China LED Flat Panel Light manufacturer

2000lm 24w Ceiling Surface Mounted Lights Ac85 - 265v No Ultraviolet Ray

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-MZ-SPAL-24W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 24W Voltage: AC85-265V
Lumen: 2000LM Size: 300mm
Material: Aluminum Warranty: 3 Years
CCT: 6000K CRI: 80Ra
High Light:

thin led light panel


slim led ceiling light

Product Description

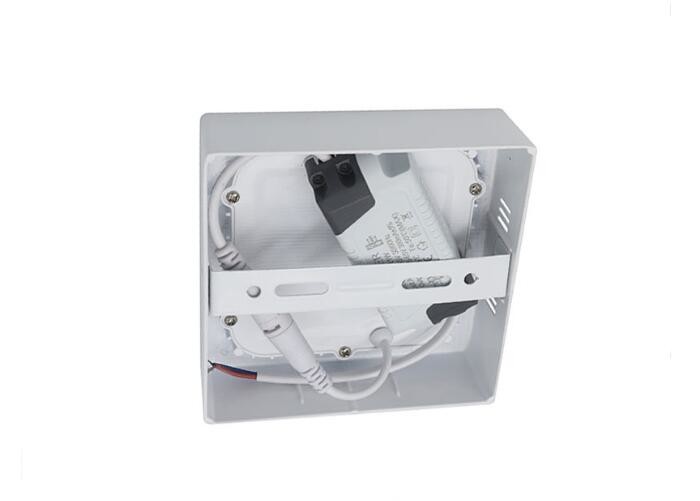

24W LED Slim Panel Light Surface Mounted 300mm 6000K Aluminum 80RA 2000LM



1. Description:


We have 3 series led panel light, one series is slim led panel light, second is flat led panel light, third is suspended led panel light. Slim panel light have latest new design with narrow edge and market common design. Both 2 designs own round and square shapes. And the installation is the same, recessed and surface mounted. Surface mounted led panel light can be widely used on ceilings and wall. It is a good choose for home lighting and office lighting. it is easy installed with screws. And we have installation instruction for it. Power is 6w, 12w, 18w and 24w, height is the same 40mm, diameter is 130mm, 170mm, 225mm and 300mm. Color temperature is 3000K, 4000K and 6000K.



2. Specification:


Size(D*H) 300*40mm
Voltage AC85-265V
Material Aluminum(fixture)+PMMA(LGP)
Beam angle 120°
Operation temperature -20℃~+60℃
Lighting Distance 1-4meters
Mounting height 2-3meters
Place of Origin China
Warranty 2 years
Approval mark CE RoHs
Power factor PF≧0.9
Light guide plate(LGP) brand Japan Mitsubishi
LGP thinkness 3mm
LGP technology Dot Laser
LGP light transmittance 90%
Lifespan: (LM80) 30000H



3. LED Slim Panel Light Advantages:


Light Adjustment:

The light color of Ado LED Slim panel lights are 3000K warm white, 4000K neutral white, and 6000K cool white, it can be adjusted according to the different needs or circumstances. Also it could be dimmbale, with dimmer, you can control the color, the light could be brighter or darker. It provides eye-friendly soft light that can protect eyesight with no radiation and glare or unpleasant light. Here all colors are moderate accordingly people can look directly at the light without dazzling.



Customizability is the principal advantages of slim led panel light. Because of their thinness and the way that the LEDs are fixed into the panel itself, they can be shaped into almost any type preferred. Such as round, square. Different size are available, 3w, 6w, 9w, 12w, 15w, 18w and 24w is common power, larger power and larger size could be customozed. These allow them to be used for applications where the use of traditional incandescent lighting would be difficult or impossible, like backlighting for molded bar tops.



4. Quality Control:

1. 100% of the lamps will be tested and passed all QC procedures before shipping
2. Defective items will be compensated immediately or in next order.


5. Other model specification:


Power Height Diameter Lumen
6W 40mm 130mm 400LM
12W 170mm 960LM
18W 225mm 1440LM
24W 300mm 1920LM



6. Shipping:


1. FedEx, DHL, UPS, EMS, TNT for samples

2. By Air or by sea for batch goods. For FCL, Air port and porting receiving.

3. Customers specifying freight forwarders or negotiable shipping methods .

4. Delivery time 3-7 days for samples,5-25 days for batch goods.
