China LED Flat Panel Light manufacturer

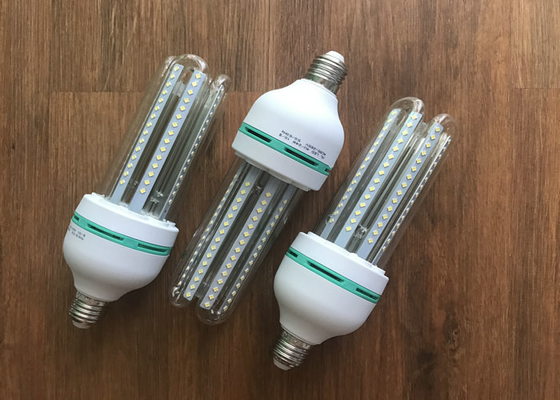

12w 16w Led Corn Lamp E27 G24 B22 6000k Environment Friendly For Factories

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-4U-16W
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: 50pcs
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

LED Chip: SMD2835 Power: 16w
PFC: 0.9 Base: E27 G24 B22
CRI: 80Ra CCT: 6000K
High Light:

led corn lamp


led corn light bulb

Product Description


LED Corn Light Energy Saving Bulbs 12w 16w G24 E27 B22 6000K 0.9PFC 80Ra SMD2835

1. Description:

LED Corn Light has a large range of wattage, it is 3w, 5w, 7w, 9w, 12w, 16w, 20w, 24w, 32w and 50w, the base also could be E14 , E27, B22, G24, E40. So it can be widely used in many places which can meet different needs. The important parts of this corn light are led driver, led chip, PBT material, Aluminum PCB, glass cover and base. The LED Driver is isolated IC constant current with wide voltage, it is resistant to high temperatures and surges, more safety, smart and intelligent driver solution. The LED Chip is from Taiwan Epistar, one chip is 0.2w, lumen is 24LM. Luinous efficiency is high, with better CRI up o 80Ra. The Aluminum PCB brings good heat dissipation, and the base is international standard size, can repalce the old lamps which has the E27/ E40 base. Our products also has CE RoHS certificates which is Europe market quality requirements.



2. Features:

1. Base: E14 , E27, B22, G24
2. Power: 3w, 5w, 7w, 9w, 12w, 16w, 20w, 24w, 30w
3. CCT: 2700K, 4000K, 6000K, red, green, blue, RGB.
4. Cover: clear, milky, frosted
5. Dimmable, non dimmable
6. CRI>80Ra, CRI>90Ra
7. Voltage: AC85-265V, AC220V, DC12-85V, DC12V, DC24V
8. Lumen: 90LM/W, 100LM/W,
9. 2 years warranty, 3 years warranty



3. Specification:


Model LED Qty Lumen CCT Base Qty/CTN CTN Size
2U-3W 16PCS 270LM 3000K 6500K E27 B22 E14 100PCS 42*21*24cm
3U-5W 24PCS 450LM 3000K 6500K E27 B22 E14 100PCS 48*25*25.5cm
3U-7W 36PCS 630LM 3000K 6500K E27 B22 E14 100PCS 48*25*32cm


4. Technical Data:


Model number: AD-4U-16W
Power: 16W
Input voltage: AC85-265V
LED Brand: San'An
LED Type: SMD2835
Chip Quantity: 80pcs
Luminous efficiency: 100-110LM/W
Total Lumen: 1450LM
Color temperature(K): 2800-6500K
CRI(Ra): 80
Base: E27
Material: Glass
Cover color: Clear / Milky
Cover shape: 4U
Lamp Size(mm): Φ58×180mm
IP Rating: IP20
LED Driver: Wide Voltage IC Constant Current
Life span: 30000 hours
Warranty: 2 years
Certificate: CE RoHs



5. Advantages:

1. High quality and long life, can light up to 30,000 hours
2. Environment friendly, low heat, no IR or UV radiation, low consumption
3. High light transmittance>90% ,more soft light.
4. Safe power interface, easy to install and dismantle
5. Color rendering index>80%,soft brightness .

6. Working environment -20°C~45°C, suitable for unusual climate.

7. Save power more than 90% by ordinary lamp

8. No mercury or other hazardous materials, accord with RoHs.

9. No flash, strobe and glare



6. Warranty Issues:

Our product warranty is 2 years, under normal use conditions, our led lamps quality assurance is based on

the product's correct installation, use and maintenance; due to improper installation, use and maintenance

of products, and the product damage, does not belong to the scope of the guarantee period, the company

will choose repair, replacement (parts) or replacement of new products, etc. Exceeding the quality

guarantee period will be appropriate charged for materials and labor costs.


If products are failure because of the quality, we will send you new good products for free, but you need to send us the failure products pictures and video, then we can check the failure reasons.


12w 16w Led Corn Lamp E27 G24  B22 6000k Environment Friendly For Factories 0
