No Dimmable E27 LED Corn Light 20W Aluminum PCB SMD5730 2250LM 2 Years Warranty

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS 3C FCC
Model Number: AD-DB-20W
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: 50pcs
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Voltage: AC85-265V Power: 20W
LED Chip: SMD5730 Lumen: 2250LM
Base: E27 G24 E40 B22 Beam Angle: 360 Degree
High Light:

led corn lamp


corn led bulb

Product Description

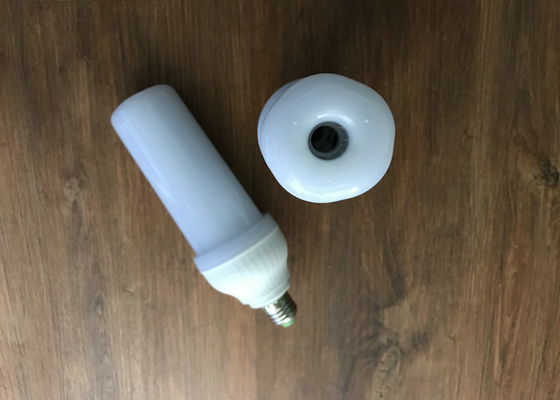

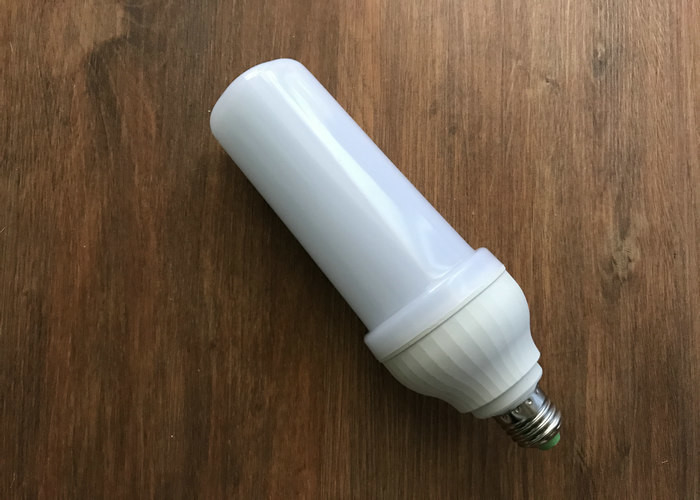

New LED Corn Light 20W Aluminum PCB SMD5730 2250LM 360 degree E27 Milky PC Cover


1. 20W LED Corn Light Technical Data Sheet:


Item No. AD-DB-20W Input Voltage AC85-265V
Power 20W LED Brand Epistar
Lumen 2250lm LED Chip SMD5730*104pcs
Driver Wide Voltage IC Constant Driver LED Power 1W
Type E27/E26/B22 Warranty 2 Years
CRI Ra>80 Certificate CE RoHS
Material PC+Alu Life Span 30000 Hours
Lamp Size Φ73*205mm Origin China
Beam Angle 360° Dimmable No
Light Color WW NW CW PFC 0.9



2. LED Corn Light Description:


1. New products can fully the traditional energy saving lamps.

2. New shape and creative design, 360 degree beam angle, bigger lighting range.

3. Smart heat dissipation structure(patent design)

4. Beautiful light, no shadow, no dark space

5. A variety of lamp holder optional, scope of application. (E27, E14, B22, E40)

6. Wide voltage AC85-265V, intelligent constant current led driver, power efficiency is high than 90%.

7. CE ROHS certificates.



3. Other Model led corn light specification:


Item No. AD-DB-20W AD-DB-26W  AD-DB-40W AD-DB-48W
Power 20w 26w 40w 48w
Lumen 2250lm 2860lm 4250lm 4915lm
Driver Wide Voltage IC Constant Driver Wide Voltage IC Constant Driver Wide Voltage IC Constant Driver Wide Voltage IC Constant Driver
Base Type E27/E26/B22 E27/E26/B22 E27/E26/B22 E27/E26/B22
CRI Ra>80 Ra>80 Ra>80 Ra>80
Material PC+Alu PC+Alu PC+Alu PC+Alu
Lamp Size Φ73*205mm Φ73*225mm Φ85*250mm Φ85*270mm
Beam Angle 360° 360° 360° 360°
Input Voltage AC85-265V AC85-265V AC85-265V AC85-265V
LED Brand Epistar Epistar Epistar Epistar
LED Chip SMD5730*80pcs SMD5730*128pcs SMD5730*132pcs SMD5730*162pcs

4. Application:


It suits for professional application with indoor environment like in hotels, restaurants, offices, houses, meeting rooms, factories, workshops and supermarkets. Ideal replacement for conventional incandescent lamp.



5. Advantages:

1. Wide voltage range, universal use. 85V ~ 264VAC full voltage range constant current, to ensure that life and brightness from voltage fluctuations.
2. EXCELLENT PERFORMANCE--Warm white 2700K to Cool white 6500K, 90-100LM/W 270 Degree Beam Angle.
3. The long life, long warranty, and various colors, comfortable and elegant, the best choice.
4. Universal standard lamp holder can directly replace existing halogen lamps, incandescent lamps and fluorescent lamps.
5. Green environmental protection: does not contain mercury and antimony and other harmful elements, conducive to recycling, ordinary lamp contains mercury and lead and other elements.

6. Standard IEC size, standard lamp holder, compatible with electronic transformer

7. High color rendering: good color reproduction, clear vision, see the object will not be distorted.


6. Why Choose Ado Lighting company?


1. Professional sales team and workers and engineers

2. Rich Experiences: 5 years' research and development in LED lighting;

3. Good Quality control: ISO9000 quality system and IBM internal quality system are carried out in the factory.

4. Warm Services: Mothly and annual follow-up for your order and solve problems

5. First-class Equipments: Dust-free workshop, and top optical lab for LED lamps test.

6. OEM & ODM services: Your logo on the product and packing as well as customized design can be acceptable.

7. 2 years and 3 years warranty and 5 years warranty for led lights.
