3 Watt G4 Base Led Bulb , Ac 220v Smd2835 Energy Saving Light Bulbs 40pcs Led

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-G9-2835-40V
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: 100pcs
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 50,000 pcs per day
Contact Now

Detail Information

Power: 3W Voltage: AC220V DC12V
Material: Silicone IP Rank: IP20
LED Type: SMD2835 LED Quantity: 40pcs
Beam Angle: 360 Degree Warranty: 2 Years
High Light:

g4 dimmable bulbs

,

g4 base led bulb

Product Description

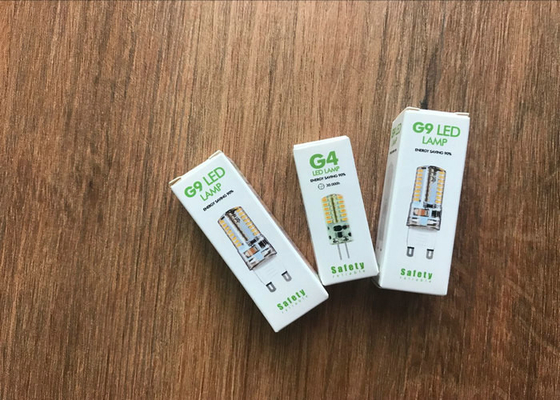

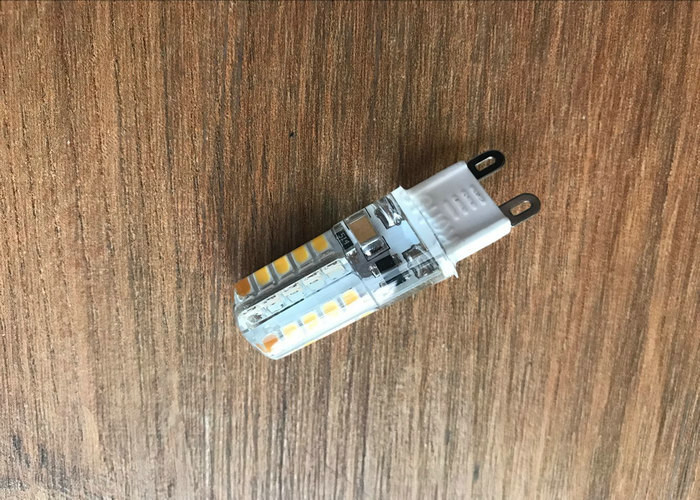

3W G4 LED Light AC220V SMD2835 Silicone 40pcs DC12V G9 LED Light 360 Degree





1. Description:



The luminous efficiency of LED G4 lamp beads is determined by how many layers can be pressed in the same thickness. The thinner the single-layer material, the more layers that can be stacked, the higher the luminous efficiency. Now generally the thickness of each layer is only 2-20 microns, which also determines the epitaxial wafer production is the most difficult part of the entire LEDG4 lamp beads production process. 2, cutting - LEDG4 lamp beads core: the equivalent of the filament from the tungsten material, the difference is that the epitaxial wafer after cutting is box-shaped.




3. Detailed Technical Data:


Model number AD-G9-2835-40V Power 3W
Input voltage AC220V LED Brand San'An
LED Type
SMD2835
Total Lumen 270LM
Chip Quantity 40pcs Color temperature(K) 2800-6500K
Base G9 Material Silicone
Size 17*50mm IP Rating IP20
LED Driver IC constant current Life span 30000 hours
Certificate CE RoHS EMC Warranty 2 years
Luminous efficiency 100-110LM/W CRI(Ra) 80





3. Features:



1. Save Money Reduces labour and maintenance cost

2. Power consumption as low as 1-3W

3. Lower heating during operation

4. Environment-friendly and no UV or IR radiation;

5. Operating temperature: -25 to +55 degree Celsius

6. Lumen decay: 3 within 1000 hours. Then Lumens be stable.

7. Great energy-saving effect for G4 G9, save energy by over 70% comparing with traditional lamps.

8. Long lighting distance and wide lighting areas.



5. Other Models Specification:





Model Base LED Quantity Voltage Power Lumen
AD-G4-3014-48D G4 SMD3014*48pcs DC12V 2W 160-180LM
AD-G4-3014-48A G4 SMD3014*48pcs ACDC12V 2W 168-180LM
AD-G4-3014-57A
Top lighting
G4 SMD3014*57pcs ACDC12V 2.8W 190-210LM





6. Packing:



We offer OEM packings for clients, with clients own LOGO or design.

1. Products are packed per box, color box or single/double blister packing box, according to clients' request.
2. Brown or white inner box can be provided, or hot shrinkage films packing.
3. Use strengthen brown carton box as outer box.
4. For some products, we will apply pallets for container loading.





7. Shipping method:



1. By Express: DHL, TNT,UPS, Fedex,EMS,a fast and safe way for shipping, normally 3-5 working days for delivery

2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;

3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.

4. Your shipping agent or forwarder, collect goods from our factory
