China LED Flat Panel Light manufacturer

Ip20 High Power Led Strip Lights 240led Ul Listed For Advertisement Lighting

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS UL
Model Number: A2835-240-V24
Payment & Shipping Terms:
Minimum Order Quantity: One Roll
Price: Negotiation
Packaging Details: 50 Rolls One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 meters per day
Contact Now

Detail Information

Power: 25W Voltage: DC24V
LED Chip: SMD2835 LED Brand: Epistar
LED Qty: 240LED CRI: 90Ra
High Light:

led flexible tape light


smd led strip lights

Product Description


DC12V / 24V LED Flexible Strips SMD5050 RGB IP20 14.4W 5 meters One Roll



1. Description:

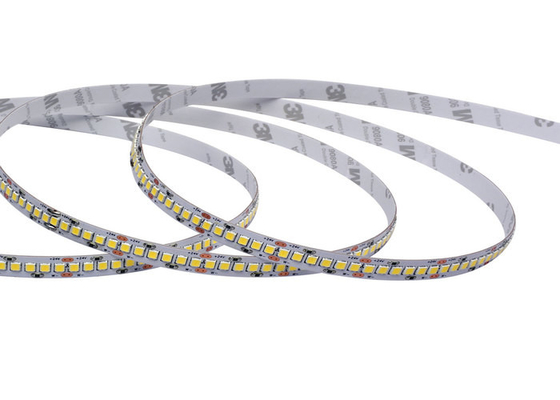

LED Flexible Strips, also called led strip light. An LED Strip Light (also known as an LED tape or ribbon light) is a flexible circuit board populated by surface mounted light-emitting diodes (SMD LEDs) and other components that usually comes with an adhesive backing. Traditionally, strip lights had been used solely in accent lighting, backlighting, task lighting, and decorative lighting applications. Increased luminous efficacy and higher-power SMDs have allowed LED strip lights to be used in applications such as high brightness task lighting, fluorescent and halogen lighting fixture replacements, indirect lighting applications, Ultra Violet inspection during manufacturing processes, set and costume design, and even growing plants.



2. Products Information:


Model: A2835-240-V24

Voltage: DC24V

Power: 25W one meter

Color: white, warm white, neutral white

LED Type: SMD2835

LED Lumen: 22 - 26 LM

CRI> 80 Ra

LED Quantity: 240pcs one meter


PCB Width: 10mm

PCB color: White

PCB Material: Cooper

Back Side Tape: 3M Tape

Size: 5000*10mm

IP Level: IP20

Warranty: 3 years

Certificate: CE RoHS UL



3. Different 4 types technical data:


Model No. Specification
LED Type LED Qty
Work Voltage Peak
A2835-240-W-V24 SMD
240 White 6000K±300K 22-26Lm DC24V 25W/M 5000*10mm
A2835-240-NW-V24 Natural White 4000K±200K
A2835-240-WW-V24 Warm White 3000K±100K
A2835-240-WW-V24 Warm White 2700K±100K



4. Features:


1. Continous 5 meters length

2. DC12V, DC24V, AC110V, AC220V

3. 3M adhesive backing easy to install at anywhere

4. 3000K, 4000K, 5000K, 6000K, RGB, RGBW, RGBWW

5. IP20, IP65, IP67, IP68

6. CE, ROHS, UL Certificated

7. 3 Years Warranty

8. CRI 80RA and 90Ra available

9. Dimmable version



5. Application:


1. Building decoration lighting in narrow ceiling, cabinet,stairs

2. Marine,Poor light,Garden decoration light

3. Advertisement lighting and decoration

4. Emergency hallway lightig



5. LED Strips Production Process:


SMT - Testing - Welding - Aging Test - IP20 - Drop IP65 - Hollow Tube - IP68 - Stick 3M adhesive - Test- Inspection- Package



6. About Packaging:


1. Standard Packing Per Bag
5 meters / reel,1 reel / anti-static bag
G.W. : Non-waterproof-0.13KG


2. Standard Packing Per Outer Carton:
25 bags to 1 inner box, size : 33.5x20x24cm
4 inner boxes to 1 outer carton size: 43x35.5x50.5cm



7. FAQ:


1. Do you have accessories for the led strips?

Yes, we have many accessories, aluminum profile, power supply, RGB controller, Connector, Plug.


2. What's the differeence between IP20, IP65, IP67 and IP68?

IP20 is non-waterproof, which only used for indoor lighting. IP65, IP67 and IP68 are waterproof, IP65 Silicone waterproof which can used in outdoor if raining, it is safe. IP67 is Silicone tube waterproof, IP68 is Silicone TUBE +Resin waterproof, which can used for swimming pool, total waterproof.


3. Do you have waterproof power supplier?

Yes, we have IP65 and IP67 waterproof for our led strips, non waterproof IP20 is also available.


4. How to connect the led strips?

The led strips is DC12V or DC24V, then you need to buy a power supply,  which can convert the low voltage DC12V / 24V into high voltage AC90-130V or AC170-265V. If you directly connect the DC12V / 24V led strips into home high voltage, the led strips will be burned out.


5. What's the function of RGB controller?

If you buy the RGB led strips, then you need RGB controller to control the colors, you can choose many different colors by controller. such as red, green, bule, pink, yellow.


Ip20 High Power Led Strip Lights 240led Ul Listed For Advertisement Lighting 0


Ip20 High Power Led Strip Lights 240led Ul Listed For Advertisement Lighting 1
