Outdoor Led Tape Lights Waterproof , 5050 Led Strip Lights With Remote

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS UL
Model Number: A3528-D240-W-V24
Payment & Shipping Terms:
Minimum Order Quantity: One Roll
Price: Negotiation
Packaging Details: 50 Rolls One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 meters per day
Contact Now

Detail Information

LED Chip: 30LED 60LED LED Brand: Epistar
Voltage: DC12V Color: RGB
IP Grade: Waterproof IP65
High Light:

smd led strip lights


waterproof led light strips

Product Description

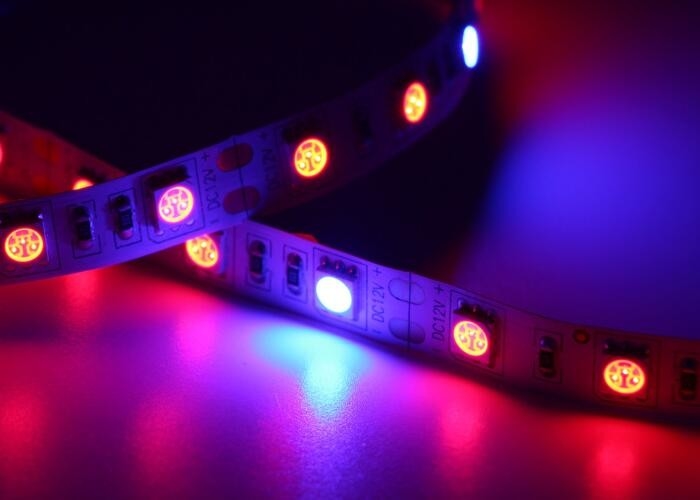

LED Flexible Strips Light DC12V Epistar SMD5050 RGB IP65 Waterproof 30LED 60LED


1. Description:

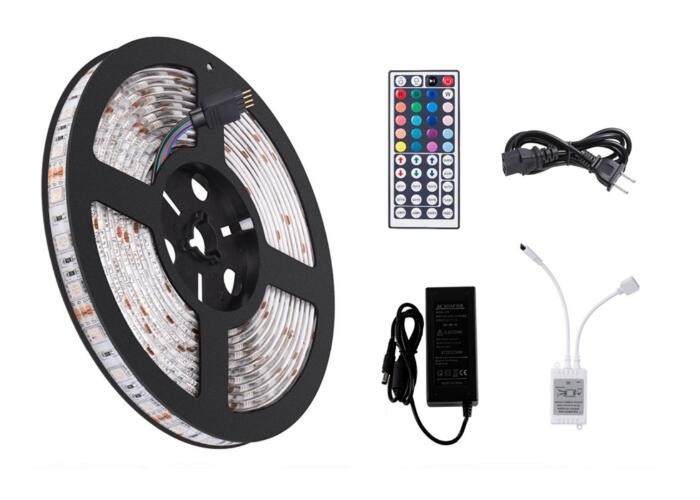

RGB LED Strips need a power supplier and a 24key RGB controller to control the led strips, use the controller, you can change everycolor you want. It  use SMD 5050 RGB led chips, also SMD3014 RGB LED Chips. SMD5050 RGB LED Strips have 2 model, one model is 30pcs led chips per meter, another is 60pcs led chips per meter. So the power is different. One is 7.2W per meter, another is 14.4W per meter. Both 2 types voltage is DC12V, can make IP20 non waterproof, only can use indoor. And IP65, IP67 and IP68 are waterproof, which can use for outdoor lighting.



2. Products Specification:


Model A5050-30-RGB-V12 A5050-60-RGB-V12
Voltage DC12V DC12V
Power 7.2W 14.4W
LED Quantity 30pcs / meter 60pcs / meter
LED Chip SMD5050 SMD5050
LED Lumen 22-26LM 22-26LM
LED Brand Epistar Epistar
LED Brightness 2200-2600MCD 2200-2600MCD
SDCM <5 <5
Length 5000*10mm 5000*10mm
PCB Width 10mm 10mm
PCB Color White White
Warranty 3 Years 3 Years
Beam Angle 120 degree 120 degree
Life Span 30000 Hours 30000 Hours
IP Grade IP20 IP65 IP67 IP68 IP20 IP65 IP67 IP68



3. Scope of application:

Domestic users also like to search on Baidu by using the LED soft light bar or the soft light bar. The same product has different names, but the applicable population is different. LED light bar, LED light bar has been widely used in furniture, automobiles, advertising, lighting, ships and other industries.
Countertop glass and glass corners, straight or arc. Applicable occasions: jewelry cabinets, cosmetics cabinets, boutique cabinets, wine cabinets, glassware cabinets, cultural relics display cabinets, medicine cabinets, bar counters, supermarket refrigerated display cabinets, etc.



4. Advantages:


1. High luminous efficieny and color temperature consistency

2. Easy to install with 3M Self-adhesive or matched mounting clip

3. 5 meters per roll packed in anti-static bag

4. Dimmable Brightness and changeable color as you like

5. Energy conservation and environmental protection, green products

6. Convenient transportation, not easy broken

7. Waterproof performance is strong, suitable for outdoor installation



5. Operating instruction for RGB LED Strip:


5.1. Specification for power supply:


Supply voltage:110-220VAC / 50-60HZ

Output voltage: DC12V

Output power: 5A/60W 2A/24W

Product Size: 145*65*85mm

Output: 3 channels RGB signal

Max load: 5 meters

Working temperature: -20~60℃

Control mode: Infrared remote controller



5.2. The 24 key infrared remote controller for use:


Brightness+ Brightness- OFF ON
Static red Static Green Static Blue Static white
Static orange Static yellow Static cyan Static purple
Auto change 3 base colors jump and effect of running water 3 base colors fade change Speed+
Flash Colorful jump Colourful synchronized Speed-



5.3. 24 Key RGB controller Description:


1. When the static, “ Brightness+ ” “ Brightness- ” to adjust the brightness of colors.

2. Dynamic time, “ Speed+ ” “ Speed- ” to adjust the speed of change, to facilitate debugging, is only divided into “high speed” “medium speed” “slow speed” “slowest” total four kinds of speed.

3. Dynamic static free to switch, and has a memory function, you can save the state before power.



5.4. 24 Key RGB Controller Function:


1. In constant power, press the OFF button and then press the ON key, the controller can remember the previous state of the LED

2. After lighting in LED, turn off the power 30S, and then turn on the power, the controller can remember the previous state of the LED

3. After lighting the LED, turn off the power, and then turn on the power, the controller will automatically enter the next state.




Outdoor Led Tape Lights Waterproof , 5050 Led Strip Lights With Remote 0

Outdoor Led Tape Lights Waterproof , 5050 Led Strip Lights With Remote 1
