Dc 12v Led Flexible Strip Lights 60led 18w 50lm High Shock Resistance

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS UL
Model Number: A5630-60-V12
Payment & Shipping Terms:
Minimum Order Quantity: One Roll
Price: Negotiation
Packaging Details: 50 Rolls One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 meters per day
Contact Now

Detail Information

LED Chip: SMD5630 LED Brand: Epistar
Voltage: DC12V Color: WW NW CW
IP Grade: Waterproof IP68 LED Quantity: 60LED
Power: 18W LED Lumen: 50LM
High Light:

led flexible tape light


smd led strip lights

Product Description

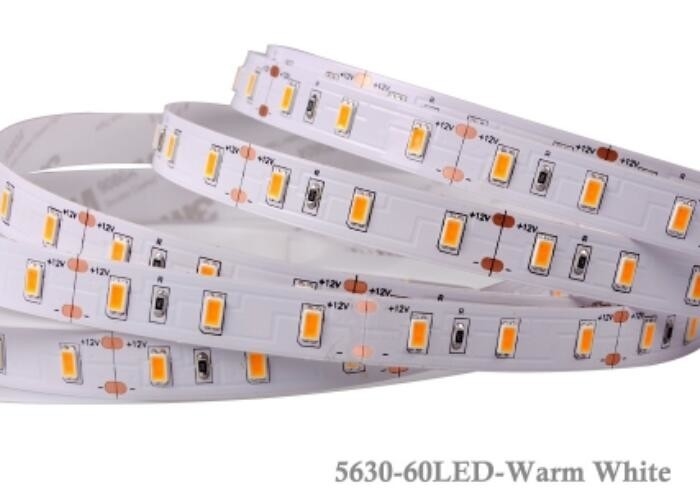

SMD5630 LED Flexible Strips Light DC12V 60LED IP68 Waterproof 50LM 18W



1. Products Technical Data:


5630 SMD,55-60Lm,CRI>80,SDCM<5
Model No. Specification
LED Type LED Qty
Work Voltage Max
A5630-60-W-V12 SMD
60 6000K±300K 55-60Lm DC12V 18W/M 5000*10mm
A5630-60-NW-V12 4000K±200K
A5630-60-WW-V12 3000K±100K



2. Scope of application:


1. Applicable for automobile & Airplane model decoration, contour lighting or border

2. Applicable for signage letters, concealed lighting and advertisement sign lighting

3. Aplicable for hotel, home, supermaket, KTV, Bars, Caferoom.



3. Advantages:


1. SMD SMD lamp with international famous manufacturer's chip, high light source brightness, large angle, excellent quality and stable performance.
2. Use a very soft thickness in the 2mm PCB board as the substrate.
3. 30/60 lights per meter, generally 5M is a roll, the width of non-waterproof soft light strip is: 10mm, the width of waterproof is 10MM
4. It can be arbitrarily cut along the above tangent line, without damaging other parts.
5. The flexible whole body light band can be cut at any scissors mouth and can be bent into various characters and graphics.
6. The installation is fixed and convenient. Flexible and convenient cutting makes the construction easy to operate, ultra-thin design, low temperature light source, so that the product in the installation process for the selection of auxiliary materials with more flexible.
7. Safe working voltage: DC voltage 12v.
8. Small size, many colors, no radiation, strong, high shock resistance is a new generation of green high-tech products.



4. Description:


LED Flexible Strips also called led tape light, or led strips light. It is widely used for many places. Voltage can be low volatge DC12V, DC24 and high voltage AC110V or AC220V. Color temperature can be choosed from white, warm white, neutral white and RGB color. Also we have double line led strips, The led chips are SMD3014, SMD2835, SMD3528, SMD5630, SMD5050, one meter led quatity can be 30LED, 60LED, 120LED and 240LED. Power is from 4.8W to 25W. So there are many different types which can meet your special need. And it can be used for indoor lighting and outdoor lighting, Indoor lighting is IP20, outdoor lighting is IP65, IP67, and IP68. So it is widely applied in commercial lighting, with high cost-effective performance.



5. Why choose Ado LED Strips?


1. High speed full-automation SMD - machine
2. 50000 meters / day
3. Reflow Solder with 16 temperature area
4. Automation Dispensing machine
5. Aging Room is around 400 square meter
6. With 15000 square meter production area
