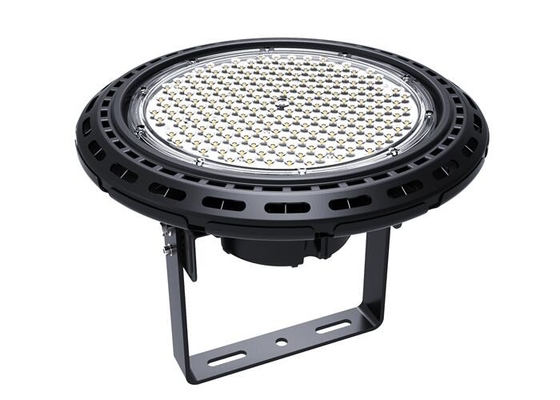

Ufo 150w Led Highbay Light Smd3030 Chip Meanwell Driver Saa Ul Listed

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-UFO-B-150W
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: 1PCS/CTN
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Power: 150W Material: Aluminum
LED Chip: SMD3030 Driver: Meanwell
IP Level: IP65 Certificate: CE SAA
High Light:

energy efficient high bay lighting


high bay lighting led

Product Description

LED Highbay Light UFO 150W SMD3030 IP65 5 Years Meanwell Driver Aluminum SAA UL
1. Description:


UFO LED high bay light, named because of its unique appearance and appearance as UFO (UFO). High-precision full-automation equipment is used to form aluminum fin heat dissipation shells at one time, which has good heat dissipation effect. It uses multiple chip-type high-power high-efficiency high-effect 3030 LED lamp beads with uniform light and is equipped with Taiwan Meanwell circular power supply; equipped with a respirator. , Effectively prevent the occurrence of fog due to the ambient temperature difference, waterproof and dustproof performance. Long life, low light decay, can be widely used in outdoor and indoor harsh applications.
As a new LED high bay light, it adopts the lens light distribution design and does not need additional reflector light distribution. Therefore, there is no phenomenon that the traditional LED high bay light lamp is easily deformed during transportation, and the transportation cost is relatively low.



2. Specification:

Input Power 150W PF ≥0.95
Input voltage AC90-305V CRI ≥80Ra
working frequency 50-60HZ Beam Angle 60,90,120 degree
LED Spec Osram 3030 Housing material Pure Aluminium
CCT 2700-6500K LED working life 30000-50000H
Lumens 19500LM IP Rate IP65

3. Advantages:
1. Lumileds/Osram 3030, Ra>80, 50000 hours, Chip for options, LM80 standard, high luminous efficiency, long life, cost-effective.
2. The Power Supply: Meanwell HBG series, Inventronics, Sosen driver for option, 5 years warranty, cost-effective, UL SAA, and other related certificates.
3. Lens Angles: The PC fireproof material lens with 60°, 90°, 120°beams, will not turn yellow in 5 years
4. The Shell: Integral stamping 1070 pure aluminum sheet metal housing is with light weight. Powder painting against harsh environments, and do not change color.

4. Application:


Exterior building lighting of historic buildings, light-exposed lighting inside the building, indoor local lighting, green landscape lighting, billboard lighting, medical facilities and other specialized facilities lighting, stadium lighting.

5. Installation instructions:


1. Please read carefully the LED Highaby Light instruction before use.

2. Non-professional technicians, please do not repair or modify this product without authorization.

3, please turn off the power before installation to avoid improper operation and electric shock.

4. Before installation, please check whether the voltage marked on the spotlight and the input voltage to be connected are consistent, so as not to damage the LED Highaby Light.

5, in order to ensure the service life of the product, please do not use it in places with strong acid mist.

6. Pay attention to shockproof during installation and transportation.

7. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, and no fire hazard;

8. If the lamp fails, please place the lamp in one place and send it back to our company for testing and repair.

9. If you find that the lamp wire is broken, stop using it immediately.
