Die - Casting Aluminum Alloy LED High Bay 300W 100W 200W 6500K 18000LM

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-ST-200W
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: 1PCS/CTN
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Name: LED Street Light IP Grade: IP65
Application: Outdoor Lighting Power: 200W
Material: Aluminum LED Type: COB Chip
High Light:

energy efficient high bay lighting


high bay lighting led

Product Description

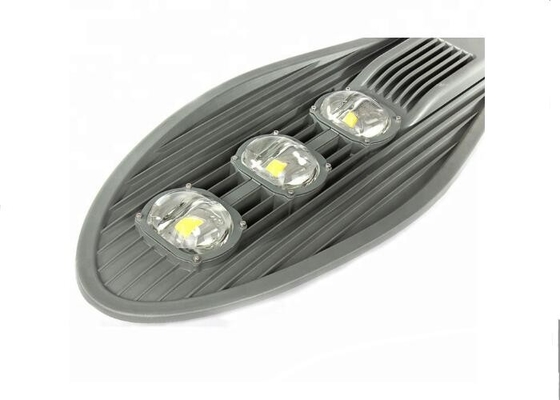

100w 200w 300w LED Street Light LED Highbay Light Outdoor Lighting IP65

1. 200W LED Street Light Technical Data Sheet:


Model AD-ST-200W
Power 200W
LED Type 2pcs*100W COB Chip
LED Brand Epistar
Lumen 16000-18000LM
IP Level IP65
LED Driver Isolated Wide voltage IC constant current
Material Die-casting Aluminum Alloy
Body Color Black/Gray
Power Efficiency > 90%
Warranty 2 years
Light Color WW / NW / CW
Temperature 2700K-6500K
Rated Voltage AC 85V-265V /185-265V
Power Real Power



2. LED Street Light Features:

1. Economical and practical:

High-power integrated lamp beads, with LM80 certification, energy saving and environmental protection, coupled with factory direct sales price, cost-effective.


2. Anti-surge:

4KV~10KV surge protection, effective lightning protection, lighting safety and personal safety are protected, also to avoid frequent maintenance and reduce maintenance costs.


3.The first choice of engineering project:

This series of street lights are applicable to 6-8 meters, 8-10 meters, 10-12 meters wide road type.
Whether it is for highways, trunk roads, branches, slip roads, or parks, squares, garden roads, pedestrian streets, parking lots, residential streets, courtyards, they can perfectly meet your lighting needs.



3. Other model specification:


Model No. Size(MM) LED Chip
AD-LSL-001-30W 510*230*80 30W×1pcs 3kg
AD-LSL-002-50W 510*230*80 50W×1pcs 3.5kg
AD-LSL-003-80W 620*260*80 40W ×1pcs 4.2kg
AD-LSL-004-100W 700*260*80 50W×2pcs 5.2kg
AD-LSL-005-120W 720*260*80 60W×2pcs 6.1kg
AD-LSL-006-150W 900*340*80 50W×3pcs 8.0kg
AD-LSL-007-180W 930*340*80 60W×3pcs 9.7kg
AD-LSL-008-200W 1050*360*120 50W×4pcs 17kg
AD-LSL-009-240W 1050*360*120 60W×4pcs 17kg



4. Advantages:


1.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation

2. Built-in LED driver with IC ensure stability of light, it can work efficiently under
3. AC85-265V in different countries and regions.AC12/24V led driver is also available
4. Long life span>50000hrs
5. High brightness, low consumption, green for environment

6. High Power, high lumen, high quality
7. Save 80% more energy compared with traditional lighting fixtures
8. Easy to install and use, secure and reliable
9. No UV or RF interference, No mercury or lead

10. Potection grade is IP65



5. Specification:


1.Voltage:AC90-277V 50-60Hz
2.Material:Thick Die-Casting Aluminum
3.LED Brand:Osram COB chip
4.LED Chip: 110LM/W
5.LED Driver: Isolated Waterproof high PFC with IC constant current project
7.Luminous Efficiency: 110LM/W
10.Beam angle: 110°
11.Lamp working temperature: <70℃
12. Life Span: >50000 hours
13.Warranty: 3 years
PS: we could customize high quality chip&driver


6. Application:


The Classic Sword Shape Street Lights are mainly applied to urban expressway, trunk road, secondary roads, slip roads, factories, schools, gardens, a variety of residential quarters, city squares, courtyards and other road lighting.



7. Quality control:

100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test it’s temperature after 24 hours lighting.Then after it is cool we again test 100% of the lamps to see if it still work well. If defective, we will check the reasons and make sure not to happen again.



8. Why Choose Ado Electronics Limited?

a. We are the firstest group to promotion this product. We always do best to support our customer.

b. We can offer you high quality led filament bulbs.

c. We can offer you the best service.

d. We are always be you side when you need us.
