China LED Flat Panel Light manufacturer

Ceiling Led Slim Panel Light 18w 175mm 120 Degree Beam Angle For Exhibition

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-MZ-PAL-18W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 18W Installation: Surface Mounted
Shape: Square Height: 38mm
Beam Angle: 120 Degree Size: 175mm
High Light:

thin led light panel


slim led ceiling light

Product Description

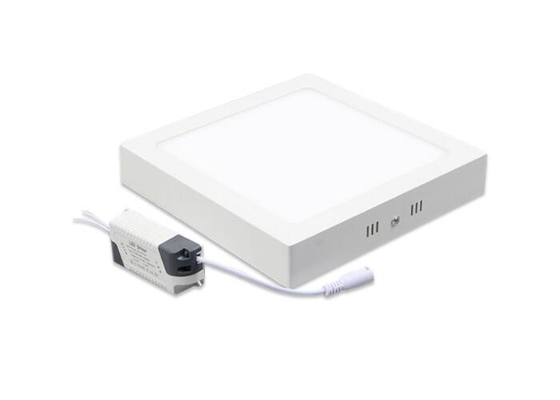

Square LED Slim Panel Light 18W 38mm 120 Degree 175mm Surface Mounted



1. Description:


Ado Surface Mounted LED Slim Panel Light is the lamp which can install on the wall directly, the installation is surface mounted. Our surface mounted led panel light have 4 wattage, 6w, 12w, 18w and 24w. We use Taiwan Epistar SMD2835 led chip, the chip lumen is 24LM with 0.2W. 24W total lumen is about 1920LM.

Light luminous efficiency is 80Lm/W. Also the CRI is good, it is 80Ra, which can reflect the true color of objects. Beam Angle is 120 degree. The housing material is aluminum, the cooling effect is good, no much heat on the fixture to protect the longlife of led. The height is only 38mm. Our LED Slim panel light have CE,  ROHS certificates, and we have EMC and LVD test report. This is Europe quality requirements.



2. Advantages:


1. Scientifically-designed heat dissipater with much better cooling effect;

2. High-quality aluminum shell, better heat dissipation, less light decay, longer life.

3. High-Luminous efficiency, 80-90Lumens/W

4. Good color rendering, soft light, uniform light spot, pure light color

5. Shockproof, Solid-State, High Shock / Vibration Resistant

6. Energy saving and green environmental

7. Approval with CE, RoHS certificate and ISO 9001 quality system standards.



3. Technical Data Sheet:


Model AD-MZ-PAL-18W
Certification CE ROHS SAA FCC
Material Aluminum + PMMA
Beam Angle 120°
RA ≥80
Warranty 2 years
Light Source SMD2835
Protection index IP20
Input Voltage AC85-265V
Color Temperature 3000K-6500K
Luminous Flux 80lm/w
Life span 50000 hours




4. Power & Size of Round / Square LED Panel Light:


power and size of round panel light
Power Dimension(mm) Power Dimension
6w D115*H 35 12w D170*H 38
18w D225*H 38 24w D295*H 38
power and size of square panel light
6w 120*120*H35 12w 175*175*H38
18w 228*228*H38 24w 300*300*H38



5. Product Features:


1. This products is using SMD2835 chips, lighting is soft and equally/uniform/average. Higher CRI.

2. The outer panel is using PMMA material, the transmittance is higher than acrylic panel.

3. The construction of this item is nice, 40mm thickness, it is easy installed, can be used in house, hotel, supermarket, restaurant etc. It totally replaced traditional down light.

4. It seems like only seeing the light without the lamp.

5. Extremely long working life



6. Warranty:


We provide 3 years warranty for our surface mounted slim led panel light,  if any defective products in warranty period, we will repair or replace for free. If not in warranty period, we will help you find out the defective reasons, if only need to change new parts, we will send you new parts, and you should pay the new parts cost. If it is totally can't use again, we will offer you 10% discount to buy a new product from us.
