China LED Flat Panel Light manufacturer

4ft Tri Proof Led Tube ip65 Waterproof 36w 0.95pfc With Wide Voltage Range

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-TPT-1200-36W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 5,000 pcs per day
Contact Now

Detail Information

Waterproof: IP65 Length: 4FT
Driver PFC: 0.95 CRI: 80RA
Power: 36W Lumen: 3600LM
Highlight:

led ceiling tube lights

,

led replacement tubes

Product Description

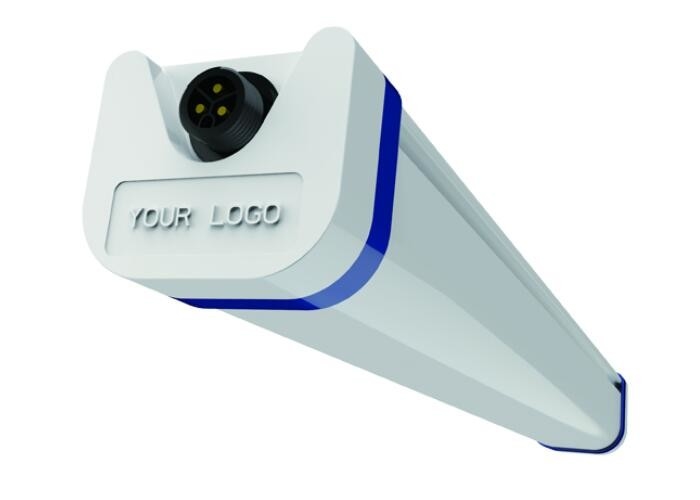

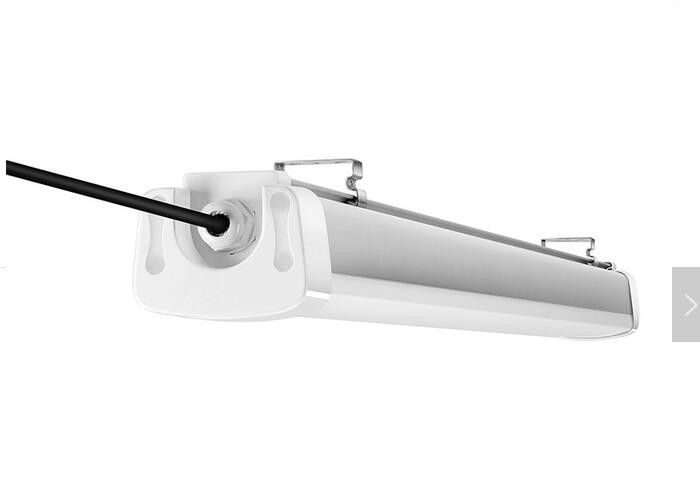

LED Tube Lamp Tri-Proof IP65 4FT 36W T8 0.95PFC 80RA 3600LM Aluminum





1. Description:



Tri-Proof LED Tube Lamp is water-proof, dust-proof, pressure-proof and corrosion-proof, it is widely used in workshop, parking area, garage, airport, MTR station, supermarket, tunnel, exhibition center, gymnasium etc. With bridgelux led chips and Lifud led driver, luminous efficiency can be 100LM/W with 3 years warranty.  Tri-proof led tube lamp advantages are:

1. Aluminum housing, good for heat dissipation

2. Waterproof IP65, Impact index IK10

3. Can be made as emergency light

3. Can be made as linkable





2. Features:



1. Linkable: Every light has two easy fixing connectors on both sides. Customer can fix the cable into the connectors very fast and easily.

2. Plug-in sensor: With plug-in connecting design, this standard triproof light can be fixed microwave sensor easily and used as micro-wave sensor triproof light

3. 100LM/W for whole light, 3 years warranty,  PC housing, 30000 hours life span.

4. Durable:Thickness aluminum shell and plastic cover, strong to delivery.

5. Energy-saving: Save power more than 90% compare with fluorescent tubes .

6. High quality isolated IC driver, unique technology,safer and more stable

7. Patent and fashion design,Make you more competitive





3. Technical Data Sheet:



Watt (W) Voltage (V) Lumen (lm) CRI Power factor Beam Angle IP Rate Size (mm)
20W 100~277 2000LM >80 > 0.95 160 Degree IP65 600x90x74
36W 100~277 3600LM >80 > 0.95 160 Degree IP65 1200x90x74
80W 100~277 8000LM >80 > 0.95 160 Degree IP65 1500x90x74




4. Why choose Tri-Proof led tube lamp:



1. Excellent Heat Dissipation.

2. Long lifespan.

3. Low energy consumption.

4. Environmental protection.

5. Easy to install and use.

6. Large beam angle

7. Perfect dimming effect.

8. CE, RoHS certification.





5. Different Covers Advantages:



Basically, the cover is a PC cover, and basically no glass cover. It is manufactured by processing PC particles (chemical name: polycarbonate) and then adding a dispersion powder. PC cover can be divided according to light transmittance: transparent cover, frosted cover, milky diffusion cover.


Transparent cover: also called clear cover,  the transparent cover is a transparent PC cover, this cover makes the lamp tube can see the lamp beads, very dazzling, easy to dizzy, does not meet the human requirements for light. The light transmission performance is good, reaching a light transmittance of 91%.


Frosted cover: This cover is a translucent cover that can spread out the light, but the light is not uniform enough, will not glare, light transmittance of about 88%.



Milky white diffuser cover: This cover is also the cover used by most manufacturers on the market. The universal light transmittance of this case is 83-85%; the light transmittance below 83 is totally invisible to the light bead.





6. Our Services:



We have nothing to offer but excellent quality, reasonable prices, fastest production time, good customer services and the efforts to benefit the environment. What we can promise are:

1. To reply to your emails in 12 hours, if not, we will inform you in advance when we can.
2. To stand on call 24 hour a day, 7 days a week, we all can speak fluent and authentic English.
3. To take care of your requests professionally with nearly 6 years' experience in LED industry.

4. Follow up your order production, delivery, shipping, receiving, installation, replacement.
