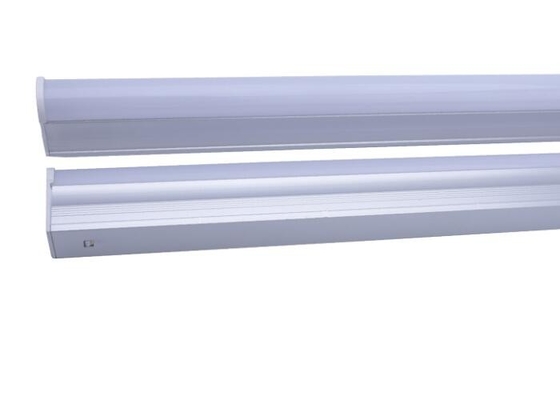

0.3m Dimmable Led Tube Lamp T5 Integration Seamless 5w 4000k Ac85 - 265v

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-T5-30-5W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 5,000 pcs per day
Contact Now

Detail Information

Power: 5W Length: 0.3M
Type: T5 Integration Seamless CCT: 4000K
Material: Aluminum Voltage: AC85-265V
High Light:

led replacement tubes


led tube light

Product Description


T5 LED Tube Lamp Integration 0.3M 5W Aluminum 4000K Seamless AC85-265V Dimmable



1. Quick Details:


Model NO.: AD-T5-30-5W
Color Temperature: NeutralWhite 4000K
Length: 03 meter
Shade Material: Aluminum

Cover: PC milky
LED Type: SMD 2835
Lifespan: 30000H
Certification: CE, RoHS
LED Chips: Epistar
Transport Package: Carton Box
Tube Type: T5
Power: 5W
Warranty: 2 Years
Input Voltage: AC85-265V
HS Code: 9405409000



2. Description:


Our Integration T5 led tube lamp adopt IC constant current led driver, longlife span and very safety driver solution, which is smart and intelligent led driver with low defective rate.The power efficiency is high and with low comsumption. It is better than the traditional tubes. If you want to change tradtional tubs with led tube lamp, please just remove the starter and ballast, then install our led tube lamp. It is very easy. For the warranty, we provide 2 years warranty, also can offer 3 years and 5 year warranty based on customer's different quality standard. The power is 5w for 30cm, 10w for 60cm, 15w for 90cm, 18w for 120cm, and 24w for 150cm. Color temperature is 2700-6500K. And it is seamless, or called linkable, 2 pcs led tubes could connect without gap. The tubes is also with the accessories, it is helpful for the installation. The color rendering index is very high, it can show the real color of objects, and it is good for eye protection, it is gree environmental, which pass CE and Rohs test.



3. Features:


1. Epistar LED Chip, SMD2835 with 0.2W. lumen is 24-26LM, high brightness with low decay.

2. IC constant current wide voltage led driver, stable quality and longlife, dimmable is available.

3. Aluminum fixture with good heat dissipation and low heat, PC and glass is available.

4. Milky cover and PC cover, great light transmittance.

5. High CRI up to 80Ra

6. High luminous efficiency up to 100LM/W

7. Long life span is 30000 hours

8. Green and environmental

9. CE, RoHs, UL certificates

10. CCT is 3000K, 4000K, 5000K and 6000K


0.3m Dimmable Led Tube Lamp T5 Integration Seamless 5w 4000k Ac85 - 265v 0

0.3m Dimmable Led Tube Lamp T5 Integration Seamless 5w 4000k Ac85 - 265v 1

0.3m Dimmable Led Tube Lamp T5 Integration Seamless 5w 4000k Ac85 - 265v 2



4. T5 LED Tube Lamp Specification:


Model Length Power Lumen Voltage CRI(Ra) LED Chips LED
AD-T5-30-5W 300mm 5w 500LM AC85-265V 80 Ra 24pcs SMD2835
AD-T5-60-10W 600mm 10w 1000LM AC85-265V 80 Ra 48pcs SMD2835
AD-T5-90-15W 900mm 15w 1500LM AC85-265V 80 Ra 72pcs SMD2835
AD-T5-120-18W 1200mm 18w 1800LM AC85-265V 80 Ra 96pcs SMD2835
AD-T5-150-24W 1500mm 24w 2100LM AC85-265V 80 Ra 120pcs SMD2835



5. Application:

1. Large-scale factories, production workshops, worktables, and office interior lighting;

2. Gymnasium, Gallery

3. Hospital interior lighting;

4. Shopping malls supermarket interior lighting;
5. Museum, Library, Museum of Art
6. School classroom lighting;

7. Warehouse

8. Subway, bus station, train station

9.  Family lighting.

10. Underground parking, 24 hours use, saving considerable energy;



6. Service Life:

The service life of LED tubes depends on the mechanical design, quality of LED components, implemented heat management, and quality of other electronic components used. According to the manufacturers, in favourable conditions, the service life of LED components can be up to 100,000…300,000 hours. In case of many LED tubes available on the market, the actual service life is shorter, due to the poor quality of electronic components used. In addition to product design, materials used, and assembly, the service life also significantly depends on the operating temperature and usage periods. If a LED tube is allowed to cool between usage periods, this is likely to have a positive effect on the service life. The service life is also longer in cold rooms, whereas in case of higher temperatures, the LED components lose their illumination efficiency faster and the electronics failure rate increases. Of course, the manufacturers have been unable to conduct absolute service life tests so far, since testing the products continuously for 100,000 hours would take more than 11 years.

0.3m Dimmable Led Tube Lamp T5 Integration Seamless 5w 4000k Ac85 - 265v 3
