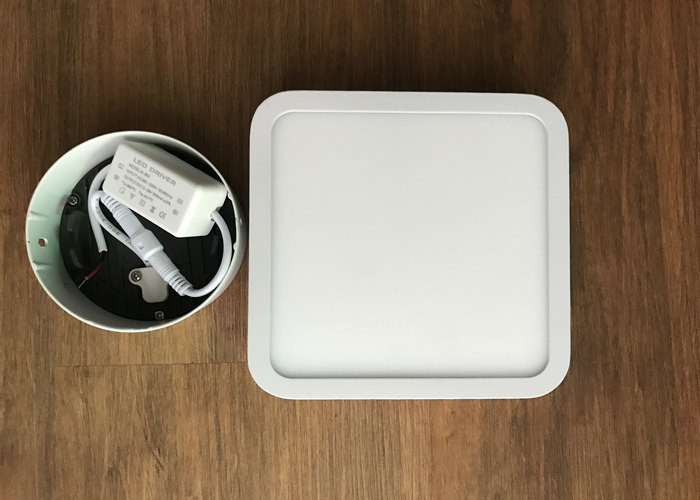

18w Dimmable Led Panel Light Slim Panel 90lm / W With 120 Degree Beam Angle

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-ERP-SPAL-18W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Material: Aluminum LED Chip: SMD2835
CRI: 80RA Luminous Efficiency: 90LM / W
Beam Angle: 120 Degree Dimmable: Triac
High Light:

dimmable led ceiling panels


dimmable led flat panel lighting

Product Description


Dimmable 18W LED Slim Panel Light 90LM/W 80RA 120 Degree Aluminum SMD2835



1. Features:


(1) Ultra slim, good heat, long life, low cost of maintenance

(2) 120 degree full light angle high lumen

(3) Energy-saving and environment-friendly Led Lamp

(4) Intelligent constant current IC driver, stable project, long lifespan ensurance

(5) Slim design, good looking, easy installation

(6) High quality with CE,RoHS / TUV and other certificates.

(7) Dimmable type: Triac, 0-10V, Dali Dimmable.



2. Products details:


A. Lamp Body and Back: Extra thin aluminum frame, Smooth surface .white color, aluminum frame as heatsink, good Elasticity to install safer saving the space and convenient to install
B. Lamp Cover: PMMA materials, good light effects, easily clean

C. Inside of the lamp: Good quality guide plate
D. LED chip: Energy star color option :3000k/4000k/6000k, 90lm/w ,life span>30,000hours CRI>80,
Epistar or Samsung brand chip, SMD led chip ,high lumen&brightness

E. High quality driver: constant current power, wide votage, no stobe, safe islation protection meets the European standard
F. Driver connector: Convenient to install and safe, fast assembling



3. Specification:


Model: AD-EPR-SPAL-18W

Input Voltage: AC85-265V

Power: 18W

LED Brand: Taiwan Epistar

LED Chip: SMD2835

LED Type: 0.2W

LED Lumen: 24-26LM

LED Quantity:90pcs

CCT: 3000K / 4000K /6000K

Lumen: 1550LM ± 100 LM

Color Rendering Index: 80RA

Material: Aluminum(fixture)+PMMA(LGP)
Fixture Color: Powder painted white color
Size(mm): φ175*H8mm
Cutout size(mm): φ155mm
Input Voltage: AC85-265V 50/60Hz
Power factor: PF≧0.9
Driver :Smart IC Isolated constant current
Rated lifetime: 50.000 hours
Shape: Square
Beam angle: 120°
IP rank: IP44
Insulation grade II
Energy-saving level A PLUS
Operation temperature: -20℃~+60℃
Lighting Distance: 1-4meters
Mounting height: 2-3meters
Place of Origin: China
Approval mark: CE RoHs
Warranty: 2 years



4. Mechanicals technics:
Light guide plate(LGP) brand Japan Mitsubishi
LGP thinkness 3mm
LGP technology Dot Laser
LGP light transmittance 90%
Lifespan (LM80) 30000H
Material Aluminum(fixture)+PMMA(LGP)
Fixture Color Powder painted white color
Shape Round

5. Shipping&Delivery:


1. Delivery time : Bulk order: 25days after confirmation

2. Sample: 7days after you requested

3. Delivery Terms: Bulk order: FOB / EXW / CIF

4. Trial order/ Sample : DHL, UPS, FedEx, EMS etc. Express Delivery



6. Quality Control:


100% of the lamps will be tested and keep lighting for 48 hours to test its quality reliability, and it’ll be 100% tested again before packing, all of our products will pass strictly QC procedure before shipping.



7. Why Choose Us:

1. We have unique professional R&D, production,quality control teams.
2. 8 R&D persons with more than 8 years experience in LED market to provide OEM/ODM;
3. With imported advanced machine for LED encapsulation, SMD and reflow soldering.
4. Professional production workers: about 20 persons
5. Production line: 10 lines
6. Month production capacity is 50000pcs
