Slim LED Square Panel Light 30Watt Isolated Driver 0.9PFC 80Ra 4000K

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-RL-SPAL-30W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Voltage: AC85-265V Emitting: Back Lighting
Power: 30W CRI: 80RA
Material: Aluminum PFC: 0.9
High Light:

thin led light panel


ultra slim led panel light

Product Description


LED Slim Panel Light 30Watt Rimless Back Lighting Isolated Driver 0.9PFC 80Ra 4000K



1. 30W LED Slim Panel Light Specification:


Model AD-RL-SPAL-30W
Shape Square
Installation Surface Mounted
Emitting Back Lighting
Power 30W
CCT 3000K, 4000K, 6500K
Input Voltage AC85-265V
Luminous Efficiency 80LM/W
LED Brand Taiwan Epistar
Lumen 2000LM ± 50 LM
Color Rendering Index 80RA
LED Chip SMD2835*240LEDS
Diameter 225mm
Height 35mm
Material Aluminum(fixture)+PMMA(LGP)
Beam angle 120°
Operation temperature -20℃~+60℃
Mounting height 1-4 meters
Lighting Distance 2-3meters
Warranty 2 years
IP rank IP20
Certificate CE RohS



2. 16w, 24w and 30w led slim panel light specification:


Model AD-RL-SPAL-16w AD-RL-SPAL-24w AD-RL-SPAL-30w
Power 16W 24W 30W
Size ¢120*120mm ¢175*175mm ¢225*225mm
Height 35mm 35mm 35mm
LED Chip 90LED*SMD2835 168LED*SMD2835 240LED*SMD2835

1. Isolated wide voltage Driver
2.CRI: ≥80
3.Light Efficary: ≥80LM/W
4.warranty: 2 years
5.Ordinary color packaging

6. Shape: Square



3. Description:


This LED Slim Panel Light housing is rimless, the rim/outer ring is only 1mm aluminum material, makes the lighting area is much bigger, can bring more light. Also the emitting mode is back lighting, not side lighting. The installation is surface mounted. We have round and square, power is 16w, 24w and 30w. size is 120mm, 175mm and 225mm. Height is 35mm. LED Chip is SMD2835 from Epistar, high lumen with high brighness. LED Driver is wide voltage isolated IC constant current project, it is long life and safety.



4. Application:


1. Office Lighting, Retail & Grocery Stores, Showrooms, Airports

2. Institution buildings, Super market Lighting

3. Commercial Lighting, Restaurants & Hotels, Shopping malls
4. Hospitals, Warehouses, Warehouse Lighting, Galleries



5. Advantages:


1. Thick housing, means better heat dissipation, means chip has long lifespan
2. Lifetime more than 50000hrs, providing 3 years warranty.
3. High lumen 80lm per watt ,low light decay.
4. High light transmittance>90% ,more soft light.
5. Saving 80% electricity than ordinary panel lights.

6. Certificates:CE Rosh EMC LVD


6. Packing Information:


Power PCS/Carton Carton Size (CM) CBM/ CTN
16w 50 PCS 27.5*27.5*46 0.0347875
24w 20 PCS 38*38*23.5 0.033934
30w 20 PCS 48*48*23.5 0.054144
7. Quality Control Capacity:


A. QC Team: 8 persons.
B. Integrated QC system is implemented in every aspect of production for 4 times strictly check. Raw materials-during productive process-finished products-after aging before pack( one by one)
C. More than 200square meters aging room for each goods aging 24hours



8. Why Choose Ado Lighting company?

1. Professional sales team and workers and engineers
2. Rich Experiences: 5 years' research and development in LED lighting;
3. Good Quality control: ISO9000 quality system and IBM internal quality system are carried out in the factory.
4. Warm Services: Mothly and annual follow-up for your order and solve problems
5. First-class Equipments: Dust-free workshop, and top optical lab for LED lamps test.
6. OEM & ODM services: Your logo on the product and packing as well as customized design can be acceptable.
7. 2 years and 3 years warranty and 5 years warranty for led lights.

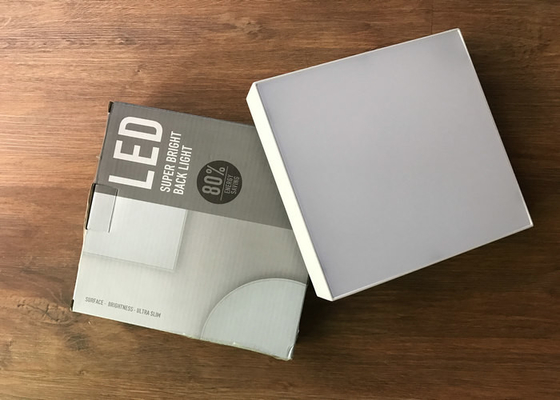

Slim LED Square Panel Light 30Watt Isolated Driver 0.9PFC 80Ra 4000K 0Slim LED Square Panel Light 30Watt Isolated Driver 0.9PFC 80Ra 4000K 1
