18W LED Round Flat Panel Light 80RA 4000K 80LM / W For Parks , Parking Lots

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-ERP-PAL-18W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Model: AD-EPR-PAL-18W Fixture Color: Dark Wood
Power: 18W Material: Aluminum
LED Driver: Isolated CRI: 80RA
CCT: 4000K Lumen: 80LM/W
High Light:

thin led light panel


ultra slim led panel light

Product Description


LED Slim Panel Light 18W Dark Wood Fixture color 80RA 4000K Isolated LED Driver



18W Dark Wood LED Slim Panel Light Specification:


Model AD-EPR-PAL-18W Material Aluminum+PS
Shape Round Beam angle 120°
Installation Recessed Mounted Operation temperature -20℃~+60℃
Emitting Side Lighting Mounting height 1-4 meters
Power 18W Lighting Distance 2-3meters
CCT 3000K, 4000K, 6500K Warranty 2 years
Input Voltage AC85-265V IP rank IP20
Luminous Efficiency 80LM/W Certificate CE RohS
LED Brand Taiwan Epistar LED Chip SMD2835*90LEDS
Lumen 1280LM ± 50 LM Cut out  155mm
CRI 80RA Diameter*Height 175mm*8mm



2. Advantages:


1. Use qualified high power SMD2835 LED, lower power consumption, >80LM/W, no facula, no glare, uniform luminance.

2. Wide range of wattage available (AC100-240V).

3. Long life-span, small light decline rate, high CRI 85 is available for 2700K and 3000K.

4. High class material, excellent heat dissipation.

5. Beautiful appearance, High brightness output.

6. This model fixture has many different electroplating colors, sliver, black, bronze, nickel, light wood, dark wood, chrom. And also we can customize different fixture colors based on your need.



3. Detailed Specification:


Size(D*H): 175*8mm
Cutout size: 155mm

Color Rendering Index: 80RA

Material: Aluminum(fixture)+PS(LGP)
Beam angle: 120°
IP rank: IP20
Operation temperature: -20℃~+60℃
Lighting Distance: 1-4meters
Mounting height: 2-3meters
Place of Origin: China
Approval mark: CE RoHs
Warranty: 2 years
Model: AD-EPR-PAL-18W
Input Voltage: AC85-265V
LED Chip: SMD2835
LED Type: 0.2W
LED Lumen: 24-26LM
LED Quantity: 90pcs
Power: 18W
LED Brand: Taiwan Epistar
CCT: 3000K / 4000K /6000K
Lumen: 1550LM ± 100 LM
Fixture color: Dark Wood



4. Electrical Parameters:


Light guide plate(LGP) brand:Japan Mitsubishi
LGP thinkness: 3mm
LGP technology: Dot Laser
LGP light transmittance: 90%
Lifespan: (LM80) 30000H
Power factor: PF≧0.9
Driver :Smart IC Isolated constant current
Rated lifetime: 50.000 hours
5. Application:

Landscaping buildings, bridges, squares, sports centers, tunnels, garden, subways, undergrounds, factories,clubs, hotels, stages, parks, parking lots, plazas and art galleries.



6. Packing:


Packing Size 39*24*38cm
Packing Qty 20pcs
Packing Gross Weight 8.2kg
Packing Box Colorbox
Packing Carton Neutral



7. Features:

1. This product has high light efficiency, lighting efficiency reaches 90lm/w. Compared with conventional incandescent bulb, its lighting efficiency enhances 10 times, and saves 95% energy, which is economical and environmental friendly.

2. This product has several categories of wattage, optional wattage:2W/4W/6W/7W/8W/10W/12W.

3. This product has several categories of color temperature, optional color temperature: Daylight 6400K

or Warm white 2700K, and neutral white 4000K.

4. This product uses imported high quality LED chip, to guarantee its good color rendering. The color rendering index reaches 80, which is greatly improved than the general fluorescent lamp. It can reflect the original color of the objects.


8. Shipping&Delivery:

Shipping method DHL / Fedex / TNT / Air Shipping / Sea Shipping
Shipping time 3-7 days for express/air shipping, one month by sea
Samples Delivery Time 3-5 days
Official Order Delivery Time 16 work days


9. FAQ:


Q: What kind of LED driver do you use ?
A: Usually LIFUD / LED driver. We also cooperate with and other quality chinese brand.

Q: What's the best price for my order?
A: Price is based on your order quantity , please contact us to get the best price.

Q: Can I get a sample to check the quality?
A: samples are welcome and it can be delivered to you witin 7 days once you confirmed.

Q: Do you have other similar led light for me to choose?
A: Yes, contact us, we will send more information.

Q: What is the warranty?
A: Most of our products are 3 years warranty.

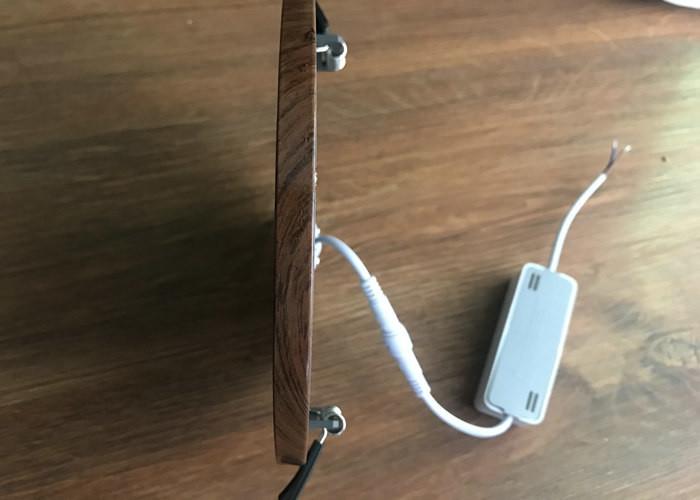

18W LED Round Flat Panel Light 80RA 4000K 80LM / W For Parks , Parking Lots 018W LED Round Flat Panel Light 80RA 4000K 80LM / W For Parks , Parking Lots 1
