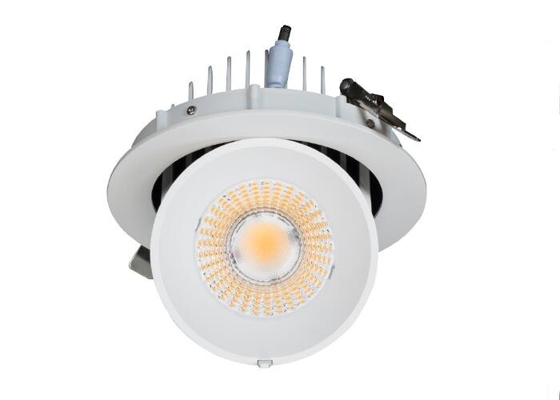

25W 35W 50W 60 Degree Adjustable LED Down Light Rotational Gimbal Aluminum Warm White

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-DL-A-15W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Power: 7W 15W 25W 35W 50W Voltage: AC85-265V
CRI: 85Ra Material: Aluminum
Beam Angle: 60 Degree LED Type: COB
High Light:

waterproof led downlights


cob led down light

Product Description


7W 15W 25W 35W 50W COB LED Down Light Rotational Gimbal Aluminum 60 degree



1. Gimbal Rorational COB LED Down Light Parameter:


Name Gimbal Rotational COB LED Down Light
Wattage 7W 15W 25W 35W 50W
IP rating IP20
Lumen 100lm/w
Voltage AC85-265v
Color white / warm white / neutral white
Beam degree 15° / 24° / 38° / 45° / 60°
Feature 1.High Power, energy conservation, high brightness, good heat dissapation
2.No flicker, no harm to eyes and health design
3.Compact and polishing and beauty design
Application 1.Directly replace traditional light
2.Home and commercial area
Advantage 1.Constant current design, low light degradation
2.Long life-span, strong stability
3.Easy setting, shock-proof and concussion-proof
Ccertificated CE, ROHS, EMC, FCC, LVD
Service OEM, ODM, custom
Warranty period3  years



2. Gimbal Rorational COB LED Down Light Advantages:


1. Rotational Ring: Horizontal 360 degree, Vertical 90 degree
2. Cree COB Chip: High CRI>93Ra, UGR<19, High Lumen>100LM/W, CCT: 2700K / 3000K / 4000K / 5000K / option
3. Reflector: PMMA replector optical penetration rate above 93%, beam angle 15° / 24° / 38° / 45° / 60° optional.
4. Wire diameter: 4.5mm stead secure
5. DC interface diameter: 11mm closed connected, quickly connected, easily disassemble
6. Extruded section 6063 aluminum: integrated heatsink is good for heat dissipation, passed 60℃ degree high temperature test.
7. LED driver: Adopt external isolated constant currennnt driver, stable quality, long life.



3. Specification:


Model Number Power Lumen Effect CRI CCT Beam Angle
AD-DL-A-7W 7W 85-95LM/W 85RA 2700K
24° 25°
AD-DL-A-15W 15W 90-100LM/W 15° 24°
38° 60°
AD-DL-A-25W 25W
AD-DL-A-35W 35W
AD-DL-A-50W 50W 85-95LM/W 23° 38° 60°



4. Features:


1. Can be easily fitted instead of ordinary halogen bulbs.

2. Zero Maintenance. Lifespan is over 50,000 hrs.

3. Save effort and maintenance costs on changing bulbs frequently.

4. Safe For Your Health. Contain no mercury and do not contain any UV/IR light, safe for your home and the environment.

5. 3 Year Warranty. 3 -year unlimited warranty means we've got you covered! Contact us for an easy and fast replacement.



5. Brief information:


Voltage: AC220-240V / AC100-240V
Power: 7W 15W 25W 35W 50W
LED Chip: Citizen LED 1203C4 / Cree COB LED
CCT: 2700K, 3000K, 4000K, 5000K
Luminous efficiency: 100LM/W±5%
Beam Angle: 15 degree, 24 degree and 38 degree 60 degree

LED Driver: Lifud driver or driver or other drivers
Cutout: 125-130mm, 150-155mm, 170-175mm
Material: Die-casting Aluminum
Warranty: 3 Years



6. LED COB Down Light Description:


ADO Gimbal Rotational COB LED Down Light is recessed mounted, it is seamless from 0 degree, and can be rotational to 360 degree. And the beam angle could be choose from 15 degree, 24 degree and 38 degree, 60 degree. Which can meet many different lighting requirements.



7. Our Services:

1. Fast reaction: Your inquiry related to our products or prices will be replied in 24 hours

2. Standard: We produce and test our lamps according to the international standards, and our products get CE RoHS SAA TUV UL etc certificated.
3. Professional Team: Well trained and experience staffs will answer your enquiry with professional knowledge.
4. After-sales: Follow up order production, shipping, installation, quality feedback.

5. 2 Years warranty: Any defective products due to quality problem during warranty period, will free of change and solve all the problems.



8. Packaging:


25W Single package size: 49X33X44 cm

25W Single gross weight: 14.5 kg

25W Package Type: 18pcs/ctn,  Carton: 49*33*44cm



9. Why Choose Ado Electronics Limited?

a. We are the firstest group to promotion this product. We always do best to support our customer.

b. We can offer you high quality led filament bulbs.

c. We can offer you the best service.

d. We are always be you side when you need us.


25W 35W 50W 60 Degree Adjustable LED Down Light Rotational Gimbal Aluminum Warm White 0


25W 35W 50W 60 Degree Adjustable LED Down Light Rotational Gimbal Aluminum Warm White 1


25W 35W 50W 60 Degree Adjustable LED Down Light Rotational Gimbal Aluminum Warm White 2
