China LED Flat Panel Light manufacturer

Embedded Frameless Backlit LED Slim Panel Light 24Watt 4000k 2400lm 2 Years Warranty

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-ARL-PAL-12W/18W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Supply Ability: 4000pcs/day
Contact Now

Detail Information

Name: Slim LED Panel Light Feature: Frameless
Emitting: Back Lighting Material: Aluminum
CCT: 4000K Luminous Efficiency: 100LM/W
Warranty: 2 Years Power: 24W
High Light:

thin led light panel


ultra slim led panel light

Product Description

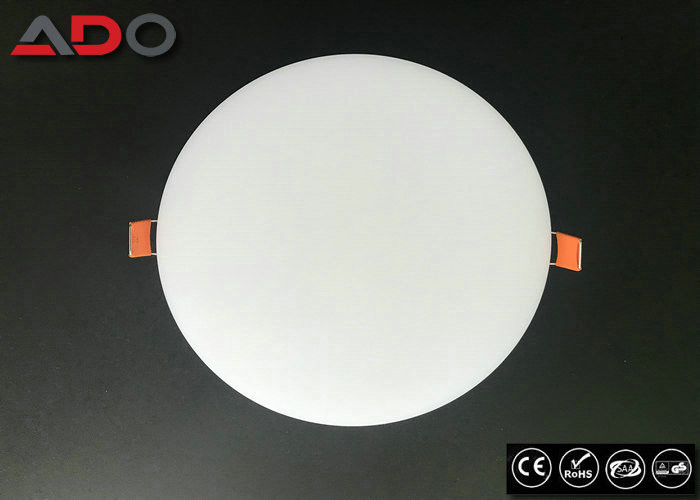

Embedded Frameless Backlit LED Slim Panel Light 24w 4000k 2400lm Aluminum



1. Latest Design of Frameless Backlit LED Slim Panel Light:


This new product is our latest design, it is frameless, there is no outter ring, it is a high light transmittance diffuser which can bring soft and uniform lights. This is very different from the market common led panel light. Creative and latest products are very attractive, many customers want to have a try.


The emitting mode is back lighting, it is leds on the aluminum PCB board, not the same as side lighting. This is not only can save the cost of light guide plate, but also can bring high light luminous efficiency, 24w led panel light could have at least 2400LM, very brightness.



2. 24w 36w LED Slim Panel Light Technical Data:


Model AD-ARL-PAL-24w AD-ARL-PAL-36w
Power 24W 36W
Size D175*H20mm D225*H20mm
Lumen 2400LM 3600LM
Cutout 155mm 205mm
LED Chip 240LED*SMD2835 360LED*SMD2835
Feature 1. Isolated wide voltage Driver
2.CRI: ≥80
3.Light Efficary: ≥100LM/W
4.warranty: 2 years
5.Ordinary color packaging
6.Voltage: AC85-265V
7. LED Brand: Epistar
8. Installation: Recessed Mounted
9. Shape: Round Square


3. LED Panel Light Application:


Commercial Applications: Showrooms • Apparel Stores • Bookstores • Office Supply and Stationary Stores • Offices • Hallways • Cafeterias • Waiting Rooms and more

Residential Applications: Kitchens • Bathrooms • Rec Rooms • Finished Basement Areas



4.  About Customized Services:


1. Slim led panel light back side could be labeled with your logo / brand and company information, this is for free. Also we could laser print your customized information, this need to be paid based on your order quantity. Please inform us when you place order.


2. The inner box could be customized with your box design, white box or colorbox is available. If order quantity is more than 5000pcs, your box design customized service is free, no extra charges. If you don't want box design, we could put label with your logo on the box.


3. The outer carton also could be customized with your logo, or only put label on it.


4. LED Chips Brand: If you want to use Chinese San'an led chips or imported Osram led chips or some other famous brands, all we can provide for you. It is based on your needs, and the CRI such as 70Ra, 80Ra or 90Ra, and the luminous efficiency 80Lm/W, or 100LM/w, these special requirements all can be customized according to your request.


5. LED drivers Brand: Lifud led driver, led driver, or dimmable led driver. we can change the drivers to meet different customer's high qualiy needs, Lifud led driver will have 3 years warranty, led driver can has 5 years warranty.



5. Frame-less LED Panel Light Advantages:


ADO New product frame-less led panel light is our factory own module. It is different from old led panel light. The difference are:

(1) The front housing is PC material with 88% lighting transmittance, bring soft light.

(2) The emitting lighting is backlit, a round alumium PCB with leds.

(3) Luminous efficiency is up to 110LM/W, 12w lumen is 1320LM, 18w lumen is 1980LM.

(4) Back side housing is aluminum, good heat dissipation.

(5) It is with out Light Guide Plate(LGP), save material cost, makes products more competitive.

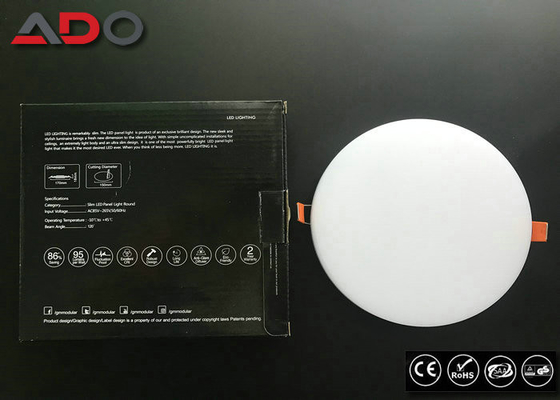

6. Packaging:

Power Quantity Carton Size G.W
12W 50PCS/CTN 65*28*20cm 12KG/CTN
18W 40PCS/CTN 38*33*32cm 9KG/CTN
24W 30PCS/CTN 58*44*23cm 11KG/CTN
30W 20PCS/CTN 54*38*28.5cm 13KG/CTN

Embedded Frameless Backlit LED Slim Panel Light 24Watt 4000k 2400lm 2 Years Warranty 0

Embedded Frameless Backlit LED Slim Panel Light 24Watt 4000k 2400lm 2 Years Warranty 1
