China LED Flat Panel Light manufacturer

Office Rimless LED Silm Panel Light 18W 24W 36W Recessed Back Lighting

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-RM-RL-PAL
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Supply Ability: 4000pcs/day
Contact Now

Detail Information

Power: 12w 18w 24w 36w LED Driver: Isolated IC Wide Voltage
CCT: 6000K Installation: Recessed Mounted
Application: Home Office Shop Emiting: Back Lighting
Test Report: EMC LVD Type: Latest Rimless
High Light:

thin led light panel


ultra slim led panel light

Product Description

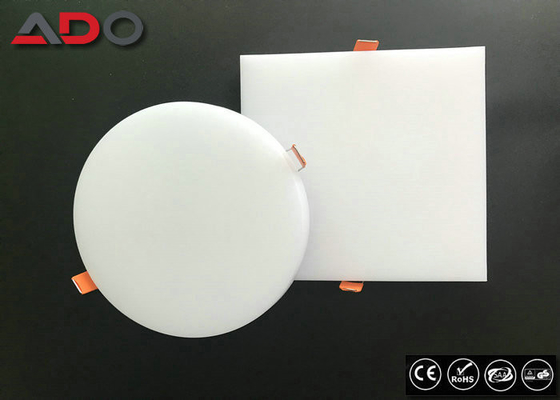

Rimless led silm panel light 12w 18w 24w 36w 6000K recessed back lighting



1. Description:


Rimless led panel light is our newest product for our customer who need creative product. There are several difference:


1. The outter housing is PC diffuser, no aluminum outter ring, so we call "rimless". which makes the lighting area is more bigger than ordinary panel light. The lighting area is 100%, more light can be came out from this new rimless led panel light.


2. The emitting mode is back lighting, no the same as traditional side lighting, back lighting mode can generate higher luminous efficiency.


3. The power range is 12w, 18w, 24w and 36w. More optional for you to choose.


4. This product is for Europe market, South American, and Middle East countries.



2. Specification:


Model Shape Emitting Size(D*H) Cutout Total
LED Type
AD-RM-RL-PAL-12W Round Back
Φ90*H16mm Φ70mm ±1320LM SMD2835*84PCS
AD-RM-RL-PAL-18W Φ120*H16mm Φ105mm ±1980LM SMD2835*144PCS
AD-RM-RL-PAL-24W Φ170*H16mm Φ155mm ±2540LM SMD2835*240PCS
AD-RM-RL-PAL-36W Φ225*H17mm Φ205mm ±3520LM SMD2835*360PCS
AD-RM-RL-SPAL-12W Square 90*90*H16mm 70*70mm ±1320LM SMD2835*96PCS
AD-RM-RL-SPAL-18W 120*120*H16mm 105*105mm ±1980LM SMD2835*162PCS
AD-RM-RL-SPAL-24W 170*170*H16mm 155*155mm ±2540LM SMD2835*264PCS
AD-RM-RL-SPAL-36W 225*225*H17mm 205*205mm ±3520LM SMD2835*396PCS

3. Details:


1. Voltage is AC85-265V for world's standard voltage.

2. LED Brand is from Taiwan famous Epistar band.

3. LED Chip is SMD2835, each chip lumen is 26-28LM, power is 0.2w.

4. CRI>80RA which can see the objects real color

5. CCT could be selected from warm white 3000K, neutral white 4000K, and cool white 6000K.

6. Luminous efficiency is up to 95-110LM/W, it is higher than common products.

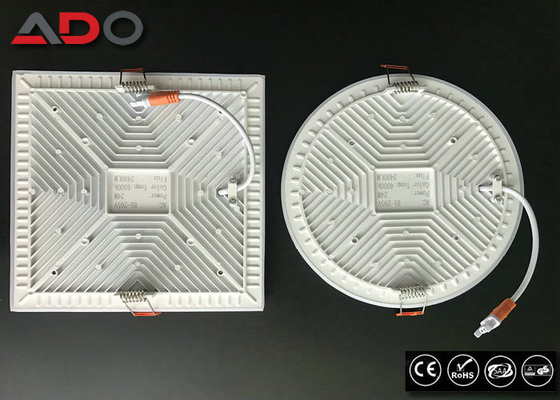

7. Material: Aluminum+PC Diffuser, back side is aluminum, front side is PC.

8. LED Driver project is Isolated IC constant current with wide voltage, stable and long life.


9. We provide 2 years warranty for this new rimless led panel light, any defective products during warranty period can be exchanged.

10.This panel light led installation is very easy, it is recessed mounted like the common slim led panel light.



4. ​ Caution:


1. Confirm that this product is no damage during he transportation before using


2. Put away from the children, prevent the accessories causing some damage to the children. Don’t let the children touch the lamp when it is working.


3. No anything else covering the products.


4. Only professional person can repair or tear down this products. We have the authority to refuse giving any warranty to the products which are repaired without our instruction.


5. Before cleaning the lamps, please switch off thr power, using dry cloth to clean and don’t use any chemical or corrosive material
