China LED Flat Panel Light manufacturer

Frame Less LED Slim Panel Light PC 12 Watt 3000K 6000K 0.9PFC Square Shape

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-RM-RL-PAL
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Supply Ability: 4000pcs/day
Contact Now

Detail Information

Power: 12w 18w 24w 36w CCT: 6000K 3000K
Application: Home Office Shop Test Report: EMC LVD
Design: Frame-less Name: Slim LED Panel Light
Shape: Square PFC: 0.9
High Light:

thin led light panel


ultra slim led panel light

Product Description


Frame less LED Slim Panel Light PC 12 Watt 3000K 6000K 0.9PFC Square



1. Technical Data Sheet:


Product Number AD-RM-RL-SPAL-12W
Light Source LED SMD2835, 0.2W, 24-26LM, 84leds
Power 12W
Luminous Flux 110LM/W
Input AC85-265V
Color Temperature 3000-3500K / 4000-4500K /6000-6500K
Dimming No
Working Temperature 55 degrees Celsius at room temperature 25 degree Celsius
Color Rendering Index CRI > 80
Beam Angle 180 degree
Dimension D90*H20mm
Cutout Size D70mm
Material Aluminum Alloy(back side)+PC(front side)
Surface Finish White
LED Driver Wide voltage IC constant current
Package Stardard packing box
Installation Recessed
Emitting Back Lighting
Certification CE ROHS
Warranty 2 years



2. Details:


1. Luminous efficiency is up to 95-110LM/W, it is higher than common products.

2. Material: Aluminum+PC Diffuser, back side is aluminum, front side is PC.

3. LED Driver project is Isolated IC constant current with wide voltage, stable and long life.


4. We provide 2 years warranty for this new rimless led panel light, any defective products during warranty period can be exchanged.

5.This panel light led installation is very easy, it is recessed mounted like the common slim led panel light.


6. Voltage is AC85-265V for world's standard voltage.

7. LED Brand is from Taiwan famous Epistar band.

8. LED Chip is SMD2835, each chip lumen is 26-28LM, power is 0.2w.

9. CRI>80RA which can see the objects real color

10. CCT could be selected from warm white 3000K, neutral white 4000K, and cool white 6000K.



3. Description:


Rimless led panel light is our newest product for our customer who need creative product. There are several difference:


1. The outter housing is PC diffuser, no aluminum outter ring, so we call "rimless". which makes the lighting area is more bigger than ordinary panel light. The lighting area is 100%, more light can be came out from this new rimless led panel light.


2. The emitting mode is back lighting, no the same as traditional side lighting, back lighting mode can generate higher luminous efficiency.


3. The power range is 12w, 18w, 24w and 36w. More optional for you to choose.


4. This product is for Europe market, South American, and Middle East countries.



4. Quality Control:


1. Our professional, experienced engineers from Taiwan and skilled, hard-working workers ensure the quality of our products.

2. Systematic working rules guarantee our efficiency and the goods can be delivered to our clients on time.


3. We have satisfactory after-sale services available when you need.

4. Our strict quality control promises the stability and high quality of our products.


5. Caution:


1. Please use the product according to the specifications, make sure the input voltage is within the prescribed scope.

2. Only professionals can open this product.

3. Please use the product in environment of the specifications, do not use product in rainwater, outdoor or high humidity environment.

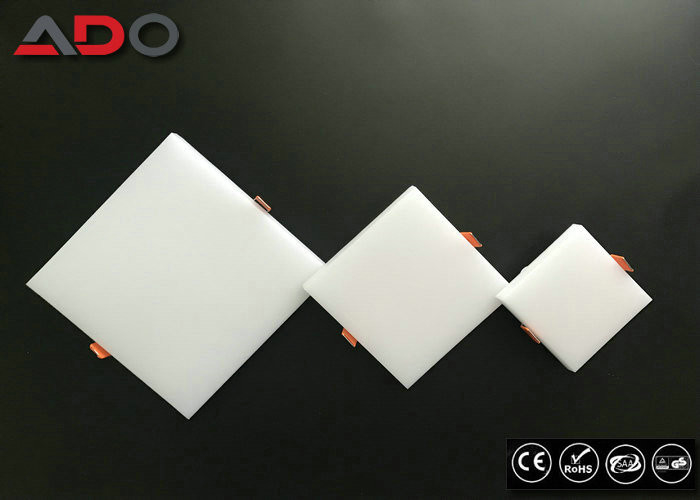

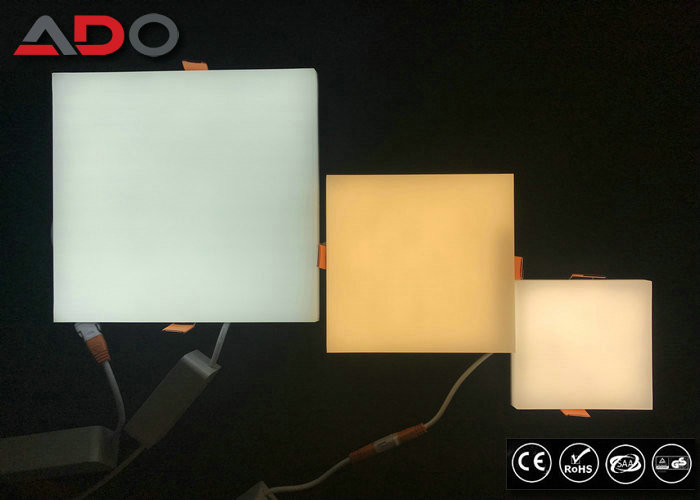

Frame Less LED Slim Panel Light PC 12 Watt 3000K 6000K 0.9PFC Square Shape 0Frame Less LED Slim Panel Light PC 12 Watt 3000K 6000K 0.9PFC Square Shape 1
