20 W SMD PC White LED Bulkhead Ip65 85- 265V AC / Oval Bulkhead Light

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-MP-01-20W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information
Power: 20W Voltage: 85- 265V AC
CCT: 3000-6000K Housing Color: White Black
Warranty: 2 Years IP Grade: IP65
Market: Europe Material: PBT+Aluminum
High Light:

wall mounted bulkhead light

,

exterior bulkhead lights

Product Description

High Quality 20W SMD IP65 Waterproof PC White Wall Mounted Outdoor Lamp Bulkhead Light LED



1. Specification:



Model AD-MP-01-24w AD-MP-01-20w AD-MP-01-15w
Size(mm) 270*145*78 270*145*78 210*110*65
Power 24W 20W 15W
Chip SMD2835 SMD2835 SMD2835
Chip Qty (pcs) 120 100 75
IP Rating IP65
Lumen 120LM/W or 80LM/W
CRI >70 or >80
Color
Temperature		 3200-6500K 3200-6500K 3200-6500K
Housing Color white/black
Material PBT+Aluminum
LED Driver IC Constant smart driver
LifeSpan 50000 Hours
Warranty 2 years
Certificate CE RoHS EMC LVD 3C FC




2. Features:

1. Material: PBT, excellent insulation performance, good heat aging resistance

2. LED Chip: Taiwan Epistar brand, 0.2w/smd, 22-24LM, high lumen, low decay, long lifespan

3. LED driver: IC constant current, Aishi electrolysis 10000 hours, stable quality

4. Double color add $0.8/pcs; sound light control add $0.8/pcs; PIR sensor add $1.9/pcs

5. Warranty: 2 years


3. Advantages:

1. Waterproof, dustproof and anti-corrosion.

2. This lamp circuit board for anticorrosive, waterproof, prevent oxidation treatment, reduces the power inverter working temperature, the high voltage isolation protection way, splice double insulation treatment, to ensure the safe and reliable.

3. According to the actual working environment of the three-proof lamp, the surface of the protection box of the lamp is sprayed with nano-spray anti-moisture anti-corrosion treatment, and the dust and water entry are eliminated





4. Product details:

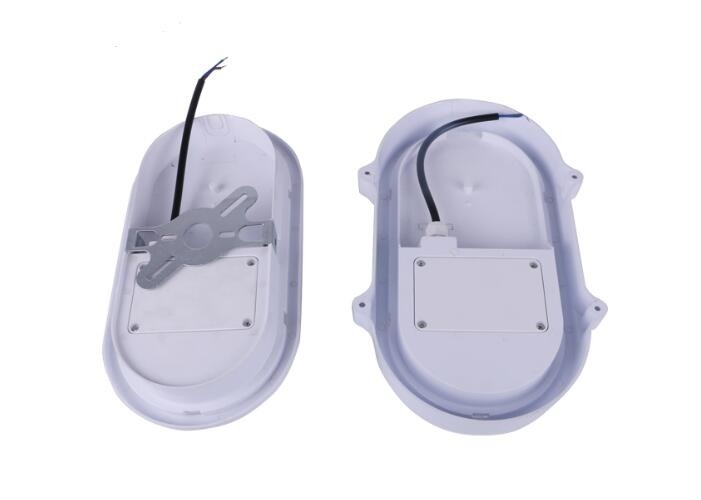

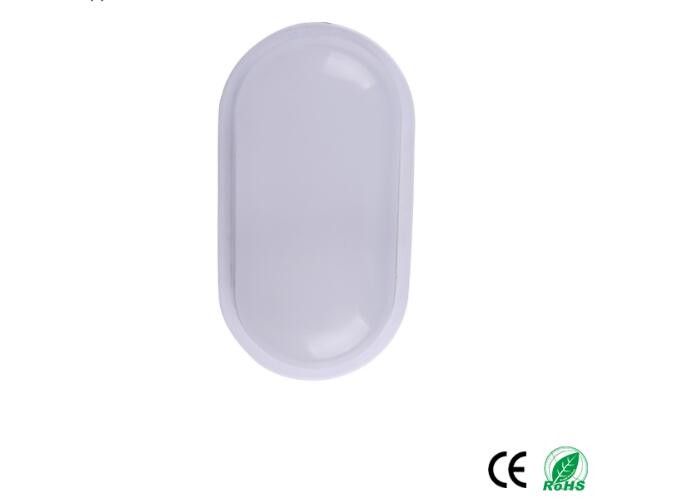

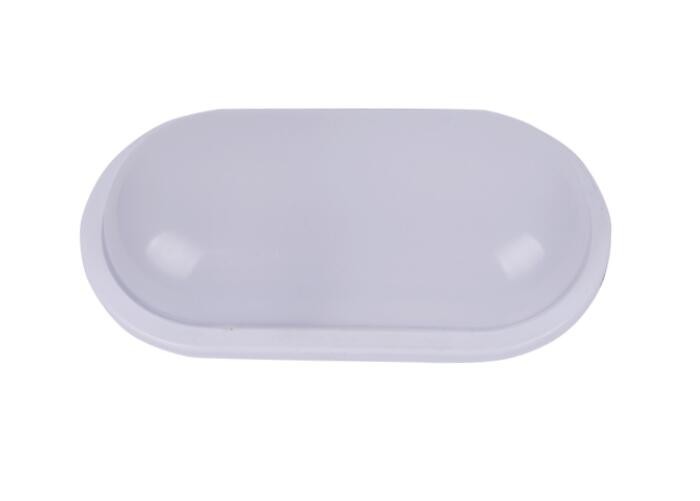

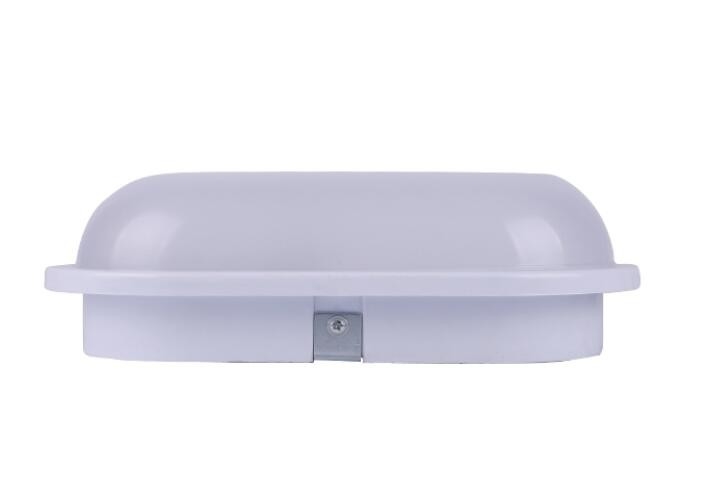

20 W SMD PC White LED Bulkhead Ip65 85- 265V AC / Oval Bulkhead Light 0



20 W SMD PC White LED Bulkhead Ip65 85- 265V AC / Oval Bulkhead Light 1

20 W SMD PC White LED Bulkhead Ip65 85- 265V AC / Oval Bulkhead Light 2

20 W SMD PC White LED Bulkhead Ip65 85- 265V AC / Oval Bulkhead Light 3
