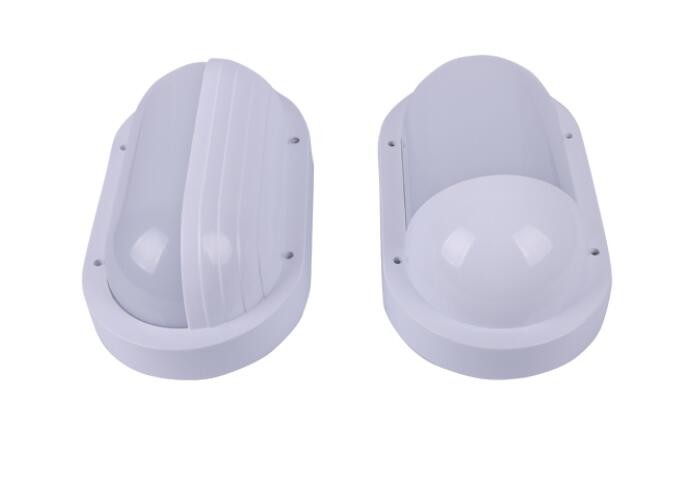

External Waterproof IP65 SMD Wall Mounted Bulkhead Light With 2 Years Warranty

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-MP-08-15W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information
Housing Color: White Black Installation: Wall Mounted
LED Brand: Epistar SMD2835 5630 LED Driver: IC Constant Current
CCT: 3000K 4000K 6000K Shape: Oval
Warranty: 2 Years IP Level: IP65
High Light:

led bulkhead light

,

exterior bulkhead lights

Product Description

Outdoor Waterproof Ip65 Smd Wall Mounted Bulkhead Light Led Lamp External Wall Light



1. Specification:



Item No. Description Package Detail
AD--MP-09 Wattage 16W (MAX)
Input Voltage AC85-265V
Light source LED
Lamp Luminous Efficiency(lm/w) 80LM/W
Lamp Luminous Flux(lm) 1280
Color Temperature(CCT) 2700~6500k
LED Chip Epistar
Emergency Function Optional
LED Type SMD 5630
Working Temperature(℃) -15~45℃
Ingress Protection IP65
Size 170*115*78
Mechanical Protection IK09
Warranty(Years) 3 years





2. Description:

The latest high quality engineering outdoor wall light (explosion-proof light), or can be called as IP65 led bulkhead lamp, it can be used for for patios, walls, balconies, garages, underpasses, warehouses, freezer, stairs, fire exits and more. It adopts high thermal conductivity aluminum substrate and high brightness 2835 lamp bead, constant current drive, longer life and higher brightness. Meets the standards of IP65 and IK09. Long-term sun exposure lamp body does not yellow, does not oxidize.


3. Features:

1. Material: PBT, excellent insulation performance, good heat aging resistance

2. LED Chip: Taiwan Epistar brand, 0.2w/smd, 22-24LM, high lumen, low decay, long lifespan

3. LED driver: IC constant current, Aishi electrolysis 10000 hours, stable quality

4. Double color add $0.8/pcs; sound light control add $0.8/pcs; PIR sensor add $1.9/pcs

5. Warranty: 2 years


4. Advantages:

1. Waterproof, dustproof and anti-corrosion.

2. This lamp circuit board for anticorrosive, waterproof, prevent oxidation treatment, reduces the power inverter working temperature, the high voltage isolation protection way, splice double insulation treatment, to ensure the safe and reliable.

3. According to the actual working environment of the three-proof lamp, the surface of the protection box of the lamp is sprayed with nano-spray anti-moisture anti-corrosion treatment, and the dust and water entry are eliminated





5. Application:



1. Enclosure wall;
2. Cellar wall;
3. Corridor wall;
4. House wall etc.

5. Stair,

6. Hotel

7. Kitchen

8. Showcase





6. Product details:

1. Power is adjustable. It can be maximum 30W according to heatsink.
2. Chip are optional, Citizen/CREE/BridgeLux/Epistar/Sanan; CRI>80 or CRI>90.
3. Dimmable driver are optional. It can be Triac/PWM 0~10V optional.
4. Max Lumens efficiency: 110lm/w, CRI are >70Ra, >80Ra and >90Ra optional. 3-year warranty.
5. Emergency Function is optional.



External Waterproof IP65 SMD Wall Mounted Bulkhead Light With 2 Years Warranty 0

External Waterproof IP65 SMD Wall Mounted Bulkhead Light With 2 Years Warranty 1

External Waterproof IP65 SMD Wall Mounted Bulkhead Light With 2 Years Warranty 2

External Waterproof IP65 SMD Wall Mounted Bulkhead Light With 2 Years Warranty 3

External Waterproof IP65 SMD Wall Mounted Bulkhead Light With 2 Years Warranty 4



External Waterproof IP65 SMD Wall Mounted Bulkhead Light With 2 Years Warranty 5
