Restaurant LED Spot Bulbs 5 W DC12V Warm White 3000K 80Ra 500LM 90LM/W

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-SP01-5W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 100 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

LED Type: 1W High Power Dimming: Yes
Luminous Efficiency: 90LM / W Material: Aluminum
Base: DC212V Wattage: 5W
CCT: 3000K CRI: 80Ra
High Light:

energy saving light bulbs


led spotlight bulbs

Product Description

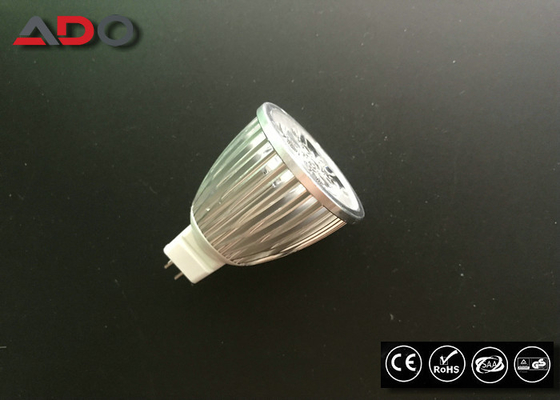

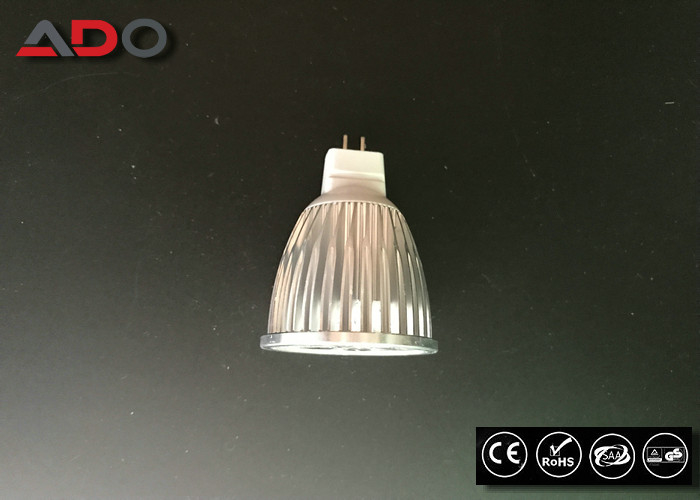

LED Spot Bulbs 5W MR16 Dimmable DC12V Warm White Aluminum 3000K 80Ra 500LM



1. Description:


Our this item number AD-SP101 is sliver houing with 1W high power led chip, housing material is aluminum, which is good for heat dissipation. The led chip is Taiwan Epistar brand with 80RA, power can make 3w, 5w and 7w, luminous efficiency is about 80-90LM per wattage. And the base can make MR16, E27 and GU10, this led spot light beam angle is 60 degree. Dimmable version and non dimmable version are optional.



2. LED Spot Light Specification:


Input Voltage: AC85-265V
Input Power: 5W
LED Type: 1pcs*5W
Luminous Flux: 400-500LM
Color Temperature: 2700K-5000K
CRI: 80Ra (90Ra can customize)
Lifetime: 40,000-50,000hours
IP Rating: IP20
Housing Color: Sliver
Beam angle :  60° / 45° / 30°



3.  Technical Data:


Model number AD-SP01-5W
Power 5W
Lumen 500LM
Input voltage DC12V
Base MR16
LED brand Epistar
LED light source 5W
LED Quantity 1pcs
Beam Angle 60 degree
LED Type 1W high power led
Certificate CE RoHS
LED Lumen 90-100LM/W
Color temperature(K) 2700K 4000K 6000K
CRI(Ra) 80Ra
Shell material Aluminum
Lamp Size(mm) 50*85mm
IP rating IP20
Life span(hour) 30000 hours
Warranty 2 years
Place of Origin China
LED Driver IC constant current
Dimmable Yes



4. Quick Details:


A.  3W Replacing 25W halogen lamp

B.  High efficient LED light source--- COB LED Chip from Taiwan Epistar

C.  With GU10 / MR16 /E14 / E27 different lamp bases

D.  Color rendering index of 80Ra and 90lm/W

E.  Long life properties--lowers maintenance costs by reducing re-lamp frequency

F.   Warranty 2 years

G.  CE RoHS EMC LVD certificate approved

H.   Long life span with 30000 hours



5. Application:

LED Spot bulbs light are suitable for indoor lighting in hotels, bars, western restaurants, cafes, home interiors, etc. They can directly replace the original ordinary fluorescent lamps and have higher brightness.



6.  Different base dimension:


E14 : 50mm( diameter) X78mm(length)

E26 : 50mm( diameter) X 62mm( length)

E27 : 50mm (diameter) X 63.2mm (length)

MR16 : 50mm( diameter) X 53mm( length)

GU10 : 50mm ( diameter) X 62mm ( length)

GU5.3 : 50mm ( diameter) X 63mm ( length)



7. RFQ:


Q1. Are you a manufacturer or a trading company?

A1. We are a factory in Guangzhou, with OEM&ODM&Customization available.


Q2. Do you have the ability to do independent research and development?

A2. Five people in the engineering department support our company to do independent research. And willlaunch new products on a regular basis.


Q3. Can you give us a favorable discount ?

A3. Of course, a favorable discount will be offered if the quantity is sizable.


Q4. Are your products conforming to our standards?

A4.Yes,  our products pass the testings as you require, e.g.:CE, RoHS,etc.


Q5. How do you control the quality ?

A5. We control the product quality by IQC, three tests on production lines, and 100% aging testing before packaging.
