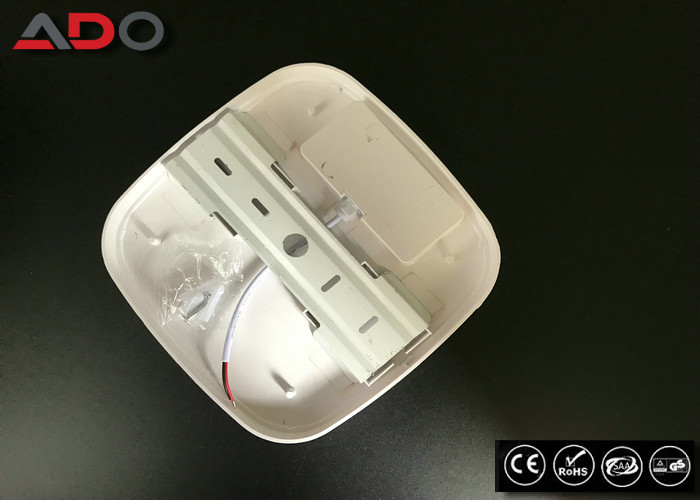

Surface Mounted 2400LM PC 24w 200mm Led Bulkhead Lights

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: EMC CB ROHS CE FCC 3C
Model Number: AD-002-24U-S
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Input Voltage: AC85-265V Warranty: 2 Years
CCT: 3000K 4000K 6000K Power: 24W
Shape: Square Lumen: 2400LM
Material: PC+PC LED Chip: SMD2835
LED Quantity: 120pcs Product Name: LED Bulkhead Lamp
High Light:

Surface Mounted Led Bulkhead Lights


2400LM Led Bulkhead Lights

Product Description

led bulkhead lights square PC 24w 2400LM 3000K IP65 white color 200mm surface mounted

1. Product details:


1. Round and square shape for options

2. We have 3 power, 9w 15w and 24w.


3. Size: 125mm, 155mm and 200mm.


4. The height is 38mm.


5. We can use neutral color box to package the product, or we can customize box with your brand and logo.


6. There are 40pcs in one carton for 9w, 30pcs for 15w, and 20pcs for 24w.


7. Fixture color is available for white and black



2. Specification:


Name LED Bulkhead Lights
Voltage AC85-265V
Power 24W
LED Driver IC constant
LED Chip SMD2835
Chip Quantity 120
Chip Power 0.5w/SMD
Chip Brand Epistar
Total Lumen 2400LM
Luminous Efficiency >100LM/W
Color temperature 3000-6500K
CRI >80
Material PC+PC
Size 200*200*38
Installation Wall Mounted
Waterproof IP65
Life Span >50,000 hours
Warranty 2 years warranty
Certificate CE EMC CB RoHs


3. Description:
Are you tried of the same old design of the led bulkhead lamp?
I think you will definitely say yes, now here is our latest style led bulkhead lamp, which is the best choise for you to change a new life style.
These are several features which will surprise you a lot:
1. Slim and nice shape, round and square types are available.
2. Fixture color is white, also can customize black color. White color also brings a lovely and simple design feeling.
3. LED Bulkhead lamp material is PC+PC, which is resist-high temperature. Not like other products use PP material which is not good as PC. PC materila is higher quality than PP material. When you touch the PC material, you can feel the smooth texture.
4. Model and unique design of led bulkhead lamp can keep you always at the forhead of the fashion.
Surface Mounted 2400LM PC 24w 200mm Led Bulkhead Lights 0
Surface Mounted 2400LM PC 24w 200mm Led Bulkhead Lights 1
4. LED Bulkhead Lamp advantags:

1. Modern Design
2. High efficiency of LED technology.

3. IP65 Waterproof

4. Fit for Indoor Rooms and Outdoor Space.

5. Energy saving and environmental protection.
5. Application:
This fashionable led bulkhead lamp light is perfect for a utility area, such as the laundry, garage, basement or storage room.
It's also greatly suitable to your kitchen, bathroom, office, walk-in closet, pantry and many places where you needs a brighter ceiling light.
6. Features:

1. High quality IP65 LED bulkhead light is made of high quality PC+PC, high lumen SMD2835 and constant current driver, which make it anti-oxidation, not yellowing, longer life time and higher light efficiency. With concised design, it is suitable for many application. Meet IP65 and IK09 standard.
2. Power is adjustable. It can be maximum 30W according to heatsink.

3. Chip are optional, Citizen/CREE/BridgeLux/Epistar/Sanan; CRI>80 or CRI>90.

4. Dimmable driver are optional. It can be Triac/PWM 0~10V optional.

5. Max Lumens efficiency: 110lm/w, CRI are >70Ra, >80Ra and >90Ra optional. 3-year warranty.

6. Emergency Function is optional.


7. About us:

1. Ado Electronis Limited is one of the famours led lighting factory in China,


2. We aim to provide high quality product with reasonable price.


3. Our products are more competitive than most of the led lighting supplier.


4. We can provide customize services, such as customized  package box and carton, customized products.


5. Please do not hesitate to contact us at any time.
