China LED Flat Panel Light manufacturer

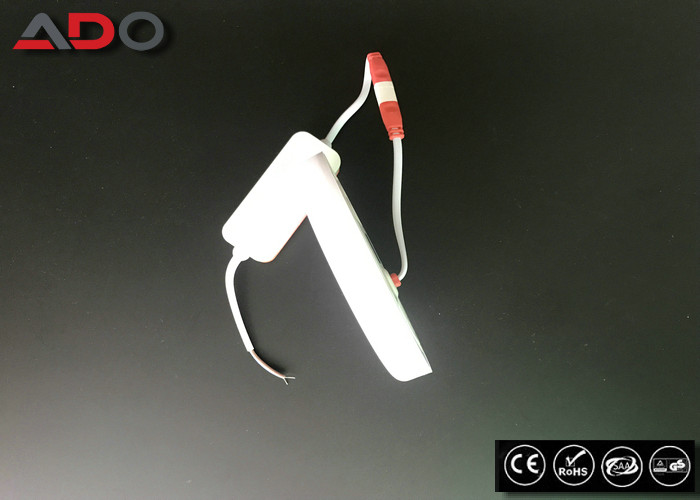

Commercial 24w PC SMD2835 LED Slim Panel Light 200mm Adjustable

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-PB-PAL-24W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Supply Ability: 4000pcs/day
Contact Now

Detail Information

Feature: Adjustable Cutout Size Application: Office, HOTEL, WAREHOUSE, Meeting Room
Shape: Round Square Ip Rating: IP40
Item Type: 18w Back Lighting Panel Light Working Lifetime(hour): 50000 Hours
Material: ABS+PS Power: 10w 18w 24w 36w
Lighting: Back Lighting Installation: Recessed, Embedded, Ceiling
High Light:

24w Embedded Ceiling Lights

,

6500K LED Slim Panel Light

Product Description

Free Cutout 70-200mm Adjustable 24w PC SMD2835 commercial led panel light



 1. Specification:



Model AD-PB-PAL-10W AD-PB-PAL-18W AD-PB-PAL-24W AD-PB-PAL-36W
Shape Round
Emitting Back Lighting
Size(D*H) Φ 90*H18 Φ120*H18 Φ170*H18 Φ225*H18
Cutout Φ70 Φ70 Φ100 Φ50 Φ80
Φ110 Φ150
Φ50 Φ80
Φ110 Φ150
Φ170 Φ200
Power 10W 18W 24W 36W
Total Lumen ±900LM ±1620LM ±2160LM ±2880LM
LED Type SMD2835*60PCS SMD2835*108PCS SMD2835*192PCS SMD2835*288PCS
Features



1. Voltage: AC85-265V


2. LED Brand: Epistar


3. LED Chip: SMD2835, 26-28LM, 0.2w


4. CRI>80RA


5. CCT: 3000K, 4000K, 6500K


6. Luminous efficiency: 90LM/W


7. Material: ABS+PS


8. LED Driver: 0.9PFC IC constant current


9. Warranty: 2 Years


10. Installation: Recessed Mounted


11. Adjustable cutout size


12. Free to Surface Mounted







2. Why i choose to buy led panel light from you?



If i am a customer, when i am going to buy a led panel light, there are several reasons i will consider:



First of all, high quality is very important for me, because as an electrical appliances, we need safety products, high quality panel light can guarantee the safety.



Secondly, the elegant design of the panel light will creat the beauty of life, a led panel light not only bring light, but also bring the joy of life.



Last but not the least, led panel light with 2 years warranty or 3 years warranty will give me confidence to buy it, sometimes if the lamp has problems, then i can change another new product which is free replacement.



3. Description of free cutout size led panel light:


Normal led panel light has a standard cutout size, for example, round led panel light diameter is 225mm, then the cutout size is 200mm.

But now we have many different cutout size which can meet for 225mm diameter. Our 225mm led panel light cutout size can be Φ50, Φ80, Φ110 , Φ150, Φ170, Φ200. It can meet many different traditional ceiling hole size.



Also this recessed led panel light can be convert to surface mounted led panel light with a frame. You can see from the following pictures:



 Commercial 24w PC SMD2835 LED Slim Panel Light 200mm Adjustable 0Commercial 24w PC SMD2835 LED Slim Panel Light 200mm Adjustable 1




3. Features of round led panel light:

1. Easy installation, it is recessed mounted, only need to connect the 2 wires of led driver with 220V wires.

2. Three different colors could be choosed, 3000K, 4000K and 65000K, meet all of your different needs.

3. Long life span with more than 30000 hours, it means you can use this round led panel light for more than 5 years.



4. It can be widely used for many places, such as home, office, shops, and supermarket.

5. Warranty is 2 years for this round led panel light, if any defective, free replacement for you at any time.


4. Packaging:



Power Quantity Carton Size G.W
12W 50PCS/CTN 65*28*20cm 12KG/CTN
18W 40PCS/CTN 38*33*32cm 9KG/CTN
24W 30PCS/CTN 58*44*23cm 11KG/CTN
30W 20PCS/CTN 54*38*28.5cm 13KG/CTN




5. Details:


These are our detailed information for led panel light parts, you can see the lamp body, the led PCB, the product design very clearly, these parts could show the good quality of our products, don't miss this good chance, please order it right now!



Commercial 24w PC SMD2835 LED Slim Panel Light 200mm Adjustable 2

Commercial 24w PC SMD2835 LED Slim Panel Light 200mm Adjustable 3



Commercial 24w PC SMD2835 LED Slim Panel Light 200mm Adjustable 4


6. Application:


 You can see that this round led panel light can be used for many places, meeting room, office, hotel and other places. With our high quality led panel light, these places looks more beautiful, it not only bring you the brightness, but also bring you the beauty of life.

Commercial 24w PC SMD2835 LED Slim Panel Light 200mm Adjustable 5
