Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ADO |
| Certification: | CE RoHS CB EMC |
| Model Number: | AD-IP54-R180-15W |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 |
| Packaging Details: | 20pcs one carton |
| Delivery Time: | 3-7 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000pcs |
|
Detail Information |
|||
| Power: | 15W | Voltage: | AC85~277V 50Hz |
|---|---|---|---|
| Material: | ABS | Lumen: | 100LM/W |
| CRI: | 80Ra | Protection Rank: | IP54 |
| Warranty(years): | 3 | Light Source: | LED |
Product Description
Product Description

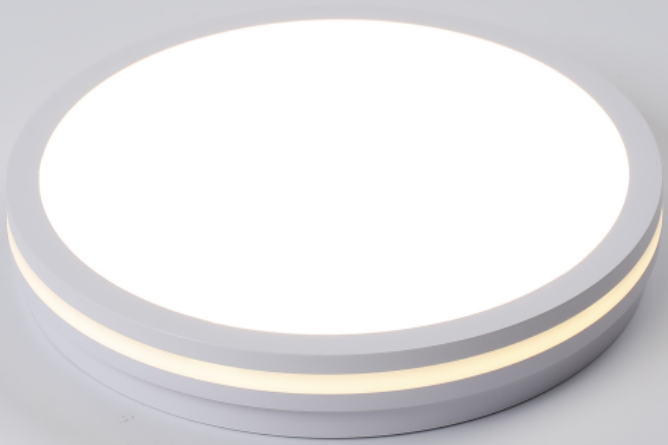

LED Slim Panel Light Featuring IP54 Waterproof Rating and Adjustable Color Temperature for Various Ceiling Applications
1. IP54 led ceiling panel light Optic&Electric Parameter :
| Shape | Model | Power | Body Size | Description |
| IP54 Round 3CCT Ceiling light | AD-IP54-R180-15W | 15W | D180*H32MM |
Lumen:100LM/W CCT:3 CCT CRI:Ra>80 PF:>0.5 Material:ABS Body color:White/Black |
| AD-IP54-R230-24W | 24W | D230*H32MM | ||
| AD-IP54-R300-30W | 30W | D300*H32MM | ||
| AD-IP54-R400-40W | 40W | D400*H37MM | ||
| AD-IP54-R500-50W | 50W | D500*H37MM | ||
| IP54 Square 3CCT Ceiling light | AD-IP54-S300-40W | 40W | 300*300*H32MM | |
| AD-IP54-S450-50W | 50W | 450*450*H37MM |
2. Features:
1. 3 colors can be changed by dial color switch

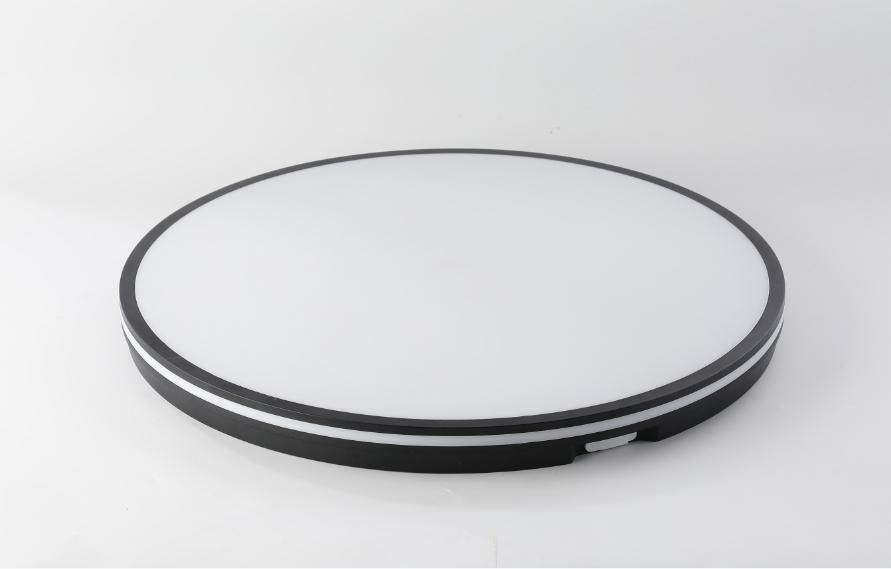

2. The fixture color can be white and black.
3. The color temperature is 3000K-6500K.
4. Installation: can be surface mounted and suspended mounted.
3 Colors changing by dial colors switch :

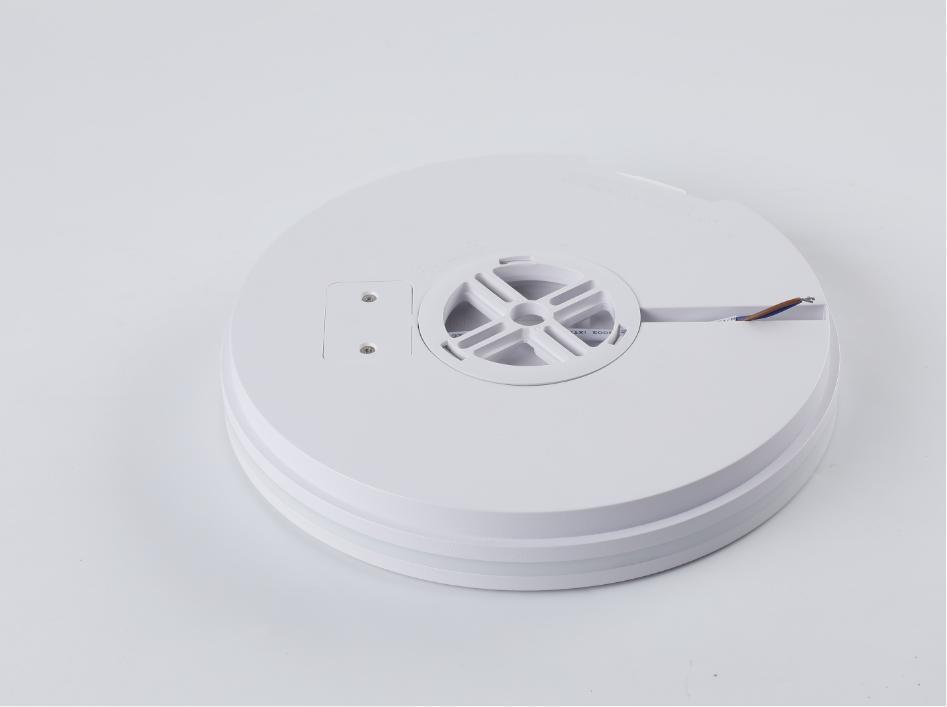

The dial color switch is on the back side of the lamp, you are free to change choose your favourite color
temeprature, the 3 colors are DL=6000K, NW=4000K, WW=3000K. It can help you to save stock.
