60cm T5 Led Replacement Tubes , Seamless 10w Led Tube Lights For Home

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-T5-600-10W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 5,000 pcs per day
Contact Now

Detail Information

Power: 10W Length: 60cm
Type: T5 Integration Seamless Lumen: 130LM/W
Material: Aluminum Voltage: DC24V
High Light:

led replacement tubes

,

led tube light

Product Description

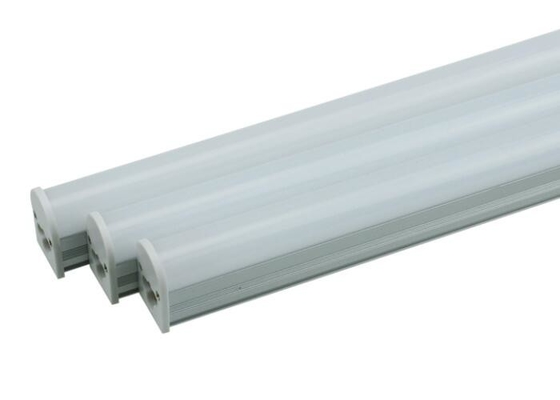

T5 Integration LED Tube Lamp 60cm 10W Aluminum Seamless 130LM/W CE UL DC24V





1. Description:



Our Integration T5 led tube lamp adopt Epistar SMD2835 led chips, one chip is 24-26LM, 0.2W. Which make the luminous efficiency is up to 100LM/W, also can customized 130Lm/W. The cover is clear cover and milky cover, clear cover light transmittance is higher than milky cover, but milky cover light is more soft and uniform. Input voltage is AC85-265V, also can customize DC12V and DV24V. The T5 led tube lamp housing is aluminum material, better heat dissipation with low heat. The led driver is IC constant currenct, longlife span and very safety driver solution, which is smart and intelligent led driver with low defective rate. For the warranty, we provide 2 years warranty, also can offer 3 years and 5 year warranty based on customer's different quality standard. The power is 5w for 30cm, 10w for 60cm, 15w for 90cm, 18w for 120cm, and 24w for 150cm. Color temperature is 2700-6500K. And it is seamless, or called linkable, 2 pcs led tubes could connect without gap.





2. Advantages:



1. Easy maintenance
In principle, anyone can replace a LED tube. In case of products based on the Retro-Fit installation approach, LED tubes contain all the electronics required, which means that in the event of LED tube failure, replacement or even fluorescent tube reinstallation is simple.

2. Electricity consumption
As compared to T8 fluorescent lamp technology, LED tubes can reduce electricity consumption by more than 50%. Installation and maintenance cost savings can also be expected, since the service life of LED tubes is typically 3-5 times longer than that of fluorescent lamps.

LED tubes constitute an excellent choice for cold room lighting, since the reduced heat generation allows additional savings through reduced refrigeration-related energy consumption.

3. Recyclability
At the end of their life cycle, LED tubes must be disposed of as recyclable waste electrical and electronic equipment, and the product manufacturer/importer is required to take care of recycling arrangement. In most cases, recycling service arrangement is outsourced to a nationwide operator and collection points are available at most localities. Manufacturer/importer-specific differences are possible in the arrangements. As opposed to fluorescent lamps, mercury or heavy metals are generally not used in LED tubes.





3. T5 LED Tube Lamp Specification:



Model Length Power Lumen Voltage CRI(Ra) LED Chips
AD-T5-30-5W 300mm 5w 500LM AC85-265V 80 Ra 24pcs
AD-T5-60-10W 600mm 10w 1000LM AC85-265V 80 Ra 48pcs
AD-T5-90-15W 900mm 15w 1500LM AC85-265V 80 Ra 72pcs
AD-T5-120-18W 1200mm 18w 1800LM AC85-265V 80 Ra 96pcs
AD-T5-150-24W 1500mm 24w 2100LM AC85-265V 80 Ra 120pcs





4. T5 led tube lamp technical data:



Power factor >0.9
Shell material Aluminum+PC
Cover color Milky / clear
IP rating IP44
Life span(hour) 30000 hours
Working temperature -30-70℃
Place of Origin China Guangzhou city
LED Driver Internal IC constant current
Luminous efficiency 100LM / W
Lamp Size(mm) 16mm diameter
IP rating IP44
Life span(hour) 30000 hours
Warranty 2 years warranty
Place of Origin China Guangzhou city
Color temperature(K) 3000K / 4000K / 6500K





5. Application:

1. Large-scale factories, production workshops, worktables, and office interior lighting;

2. underground parking, 24 hours use, saving considerable energy;

3. Hospital interior lighting;

4. Family lighting.
5. Shopping malls supermarket interior lighting;
6. School classroom lighting;

7. Warehouse

8. Subway, bus station, train station
